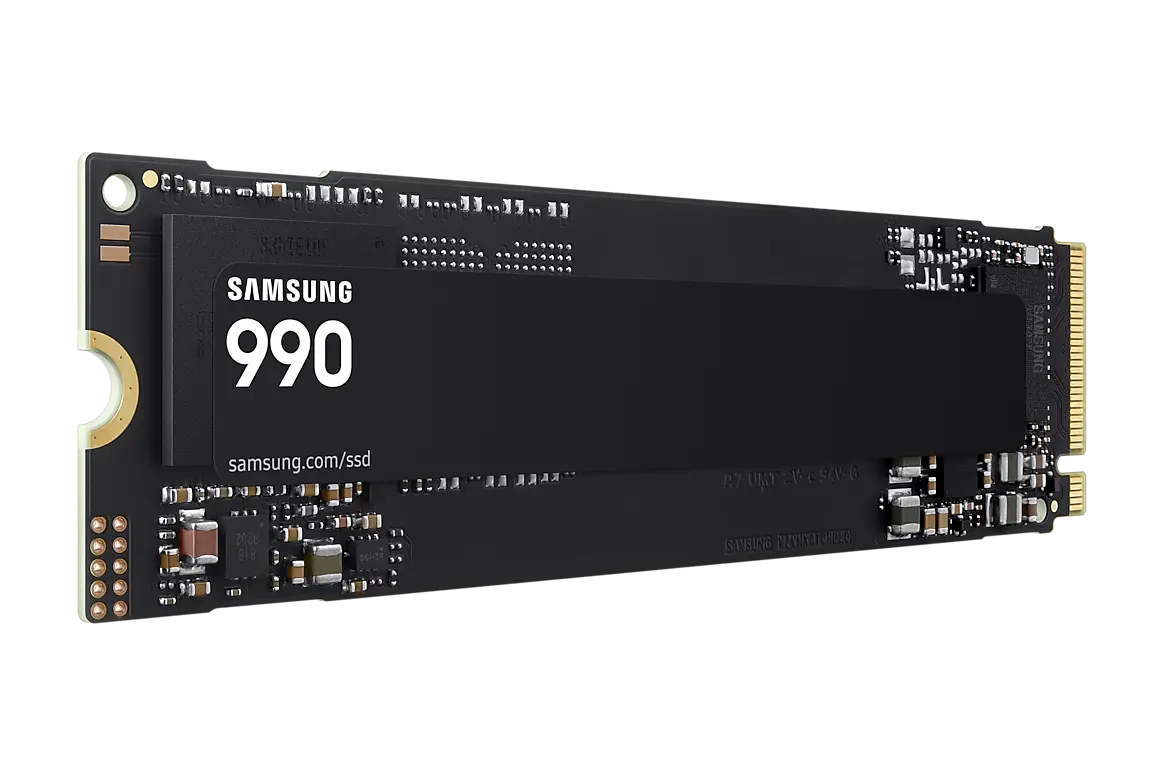

Samsung 990
2 TB · M.2 2280 without factory heatsink · Samsung part MZ-V9V2T0BW
- Capacity
- 2000 GB
- SSD / HDD
- SSD
- Form factor
- M.2 2280
Samsung's 990 is a 2 TB PCIe 4.0 x4 NVMe SSD in a bare M.2 2280 module, rated up to 7,250 MB/s read and 6,450 MB/s write. It uses Host Memory Buffer caching rather than a listed onboard DRAM cache, and its limited warranty runs 3 years or 800 TB written.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the Samsung 990 gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with Gigabyte AORUS Gen4 7300
Specifications checked 27 Sept 2026Manufacturer specifications, not a hands-on test.
The nearest checked drives by key specifications, with what differs from the Samsung 990. The first matches the Compare button above.
Gigabyte AORUS Gen4 73002 TB · M.2 2280 double-sided without heat spreader · AG4732TB N

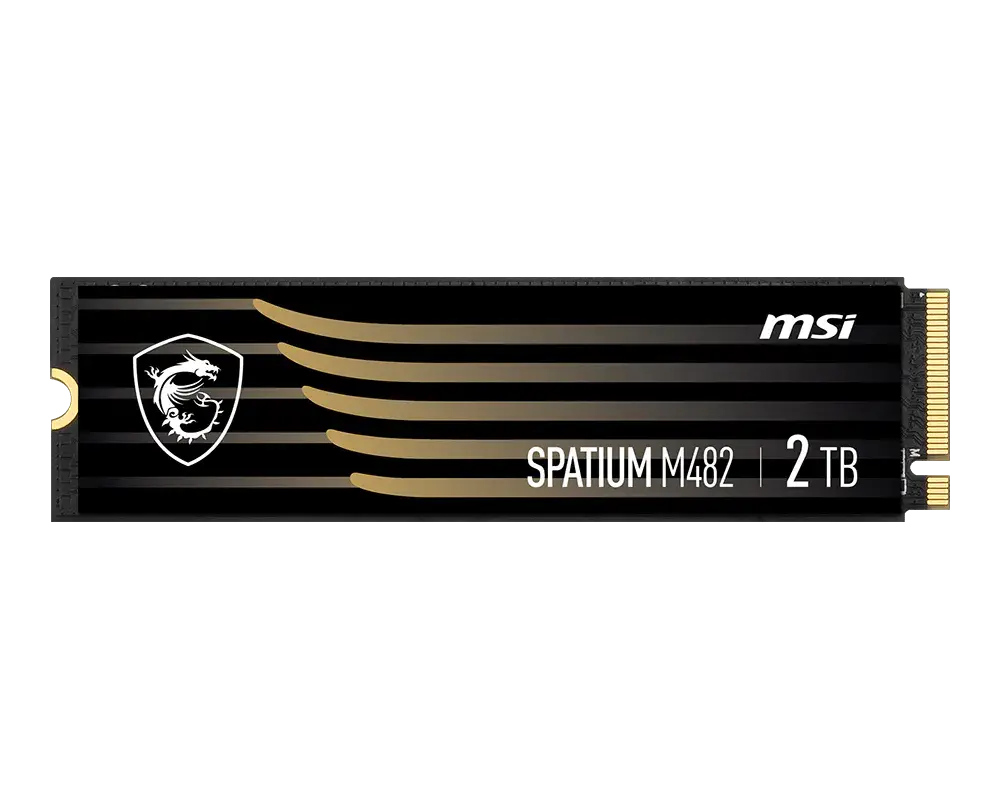

MSI SPATIUM M4822 TB · PCIe 4.0 NVMe M.2 2280 without heatsink- Rated sequential read
- 7300 MB/sThis one: 7250 MB/s
- Rated sequential write
- 6400 MB/sThis one: 6450 MB/s

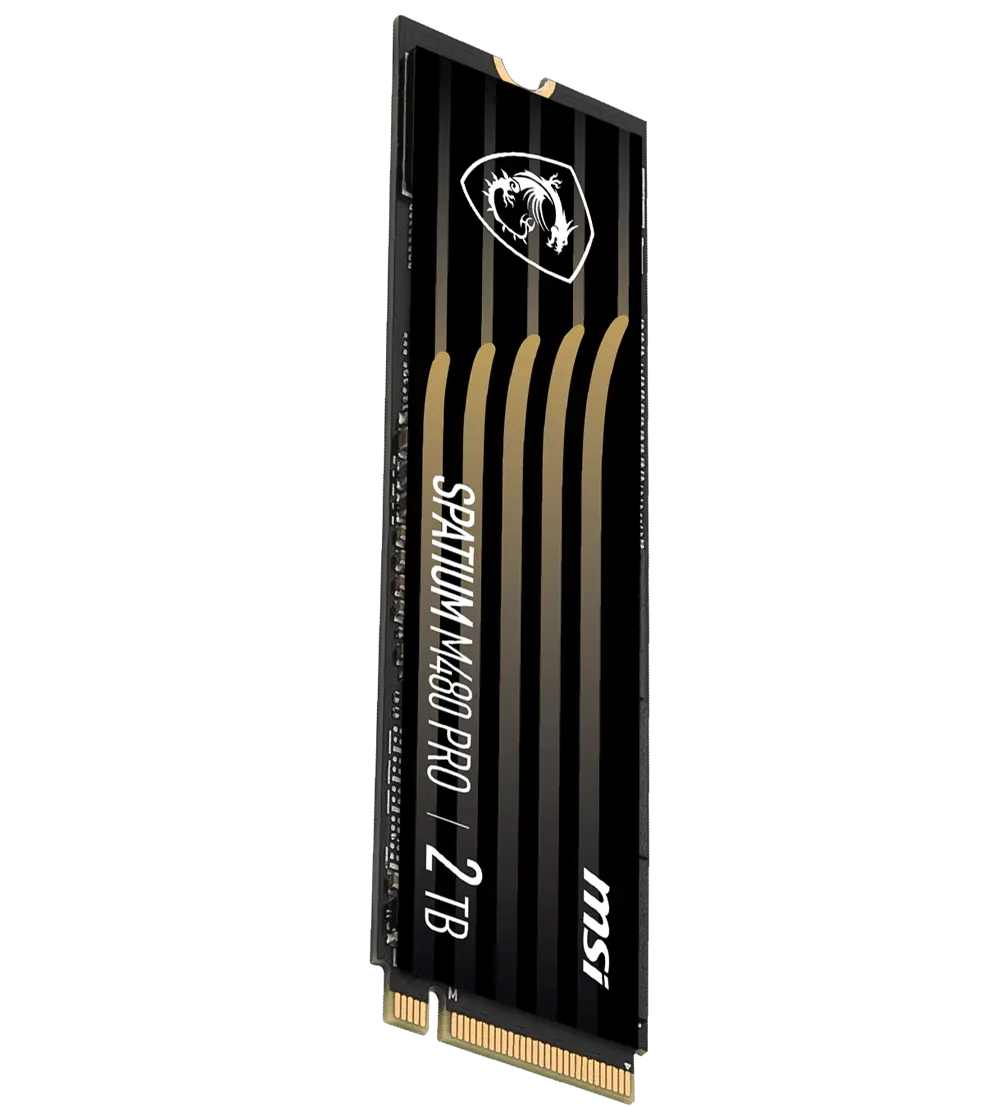

MSI SPATIUM M480 PRO2 TB · PCIe 4.0 NVMe M.2 2280 without heatsink- Rated sequential read
- 7400 MB/sThis one: 7250 MB/s
- Rated sequential write
- 7000 MB/sThis one: 6450 MB/s
Key strengths
Rated up to 7,250 MB/s sequential read and 6,450 MB/s sequential write, with up to 850K random read and 1.2 million random write IOPS at 2 TB.
Samsung lists AES 256-bit encryption with TCG Opal 2.0 and IEEE 1667, a 3 mW PS4 sleep state, and Samsung Magician support for data transfer, drive health and firmware updates.
Samsung claims up to 38% better sequential performance per watt than the 990 PRO in its own 2 TB test, and the drive is backward compatible with PCIe 3.0.
Before you buy
The limited warranty is 3 years or 800 TB written, whichever comes first.
Samsung specifies Host Memory Buffer caching and lists no onboard DRAM. Peak write figures use Intelligent TurboWrite, and no post-cache write speed is published.
Capacities stop at 2 TB, and Samsung does not state the NAND cell type.
Every specification. With its source.
Full specifications
Exact configuration: 2 TB · M.2 2280 without factory heatsink · MZ-V9V2T0BW
46 specifications in 7 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Capacity & format
14 items
- Capacity
- 2000 GB
Decimal capacity (1 GB = 1 billion bytes, IDEMA); formatted usable space is lower.
- SSD / HDD
- SSDSource
- Form factor
- M.2 2280
- Interface and version
- PCIe 4.0 x4; NVMe
Samsung states the 990 is backward compatible with PCIe 3.0. Host protocol and lane availability still determine actual operation.
- DRAM cache present
- Not listed by the manufacturer
Samsung does not state this for this model. · Samsung's tables specify HMB and do not state whether onboard DRAM is present. Host memory buffering is not onboard DRAM.
Source - Drive dimensions
- 80.15 × 22.15 × 2.38 mm
Samsung lists these as maximum dimensions. This version has no factory heatsink. · Samsung lists maximum width × height × depth for the bare module.
- NAND type
- Not listed by the manufacturer
Both reviewed exact technical sources say Samsung V-NAND without specifying the NAND cell type. TLC, QLC or another cell type is not established. Preserve the positive V-NAND technology separately.
- Cache arrangement
- Host Memory Buffer (HMB)
- Controller
- Samsung in-house controller
Samsung does not give a codename, stepping or process node.
- Earlier PCIe support
- PCIe 3.0
Data sheet footnote: backward compatible with PCIe 3.0. Host protocol and lane availability still determine actual operation and speed.
Source - Factory heatsink
- No
The UK specification lists a bare module with a maximum depth of 2.38 mm and no heatsink; the official gallery shows a bare module. A thermal label is not an enclosure.
Source - Maximum drive weight
- 9 g
UK 2 TB specification maximum, not package mass or a measured sample.
Source - NVMe interface protocol version
- 2.0
- NAND technology
- Samsung V-NAND
Performance
8 items
- Rated sequential read
- 7250 MB/s
Manufacturer up-to claims measured with IOmeter 1.1.0, Ryzen 9 7950X, ASRock X670E Taichi, 32 GB DDR5-4800 and Windows 11 Pro. Secondary drive in a fan-cooled desktop; writes use Intelligent TurboWrite within a specific transfer size. Firmware, host and workload affect results; Samsung does not list a post-cache write speed.
- Rated sequential write
- 6450 MB/s
Manufacturer up-to claims measured with IOmeter 1.1.0, Ryzen 9 7950X, ASRock X670E Taichi, 32 GB DDR5-4800 and Windows 11 Pro. Secondary drive in a fan-cooled desktop; writes use Intelligent TurboWrite within a specific transfer size. Firmware, host and workload affect results; Samsung does not list a post-cache write speed.
- Rated performance and conditions
- Up to 7250 MB/s sequential read; up to 6450 MB/s cached sequential write
Manufacturer up-to claims measured with IOmeter 1.1.0, Ryzen 9 7950X, ASRock X670E Taichi, 32 GB DDR5-4800 and Windows 11 Pro. Secondary drive in a fan-cooled desktop; writes use Intelligent TurboWrite within a specific transfer size. Firmware, host and workload affect results; Samsung does not list a post-cache write speed.
- Rated random read
- 850000 IOPS
Manufacturer up-to claim for the 2 TB column (queue depth and block size not stated in the datasheet). IOmeter 1.1.0, Ryzen 9 7950X / X670E Taichi, 32 GB DDR5-4800, Windows 11 Pro, fan-cooled secondary drive; write results use Intelligent TurboWrite.
- Rated random write
- 1200000 IOPS
Manufacturer up-to claim for the 2 TB column (queue depth and block size not stated in the datasheet). IOmeter 1.1.0, Ryzen 9 7950X / X670E Taichi, 32 GB DDR5-4800, Windows 11 Pro, fan-cooled secondary drive; write results use Intelligent TurboWrite.
- Rated random read, QD1
- Not listed by the manufacturer
Samsung does not state this for this model. · Samsung's 2 TB page and data sheet do not list QD1 results.
Source - Rated random write, QD1
- Not listed by the manufacturer
Samsung does not state this for this model. · Samsung's 2 TB page and data sheet do not list QD1 results.
Source - Write-buffer technology
- Intelligent TurboWrite
Manufacturer write caching is active for peak write claims and operates only within a specific data transfer size. Samsung does not list the buffer capacity or post-cache write speed for this 2 TB model.
Endurance & warranty
5 items
- Warranty write threshold
- 800 TB
Warranty write threshold for the 2 TB capacity (1 TB model: 400 TB), in compliance with JESD218; not a guaranteed failure point.
- Limited warranty time
- 3 years
Time limit, not a lifespan prediction. Coverage also ends at the TBW threshold; eligibility and full terms apply.
- Warranty terms and endurance if applicable
- 3 years or 800 TB written, whichever comes first; limited-warranty terms apply
- Manufacturer application scope
- Client PCs
Manufacturer application class; no enterprise or console installation guarantee.
- Manufacturer MTBF rating
- 1,500,000 hours
Statistical manufacturer claim, not individual lifespan or guaranteed operating time.
Power
6 items
- Published power conditions
- 4.3 W average active read; 3.8 W average active write; 55 mW PS3 idle (APST on); 3 mW PS4 (L1.2)
2 TB column. Active power measured with fio 3.28 on an Intel Core Ultra 7 265K / ASUS Maximus Z890 HERO / Ubuntu 22.04 system with 32 GB DDR5-4800, which differs from the speed test. These are not a constant everyday load.
Source - Published system-level power
- Average read 4.3 W; average write 3.8 W
UK page 'Average Power Consumption (system level)'; actual power consumption may vary depending on system hardware and configuration.
Source - Allowable supply voltage
- 3.3 V ±5%
Product voltage range. Check the host slot is compatible.
Source - Device sleep support
- Yes
The UK page lists device sleep mode support. Host support is required; device sleep is not the same as Modern Standby and gives no battery-life figure.
Source - Modern Standby support
- Not listed by the manufacturer
Samsung does not state this for this model. · Samsung does not state Modern Standby support; device sleep is a separate feature.
Source - Advertised efficiency comparison
- Up to 38% better sequential performance per watt than the 990 PRO (Samsung internal 2 TB test)
Samsung internal test: 990 at 1,686/1,697 MB/s per watt read/write versus 990 PRO at 1,221/1,254 MB/s per watt, 2 TB capacity, fio 3.28 on a Core Ultra 7 265K system. A manufacturer comparison, not a measured saving in any particular PC.
Source
Features & software
6 items
- Hardware encryption support
- AES-256; TCG Opal 2.0; IEEE 1667
Listed security capabilities do not mean encryption is enabled or supported by every host.
- TRIM support
- Yes
Manufacturer requires operating-system support; the host path must also support it.
- S.M.A.R.T. support
- Yes
Manufacturer monitoring capability, not a remaining-lifespan guarantee.
Source - Garbage collection
- Yes
Internal function, not a measured performance uplift.
Source - Drive management software
- Samsung Magician
UK feature block: data transfer, drive-health tracking and firmware updates. Check the current software version and its requirements.
Source - World Wide Name support
- No
Product page states WWN is not supported.
Source
Environment & reliability
5 items
- Operating temperature
- 0–70 °C
0–70 °C is the S.M.A.R.T. operating temperature with airflow recommended, not an independent cooling measurement.
- Storage temperature
- −40–85 °C
Non-operating range, distinct from operation.
Source - Humidity range
- 5–95%
Manufacturer specifies non-condensing conditions. This environmental range is not waterproofing or an IP rating.
Source - Non-operating shock rating
- 1500 G; 0.5 ms; three axes
Manufacturer non-operating claim, not a device drop test.
- Non-operating vibration rating
- 20 G; 20–2000 Hz
Manufacturer test range; results from different test protocols are not directly comparable.
Source
Compatibility & box
2 items
- Installation kit included
- No
UK page says installation kit not available; no supplied screw or host heatsink is assumed.
Source - Included cloning software
- Samsung Magician data transfer
The UK feature block says Magician can transfer data. Check software version, operating-system support and migration requirements.
Source
Compare with another drive
More of the nearest checked drives by key specifications, for a side-by-side comparison.
Gigabyte AORUS Gen4 7000E2 TB · M.2 2280 single-sided without heatsink · AG470E2TBCompare the two
Samsung 990 PRO2 TB · without factory heatsink · MZ-V9P2T0BWCompare the two
Samsung 990 PRO with Heatsink2 TB · M.2 2280 with factory heatsink · MZ-V9P2T0CWCompare the two
Samsung 980 PRO2 TB · M.2 2280 without factory heatsink · MZ-V8P2T0BWCompare the two
Kingston KC30002048 GB · M.2 2280 with thin heat spreader · SKC3000D/2048GCompare the two
Kingston NV31000 GB · M.2 2280 · SNV3S/1000GCompare the two
Samsung 990 EVO Plus2 TB · M.2 2280 without factory heatsink · MZ-V9S2T0BWCompare the two

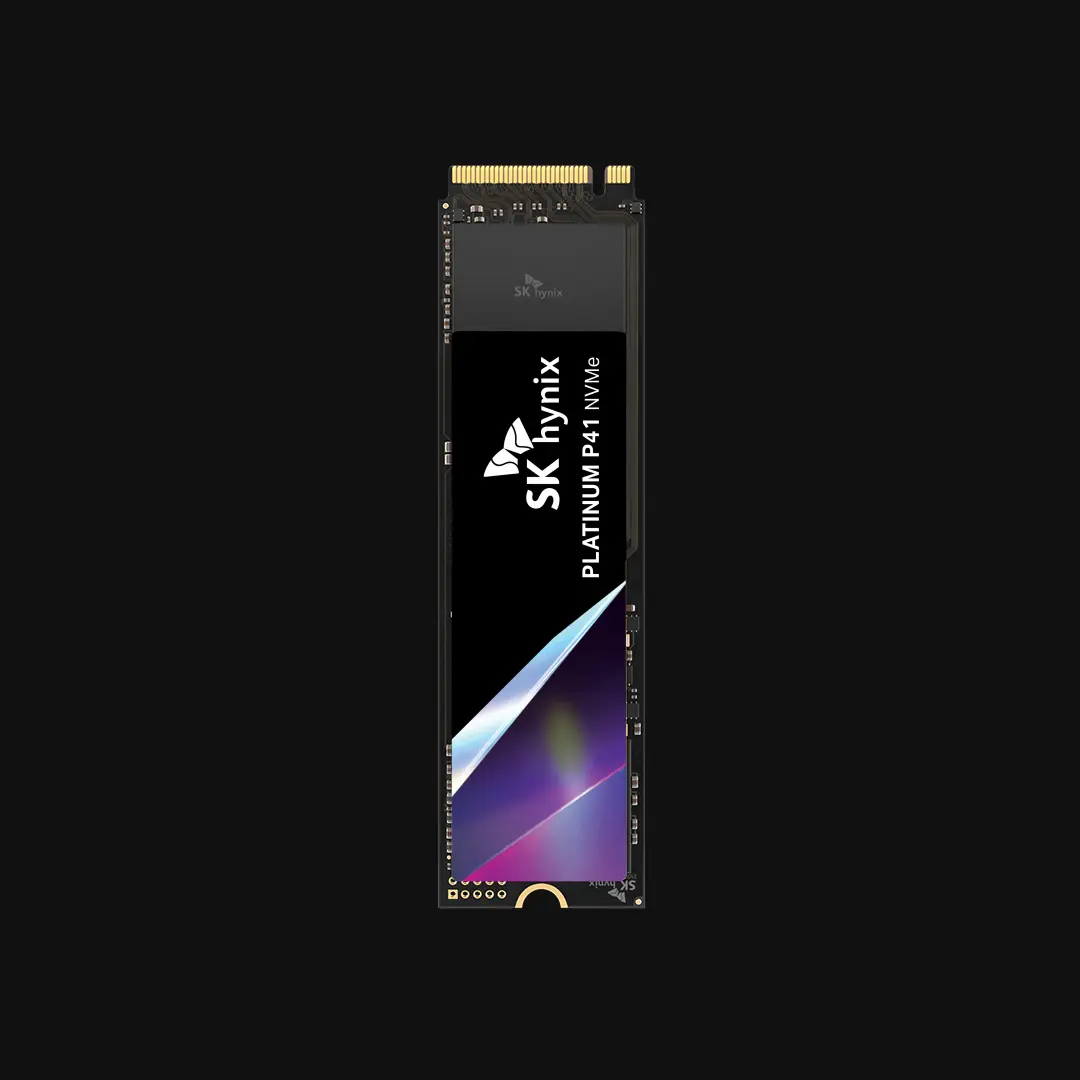

SK hynix Platinum P412 TB · M.2 2280 single-sided · no heatsink · SHPP41-2000GM-2Compare the two
