MOTHERBOARDS

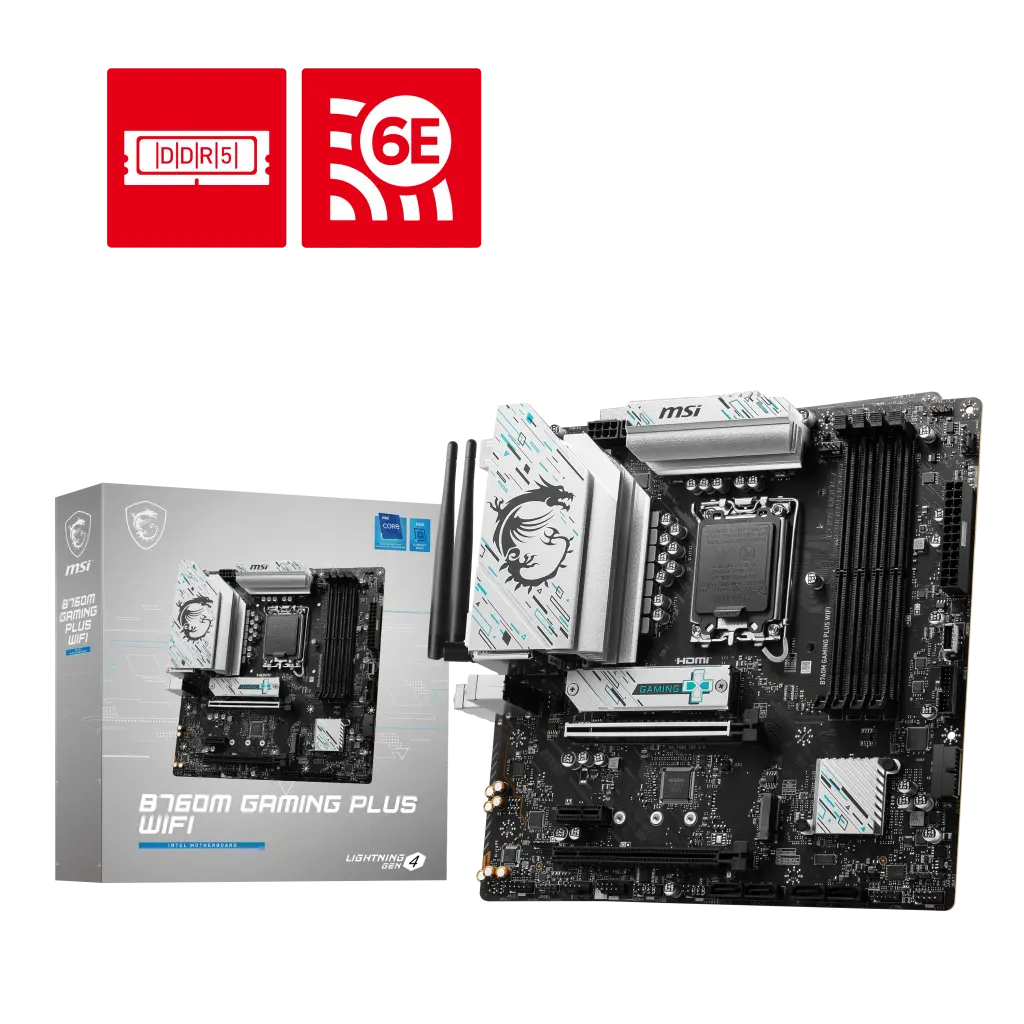

MSI B760M GAMING PLUS WIFI
UK manufacturer catalogue configuration · MSI part 911-7D99-017
- CPU socket
- LGA 1700
- Chipset
- INTEL B760
- PCB form factor and dimensions
- mATX 243.84mmx243.84mm
MSI B760M GAMING PLUS WIFI in the manufacturer’s documented UK configuration. Its published technical specifications retain the source’s connection, mode and configuration conditions.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the MSI B760M GAMING PLUS WIFI gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with MSI B760 GAMING PLUS WIFI
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the MSI B760M GAMING PLUS WIFI. The first matches the Compare button above.
MSI B760 GAMING PLUS WIFILGA1700 · ATX · DDR5 · board-only configuration · MSI global specification
MSI PRO B760M-P DDR4LGA1700 · Micro-ATX · DDR4 · board-only configuration · MSI global specification- PCB form factor and dimensions
- Micro-ATX; 243.84 × 243.84 mmThis one: mATX 243.84mmx243.84mm
MSI MAG B760 TOMAHAWK WIFILGA 1700 · DDR5 · ATX · MSI global specification- PCB form factor and dimensions
- ATX; 304.8 × 243.84 mmThis one: mATX 243.84mmx243.84mm
Key strengths
The manufacturer documents the exact product configuration and its main interfaces together in one specification table.
Before you buy
Published capabilities and maximum figures are manufacturer claims. They do not establish independently measured performance, stock or compatibility outside the stated conditions.
Works with
Products in this catalogue that list the same socket or memory type as the MSI B760M GAMING PLUS WIFI. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
- 2 LGA1700 processorsSocket LGA1700 on both, from cited specifications
- 50 DDR5 memory kitsMemory type DDR5 on both, from cited specifications
Every specification. With its source.
Full specifications
Exact configuration: UK manufacturer catalogue configuration · 911-7D99-017
16 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 1 row repeats a listed fact in the manufacturer’s own wording, kept under “Manufacturer wording”.
Platform & board
3 items
Memory
1 item
- Memory generation, slots, capacity and conditions
- 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel ® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memorySource
Expansion slots
1 item
- Expansion slots and CPU restrictions
- 2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)Source
Storage
2 items
- Storage interfaces and lane-sharing conditions
- 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.Source
- SATA RAID modes and restrictions
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Full manufacturer RAID restrictions: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices. SATA and NVMe modes are not inferred from each other.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Full manufacturer RAID specification
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSource
USB & rear connections
3 items
- USB ports and headers
- 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)Source
- Rear-panel ports
- Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) Audio ConnectorsSource
- Processor-dependent display outputs
- 2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Source
Networking
1 item
- Network interfaces and operating-system conditions
- lan: Realtek ® RTL8125BG 2.5G LAN; wireless lan & bluetooth: Intel ® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth ® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.Source
Audio
1 item
- Onboard audio specification
- Realtek ® ALC897 Codec 7.1-Channel High Definition AudioSource
Power, cooling & lighting
1 item
- Internal headers and connectors
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C portsSource
BIOS, software & diagnostics
3 items
- CPU and firmware support
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Manufacturer-listed processor families; exact CPU support and necessary BIOS revision depend on the current MSI support list. A family statement is not a guarantee for every CPU.
Source - Supported operating systems
- Support for Windows ® 11 64-bit, Windows ® 10 64-bitSource
- Diagnostic features
- 4x EZ Debug LEDSource
