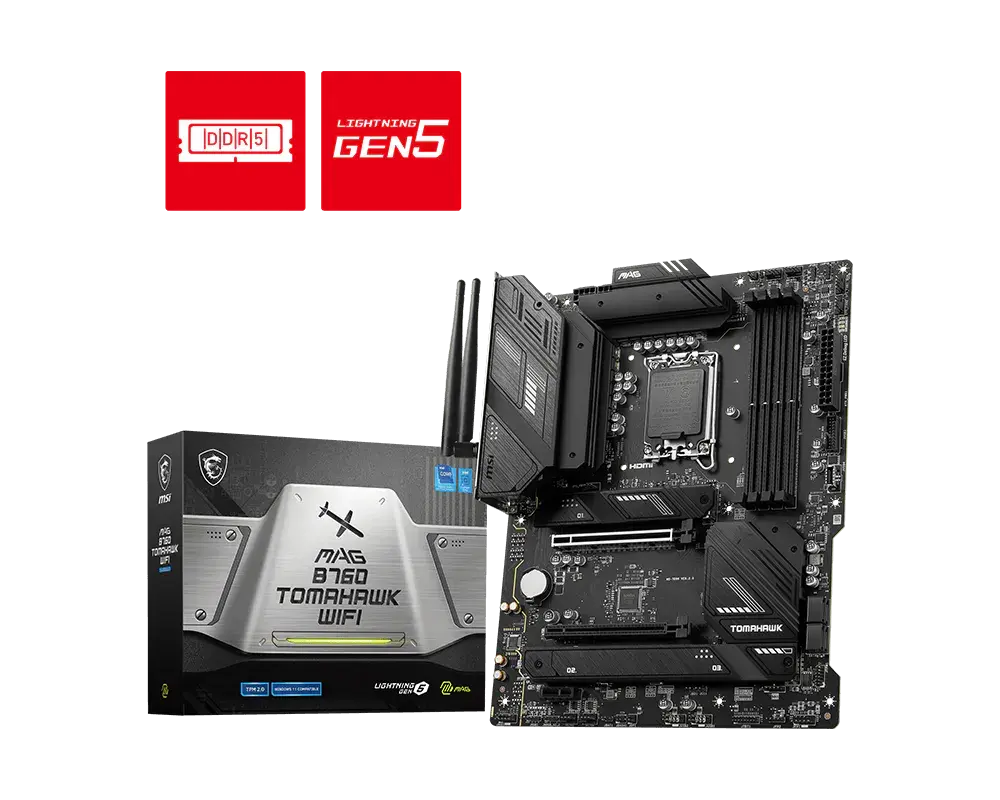

MSI MAG B760 TOMAHAWK WIFI
LGA 1700 · DDR5 · ATX
- CPU socket
- LGA 1700
- Chipset
- Intel B760
- Form factor
- ATX; 304.8 × 243.84 mm
An ATX LGA 1700 motherboard with Intel B760 and DDR5 memory: four DDR5 slots rated up to DDR5-7000+ (OC), a PCIe 5.0 x16 graphics slot, three PCIe 4.0 x4 M.2 slots, 2.5 Gb Ethernet and Wi-Fi 6E.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the MSI MAG B760 TOMAHAWK WIFI gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with MSI B760 GAMING PLUS WIFI
Specifications checked 8 Sept 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the MSI MAG B760 TOMAHAWK WIFI. The first matches the Compare button above.
MSI B760 GAMING PLUS WIFILGA1700 · ATX · DDR5 · board-only configuration · MSI global specification

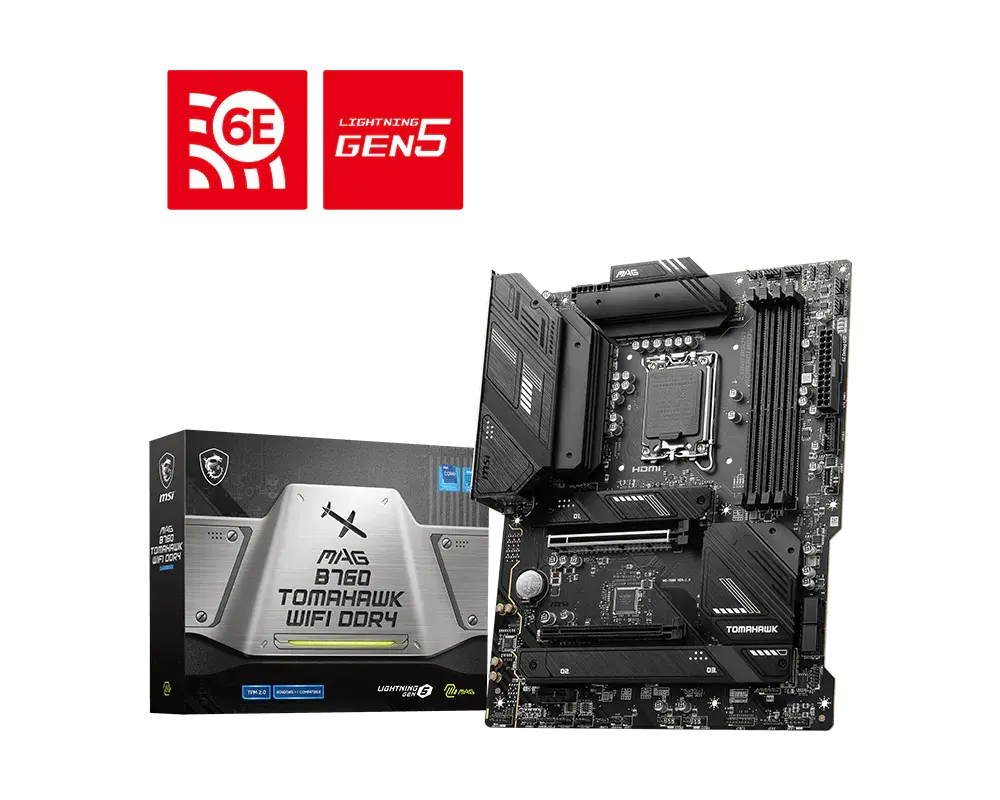

MSI MAG B760 TOMAHAWK WIFI DDR4LGA 1700 · DDR4 · ATX · MSI global specification- Maximum listed memory
- 128 GBThis one: 256 GB
MSI PRO Z790-A MAX WIFILGA1700 · ATX · DDR5 · board-only configuration · MSI global specification- Chipset
- Intel Z790This one: Intel B760
- M.2 storage slots
- 4This one: 3
Key strengths
PCIe 5.0 x16 graphics slot from the CPU and three PCIe 4.0 x4 M.2 slots for fast graphics and SSD upgrades.
Realtek 2.5 Gb Ethernet, Intel Wi-Fi 6E and Bluetooth 5.3, plus a rear 20 Gb/s USB-C port and four 10 Gb/s Type-A ports.
Before you buy
Only four SATA ports, the second x16-length slot runs at PCIe 3.0 x4, and the DDR5 slots do not accept DDR4 memory.
Works with
Products in this catalogue that list the same socket or memory type as the MSI MAG B760 TOMAHAWK WIFI. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
- 2 LGA1700 processorsSocket LGA1700 on both, from cited specifications
- 50 DDR5 memory kitsMemory type DDR5 on both, from cited specifications
Every specification. With its source.
Full specifications
Exact configuration: LGA 1700 · DDR5 · ATX · MSI global specification
22 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Platform & board
3 items
Memory
3 items
- DIMM slots
- 4
Physical DDR5 DIMM positions; not a capacity or speed guarantee.
Source - Maximum listed memory
- 256 GB
Manufacturer capacity ceiling; CPU, BIOS and module validation apply.
Source - Memory type, slots and limit
- 4 DDR5 DIMM slots; dual channel; up to 256 GB; up to DDR5-7000+ (OC); Intel XMP; non-ECC unbuffered
The overclocked speed is MSI's 1DPC 1R maximum; MSI lists 1DPC 2R up to 6600+, 2DPC 1R up to 6400+ and 2DPC 2R up to 5600+ MHz. · Manufacturer capacity ceiling for this exact board, not included memory or a performance measurement. CPU, BIOS, DIMM population and the validated-module list determine support. DDR5 slots require DDR5 modules; DDR4 and DDR5 are not interchangeable.
Expansion slots
2 items
- Expansion slots and electrical links
- 1 × PCIe 5.0 x16; 1 × PCIe 3.0 x4; 1 × PCIe 4.0 x1
PCI_E1 connects to the CPU; PCI_E2 (x16-length, x4 electrical) and PCI_E3 connect to the chipset. · Electrical link widths, not a guarantee of the installed system’s performance.
Source - Primary expansion-slot link
- PCI_E1: CPU PCIe 5.0 up to x16
The stated PCI_E1 electrical link is separate from M.2 storage links. It is not measured GPU performance.
Storage
5 items
- M.2 storage slots
- 3
Storage M.2 positions; bandwidth and protocol are specified separately.
Source - SATA ports
- 4
SATA 6 Gb/s connectors; check lane sharing and drive power.
Source - Storage interfaces
- 3 × M.2 PCIe 4.0 x4; M2_3 also supports SATA; 4 × SATA 6 Gb/s
M2_1 connects to the CPU; M2_2 and M2_3 connect to the chipset. · M2_1 accepts drives up to 22110; M2_2 and M2_3 accept drives up to 2280. MSI does not say whether a SATA M.2 drive in M2_3 shares a SATA port; check the manual if you plan to use every SATA port.
- SATA RAID modes
- RAID 0/1/5/10
Listed SATA modes require compatible drives and array setup and are not a data protection guarantee.
Source - NVMe RAID modes
- Not listed by the manufacturer
MSI lists RAID modes for SATA drives only; NVMe RAID support is not stated. · MSI lists RAID modes for SATA drives only; NVMe RAID support is not stated.
Source
USB & rear connections
3 items
- Processor-dependent display outputs
- HDMI 2.1: up to 4K 60 Hz; DisplayPort 1.4: up to 8K 60 Hz
MSI's datasheet gives 4K 60 Hz for both outputs; the 8K DisplayPort maximum comes from MSI's current specification page. · These outputs require a processor with integrated graphics; MSI says graphics specifications vary with the installed CPU.
- Rear USB ports
- 4 USB 2.0; 4 USB 10 Gb/s Type-A; 1 USB 20 Gb/s Type-C
Rear port inventory only. Rated interface rates are not simultaneous measured throughput; USB-C connector shape does not establish USB4 or charging power.
Source - Front USB header capacity
- 4 USB 2.0; 2 USB 5 Gb/s Type-A; 1 USB 10 Gb/s Type-C
Manufacturer-listed front connectivity requires compatible case ports and cabling. These are not additional rear-panel sockets.
Source
Networking
1 item
- Network interfaces
- Realtek 8125BG 2.5 Gb Ethernet; Intel Wi-Fi 6E; Bluetooth 5.3
6 GHz Wi-Fi depends on local regulations and Windows 11 support. Link rates are not measured throughput.
Audio
1 item
- Onboard audio hardware
- Realtek ALC897 codec; 7.1-channel
Manufacturer-listed onboard audio hardware, not a measured sound-quality result.
Source
Power, cooling & lighting
1 item
- Cooling headers
- 1 CPU fan; 1 pump fan; 5 system fan headers
Board headers, not included fans or a statement of their current limits.
Source
BIOS, software & diagnostics
3 items
- CPU support / BIOS source
- Intel Core 14th / 13th / 12th Gen, Pentium Gold and Celeron
Check MSI's exact CPU support list and its required BIOS. Family support does not confirm the firmware installed on a retail board.
Source - Diagnostic indicators
- 4 EZ Debug LEDs
Diagnostic indicators are not a numeric POST display or proof that a fault will be automatically repaired.
Source - Rear Flash BIOS button
- Not listed by the manufacturer
MSI's rear-panel list for this board does not mention a Flash BIOS button; check the manual if you need BIOS flashback. · MSI's rear-panel list for this board does not mention a Flash BIOS button; check the manual if you need BIOS flashback.
Source
Compare with another motherboard
More of the nearest checked motherboards by key specifications, for a side-by-side comparison.

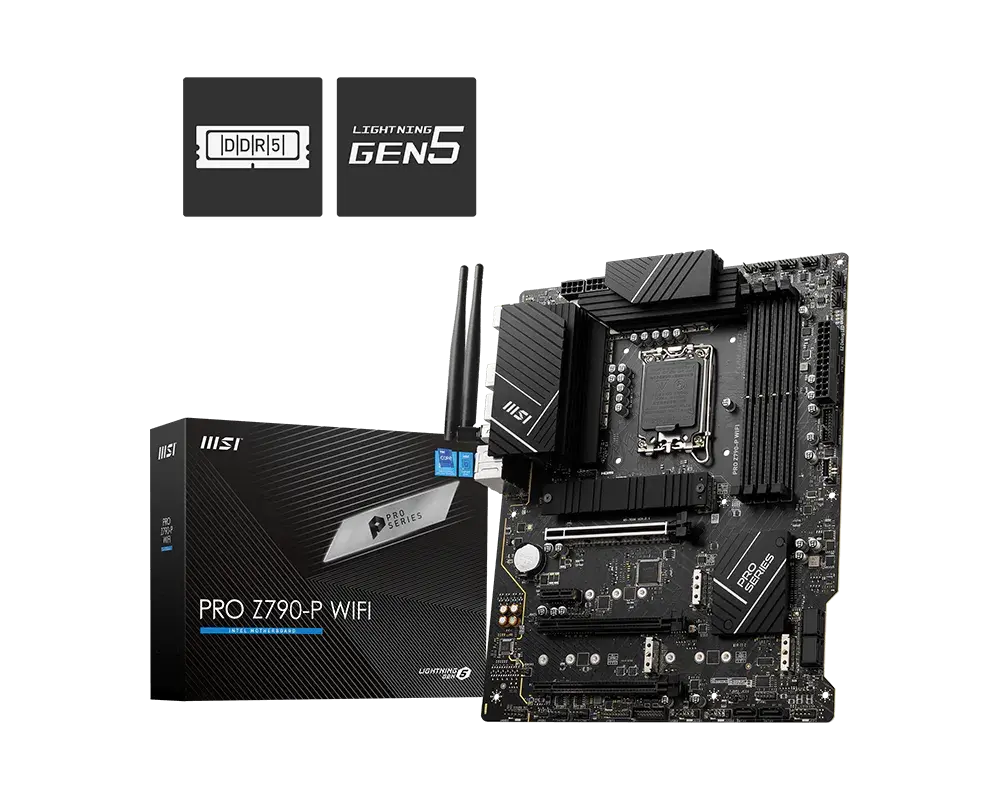

MSI PRO Z790-P WIFILGA 1700 · DDR5 · ATX · MSI global specificationCompare the two

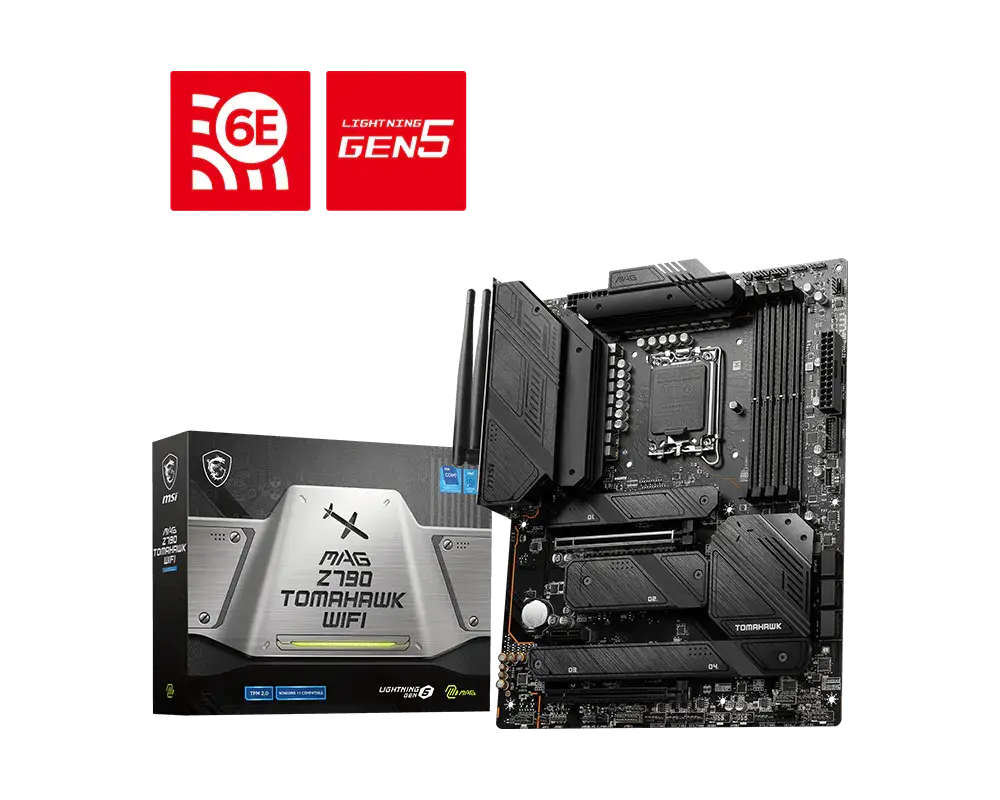

MSI MAG Z790 TOMAHAWK WIFILGA 1700 · DDR5 · ATX · MSI global specificationCompare the two
MSI MAG Z790 TOMAHAWK MAX WIFILGA 1700 · DDR5 · ATX · MSI global specificationCompare the two
MSI PRO Z790-A WIFILGA 1700 · DDR5 · ATX · MSI global specificationCompare the two

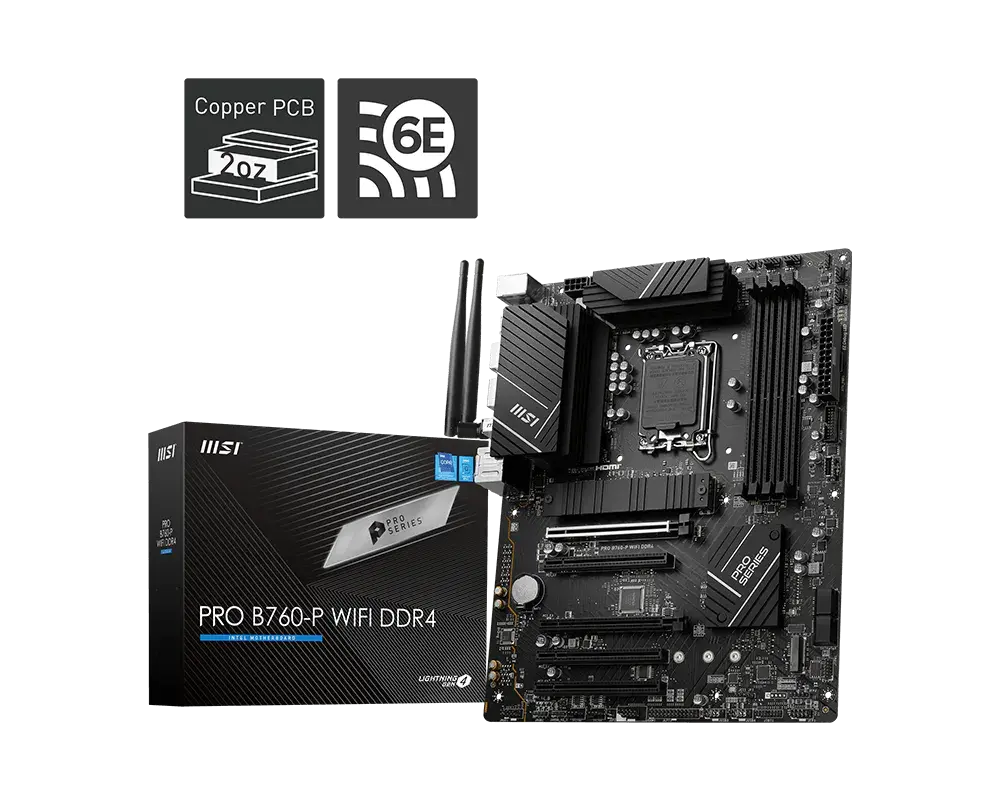

MSI PRO B760-P WIFI DDR4LGA 1700 · DDR4 · ATX · MSI global specificationCompare the two

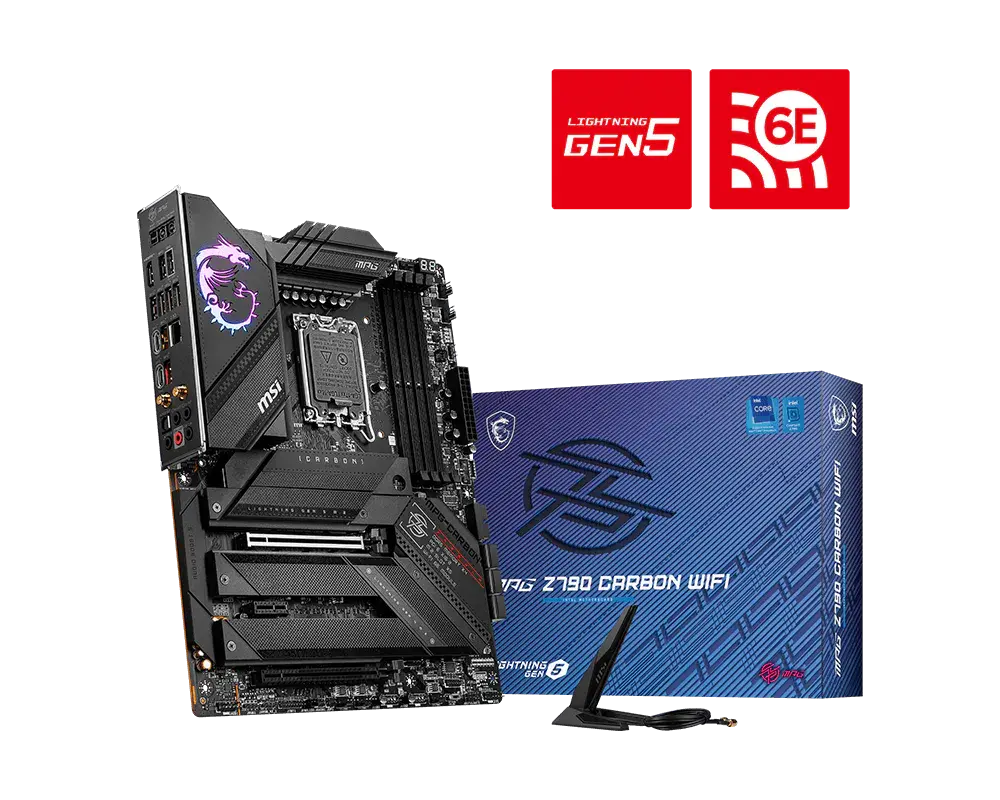

MSI MPG Z790 CARBON WIFILGA 1700 · DDR5 · ATX · MSI global specificationCompare the two
