Philips 77OLED809/12
official en_GB catalogue configuration
- Screen diagonal
- 77 in
- Panel technology
- OLED
- Native/display resolution
- 3840 x 2160
Philips 77OLED809/12 in its exact official UK catalogue configuration. The manufacturer specifies a 77-inch display; panel, input-specific refresh and stand details are preserved in the specifications.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the Philips 77OLED809/12 gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with Philips 77OLED859/12
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked TVs by key specifications, with what differs from the Philips 77OLED809/12. The first matches the Compare button above.
Philips 77OLED859/1277OLED859/12 · official en_GB catalogue configuration
Samsung 77'' OLED S95H 4K Samsung Vision AI Smart TV (2026)UK QE77S95HFTXXU · 77- Native panel refresh rate
- 100 HzThis one: 120 Hz
- Inputs and connections
- 4 × HDMI; 4K 165 Hz (for HDMI 1/2/3/4) (HDMI (High Frame Rate)); 3 x USB-A, 1 x USB-C (USB); 1 × Ethernet (LAN); 1 × Digital Audio Out (Optical); RF In (Terrestrial / Cable input) (1 / 1(Common Use for Terrestrial) / 2); 1 × CI Slot; HDMI Audio Return Channel (eARC); Wi-Fi (Yes (Wi-Fi 6E)); Bluetooth (Yes (5.3)); Anynet+ (HDMI-CEC); One Connect Box (One Connect (Y24 4K))This one: 4 × Number of HDMI connections; 4K, Audio Return Channel (HDMI features); Remote control pass-through, System audio control, System standby, One touch play (EasyLink (HDMI-CEC)); 2 × Number of USBs; Wireless connection (Wi-Fi 802.11ax, 2x2, Dual band, Bluetooth 5.2, Wi-Fi 6); Common Interface Plus (CI+), Ethernet-LAN RJ-45, Digital audio out (optical), Headphone out, Service connector, Satellite Connector (Other connections); Yes on all HDMI (HDCP 2.3); Yes on HDMI2 (HDMI ARC); eARC on HDMI 2, eARC/VRR/ALLM supported, Max 48 Gbps data rate (HDMI 2.1 features); External setting via TV UI, HDMI-CEC for Philips TV/SB (EasyLink 2.0)
Samsung 77'' OLED S90H 4K Samsung Vision AI Smart TV (2026)UK QE77S90HATXXU · 77- Native panel refresh rate
- 100 HzThis one: 120 Hz
- Inputs and connections
- 4 × HDMI; 4K 165 Hz (for HDMI 1/2/3/4) (HDMI (High Frame Rate)); 2 x USB-A (USB); 1 × Ethernet (LAN); 1 × Digital Audio Out (Optical); RF In (Terrestrial / Cable input) (1 / 1(Common Use for Terrestrial) / 1); 1 × CI Slot; HDMI Audio Return Channel (eARC); Wi-Fi (Yes (Wi-Fi 6E)); Bluetooth (Yes (5.3)); Anynet+ (HDMI-CEC)This one: 4 × Number of HDMI connections; 4K, Audio Return Channel (HDMI features); Remote control pass-through, System audio control, System standby, One touch play (EasyLink (HDMI-CEC)); 2 × Number of USBs; Wireless connection (Wi-Fi 802.11ax, 2x2, Dual band, Bluetooth 5.2, Wi-Fi 6); Common Interface Plus (CI+), Ethernet-LAN RJ-45, Digital audio out (optical), Headphone out, Service connector, Satellite Connector (Other connections); Yes on all HDMI (HDCP 2.3); Yes on HDMI2 (HDMI ARC); eARC on HDMI 2, eARC/VRR/ALLM supported, Max 48 Gbps data rate (HDMI 2.1 features); External setting via TV UI, HDMI-CEC for Philips TV/SB (EasyLink 2.0)
Key strengths
The source identifies the exact regional model and its display, stand and connection details. Compare the published requirements for your inputs and room or desk; these are manufacturer claims.
Before you buy
Specifications and included accessories can vary by regional code. Manufacturer test conditions and illustrative-image qualifications are preserved. Current stock, independent picture quality and measured performance are not established.
Every specification. With its source.
Full specifications
Exact configuration: 77OLED809/12 · official en_GB catalogue configuration
71 specifications in 8 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 2 rows repeat listed facts in the manufacturer’s own wording, kept under “Manufacturer wording”.
Screen & picture
14 items
- Screen diagonal
- 77 inSource
- Panel technology
- OLEDSource
- Native/display resolution
- 3840 x 2160Source
- Ambilight Features
- Wall colour adaptive, Lounge light mode, Game Mode, Ambilight Music, Sunrise Alarm, AmbiSleep, Ambilight FTI Animation, Works with Philips Wireless Home Speakers
Section: Ambilight. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Ambilight Version
- 3 sided
Section: Ambilight. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Diagonal screen size (inch)
- 77
Section: Picture/Display. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Diagonal screen size (metric)
- 194
Section: Picture/Display. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Picture engine
- P5 AI Perfect Picture Engine
Section: Picture/Display. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Picture enhancement
- Perfect Natural Motion, Micro Dimming Perfect, Dolby Vision, HLG (Hybrid Log Gamma), CalMAN Ready, IMAX enhanced mode, HDR10+ Adaptive, Film-maker mode
Section: Picture/Display. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Video Playback Formats
- AVI, MKV, HEVC, H.264/MPEG-4 AVC, MPEG1, MPEG2, MPEG4, VP9, HEVC (H.265), AV1
Section: Multimedia Applications. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Picture Playback Formats
- JPEG, GIF, PNG, BMP, HEIF
Section: Multimedia Applications. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - HDR
- Dolby Vision, HDR10, HDR10+, HDR10+ Adaptive, HLG, UHDA
Section: Supported HDMI video features. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Panel technology used
- OLED
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Colours of TV
- Metal bezel frame
Section: Design. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Panel resolution
- 3840 x 2160
Section: Picture/Display. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Refresh & gaming modes
4 items
- Native panel refresh rate
- 120 Hz
The manufacturer’s explicit Native refresh rate field, normalized to Hz. The site’s field unit is confirmed by its linked specification PDFs; motion indices and higher VRR/input limits remain separate.
Source - Native refresh rate
- 120
Section: Picture/Display. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Resolution-Refresh rate
- 576 p - 50 Hz, 640 x 480 - 60 Hz, 720 p - 50 Hz, 60 Hz, 1920 x 1080p -24/25/30/50/ 60/100/120/144Hz, 2560 x 1440 - 60/120/144Hz, 3840 x 2160p - 24/25/30/50/60/100/120/144 Hz
Section: Display input resolution. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Gaming
- ALLM, Dolby Vision Game, HDMI VRR, HGiG, AMD FreeSync Premium, Nvidia G-Sync compatible
Section: Supported HDMI video features. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Connections & tuners
17 items
- Inputs and connections
- 4 × Number of HDMI connections; 4K, Audio Return Channel (HDMI features); Remote control pass-through, System audio control, System standby, One touch play (EasyLink (HDMI-CEC)); 2 × Number of USBs; Wireless connection (Wi-Fi 802.11ax, 2x2, Dual band, Bluetooth 5.2, Wi-Fi 6); Common Interface Plus (CI+), Ethernet-LAN RJ-45, Digital audio out (optical), Headphone out, Service connector, Satellite Connector (Other connections); Yes on all HDMI (HDCP 2.3); Yes on HDMI2 (HDMI ARC); eARC on HDMI 2, eARC/VRR/ALLM supported, Max 48 Gbps data rate (HDMI 2.1 features); External setting via TV UI, HDMI-CEC for Philips TV/SB (EasyLink 2.0)
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: Number of HDMI connections. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: HDMI features. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: EasyLink (HDMI-CEC). Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: Number of USBs. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: Wireless connection. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: Other connections. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: HDCP 2.3. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: HDMI ARC. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: HDMI 2.1 features. Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: EasyLink 2.0.
Source - Multi-view
- Yes
Section: Picture/Display. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Digital TV
- DVB-T/T2/T2-HD/C/S/S2
Section: Tuner/Reception/Transmission. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - TV Programme guide*
- 8-day Electronic Programme Guide
Section: Tuner/Reception/Transmission. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Teletext
- 1000 page Hypertext
Section: Tuner/Reception/Transmission. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Number of HDMI connections
- 4
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - HDMI features
- 4K, Audio Return Channel
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - EasyLink (HDMI-CEC)
- Remote control pass-through, System audio control, System standby, One touch play
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Number of USBs
- 2
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Wireless connection
- Wi-Fi 802.11ax, 2x2, Dual band, Bluetooth 5.2, Wi-Fi 6
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Other connections
- Common Interface Plus (CI+), Ethernet-LAN RJ-45, Digital audio out (optical), Headphone out, Service connector, Satellite Connector
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - HDCP 2.3
- Yes on all HDMI
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - HDMI ARC
- Yes on HDMI2
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - HDMI 2.1 features
- eARC on HDMI 2, eARC/VRR/ALLM supported, Max 48 Gbps data rate
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - EasyLink 2.0
- External setting via TV UI, HDMI-CEC for Philips TV/SB
Section: Connectivity. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - HDMI 1/2
- HDMI 2.1 full bandwidth 48 Gbps, up to 4K 120 Hz
Section: Supported HDMI video features. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - HDMI 3/4
- HDMI 2.0
Section: Supported HDMI video features. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Smart platform & support
7 items
- Smart platform
- Google TV™Source
- Interactive TV
- HbbTV
Section: Smart TV Features. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Voice assistant*
- Google Assistant built in, Works with Alexa, RC with Mic.
Section: Smart TV Features. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Smart Home experience
- Works with Amazon Alexa, Works with Google assistant, Compatible with Matter, Connects with Control4
Section: Smart TV Features. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Subtitles Formats Support
- SRT, SMI, SSA, SUB, ASS, TXT
Section: Multimedia Applications. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Memory size (Flash)
- 16 GB*
Section: Google TV. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Pre-installed apps
- Disney+, Apple TV, Netflix, YouTube, Amazon Prime video, Aurora, NFT, STB controller
Section: Google TV. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Audio
5 items
- Music Playback Formats
- MP3, WAV, AAC, FLAC
Section: Multimedia Applications. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Audio
- 2.1 Channel
Section: Sound. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Speaker configuration
- 10 W x 4 mid-high speaker, 30 W sub-woofer
Section: Sound. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Codec
- Dolby Digital MS12 V2.6.2, DTS:X
Section: Sound. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Sound Enhancement
- Dolby Atmos®, Clear Dialogue, A.I. Sound, A.I. EQ, Dolby Volume Leveller, Night mode, Dolby Bass Enhancement, Room Calibration, DTS Play-Fi
Section: Sound. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Size, stand & mounting
9 items
- Dimensions with stand
- 1723 x 1057 x 310 mm
Manufacturer tuple, units and stand basis retained exactly. No missing axis label or malformed tuple is silently corrected. Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred. Source field: TV with stand (H x W x D).
Source - Stand design
- Satin chrome stand
Section: Design. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Stand height to TV bottom edge
- 20
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Wall-mount compatible
- 400 x 300 mm
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - TV stand width distance
- 805
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - TV without stand (H x W x D)
- 1723 x 991 x 80 mm
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Weight of TV without stand
- 35.0 kg
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Weight of TV with stand
- 36. kg
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Weight incl. packaging
- 47.2 kg
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- TV with stand (H x W x D)
- 1723 x 1057 x 310 mm
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Power & energy
12 items
- Processing Power
- Quad Core
Section: Processing. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Output power (RMS)
- Output power: 70 Watt (RMS)
Section: Sound. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - EPREL registration numbers
- 1887660
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Energy class for SDR
- F
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - On mode power demand for SDR
- 134 kWh/1000h
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Energy class for HDR
- F
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - On mode power demand for HDR
- 133 kWh/1000h
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Off mode power consumption
- n.a
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Networked standby mode
- 2.0 W
Section: EU Energy card. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Mains power
- AC 220 - 240 V 50/60 Hz
Section: Power. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Standby power consumption
- less than 0.3 W
Section: Power. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Power Saving Features
- Auto switch-off timer, Picture mute (for radio), Eco mode, Light sensor
Section: Power. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Box & regional model
3 items
- Manufacturer qualifications and test conditions
- This television contains lead only in certain parts or components where no technology alternatives exist in accordance with existing exemption clauses under the RoHS Directive. The TV supports DVB reception for 'Free to air' broadcast. Specific DVB operators may not be supported. An up-to-date list can be found in the FAQ section of the Philips support website. For some operators Conditional Access and subscription are required. Contact your operator for more information. Smart TV app availability varies by TV model and country. For more details, please visit: www.philips.com/smarttv. Philips TV Remote app and related functionalities vary by TV model, operator and country, as well as smart device model and OS. For more details, please visit: www.philips.com/TVRemoteapp. EPG and actual visibility (up to 8 days) is country- and operator-dependent. Netflix subscription required. Subject to terms on https://www.netflix.com Amazon Prime is available in selected languages and countries. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Amazon Alexa is available in selected languages and countries Over-the-top media services button on the remote control will be different in each country. Please refer to the actual product in the box. Google Assistant is available in different languages and countries specific to product types. Availability and functionality of voice-control services varies according to country and language. Availability of Apple TV app and Apple TV+ may vary by country or region. Please check the Google Play and Apple Inc. support pages. 144 Hz HDMI VRR, G-sync and FreeSync are achievable when gaming on a PC, connected to your OLED TV via HDMI Matter/Control4: this feature will become available in 2024 via a software update.Source
- Included accessories
- Remote Control, Tabletop stand, Power cord, Quick start guide, Legal and safety brochure, 1x USB-C cable for remote control charging
Section: Accessories. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source - Package carton (H x W x D)
- 1950 x 1170 x 200 mm
Section: Dimensions. Source wording and any stated units retained. Unlisted units and capability absences are not inferred.
Source
Compare with another TV
More of the nearest checked TVs by key specifications, for a side-by-side comparison.
Samsung 77" OLED S99H 4K Samsung Vision AI Smart TVUK QE77S99HATXXU · 77Compare the two
Samsung 77'' OLED S85H 4K Samsung Vision AI Smart TV (2026)UK QE77S85HAEXXU · 77Compare the two
Samsung 77'' OLED S93H 4K Samsung Vision AI Smart TV (2026)UK QE77S93HATXXU · 77Compare the two
Samsung 77'' OLED S83H 4K Samsung Vision AI Smart TV (2026)UK QE77S83HAEXXU · 77Compare the two

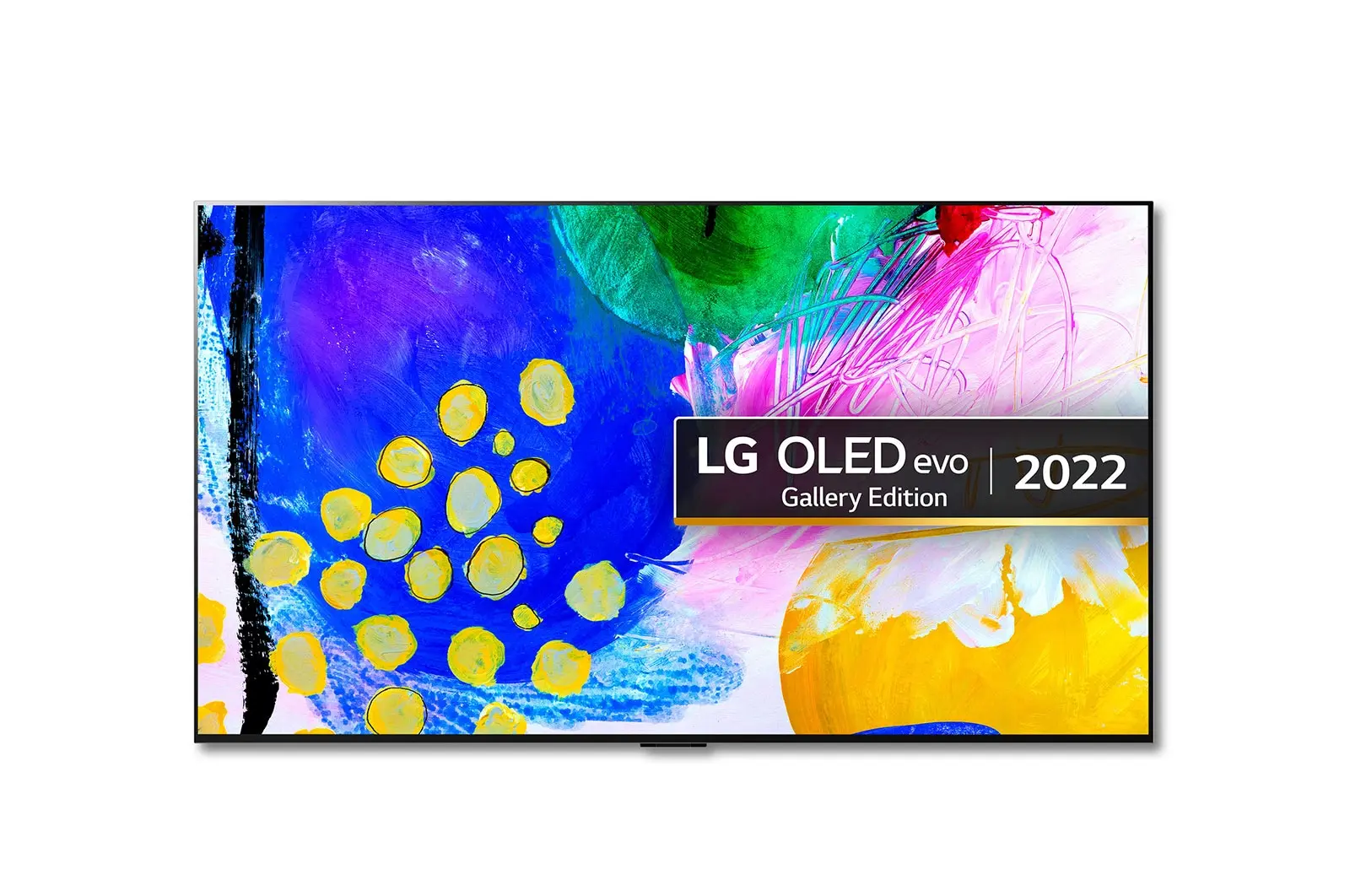

LG OLED97G29LAUK manufacturer model · OLED97G29LACompare the two
Samsung 83'' OLED S90H 4K Samsung Vision AI Smart TV (2026)UK QE83S90HAEXXU · 83Compare the two
Samsung 83" OLED S99H 4K Samsung Vision AI Smart TVUK QE83S99HAEXXU · 83Compare the two
Samsung 83'' OLED S85H 4K Samsung Vision AI Smart TV (2026)UK QE83S85HAEXXU · 83Compare the two
