Samsung 980 PRO with Heatsink PCIe 4.0 M.2 SSD 1TBUK MZ-V8P1T0CW · Black · 1 TB- Nominal capacity
- 1000 GBThis one: 2000 GB
STORAGE

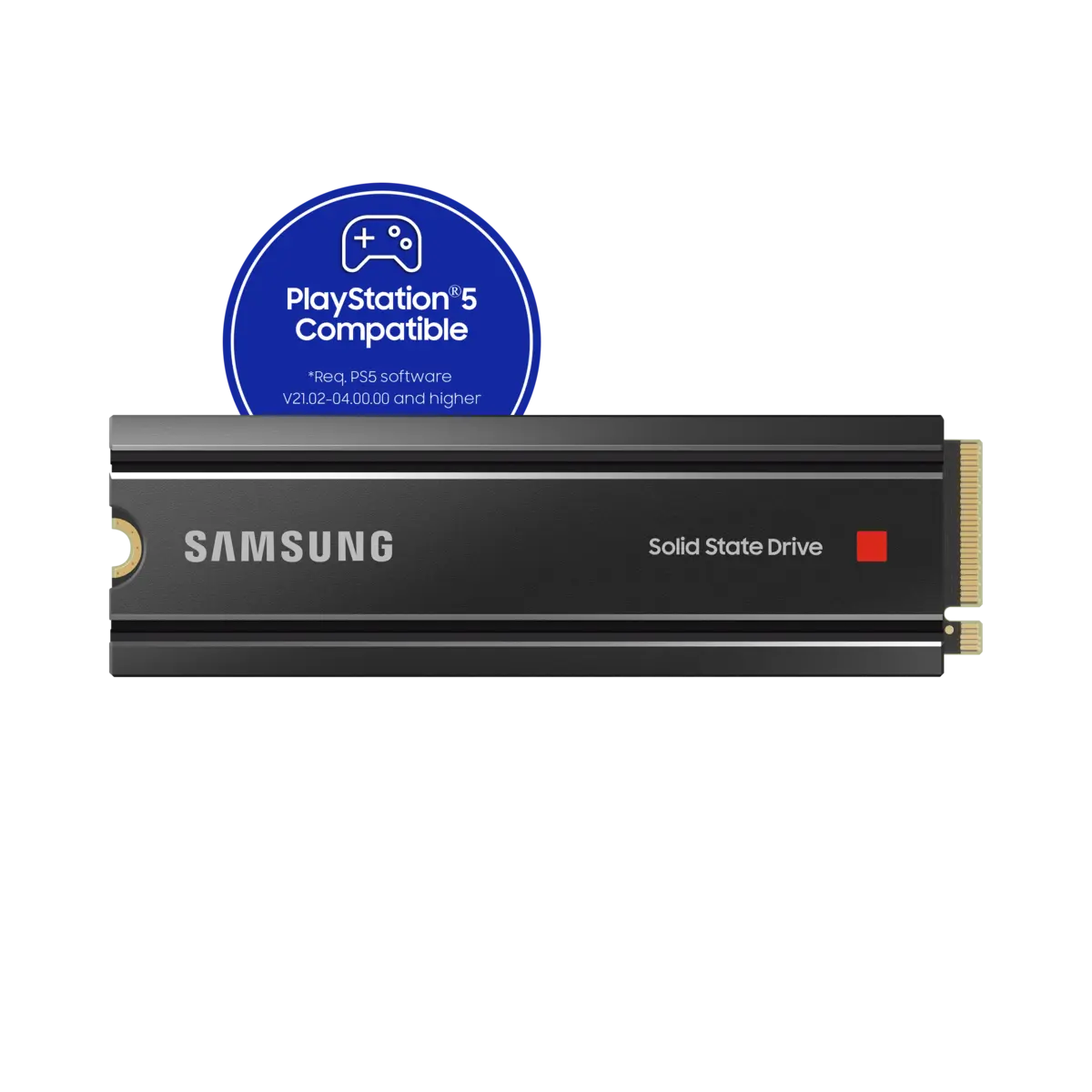

Samsung 980 PRO with Heatsink PCIe 4.0 M.2 SSD 2TB
UK MZ-V8P2T0CW · Black · 2 TB
- Nominal capacity
- 2000 GB
- Storage device type
- SSD
- Form factor
- M.2 (2280)
Samsung’s 980 PRO with Heatsink PCIe 4.0 M.2 SSD 2TB in the exact UK MZ-V8P2T0CW configuration. Capacity, interface, form factor and rated performance refer to this exact storage configuration.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the Samsung 980 PRO with Heatsink PCIe 4.0 M.2 SSD 2TB gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with Samsung 980 PRO with Heatsink PCIe 4.0 M.2 SSD 1TB
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked drives by key specifications, with what differs from the Samsung 980 PRO with Heatsink PCIe 4.0 M.2 SSD 2TB. The first matches the Compare button above.
Samsung 980 PRO with Heatsink PCIe 4.0 M.2 SSD 1TBUK MZ-V8P1T0CW · Black · 1 TB
Samsung 980 PRO NVMe™ M.2 SSD 250GBUK MZ-V8P250BW · Black · 250 GB- Nominal capacity
- 250 GBThis one: 2000 GB
Samsung 980 PRO NVMe™ M.2 SSD 500GBUK MZ-V8P500BW · Black · 500 GB- Nominal capacity
- 500 GBThis one: 2000 GB
Key strengths
The manufacturer lists nominal capacity: 2000.0.
The exact UK manufacturer identifier MZ-V8P2T0CW distinguishes this configuration from other models and bundles.
Before you buy
Published performance and battery figures are manufacturer claims. Actual results depend on configuration, settings and use; an unlisted feature or condition remains unknown.
Every specification. With its source.
Full specifications
Exact configuration: UK MZ-V8P2T0CW · Black · 2 TB
30 specifications in 7 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 5 rows repeat listed facts in the manufacturer’s own wording, kept under “Manufacturer wording”.
Capacity & format
11 items
- Nominal capacity
- 2000 GB
Manufacturer capacity: 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise). Decimal TB converted to GB where needed; formatted usable capacity is lower.
Source - Storage device type
- SSDSource
- Form factor
- M.2 (2280)Source
- Interface
- PCIe Gen 4.0 x4, NVMe 1.3cSource
- Dimensions
- 80 x 24 x 8.6 mm (with heatsink)Source
- General Feature — Capacity
- 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - General Feature — Weight
- Max 30.5g
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - General Feature — Storage Memory
- Samsung V-NAND 3-bit MLC
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - General Feature — Controller
- Samsung in-house Controller
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - General Feature — Cache Memory
- Samsung 2GB Low Power DDR4 SDRAM
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Installation Kit
- Not Available
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Manufacturer wording (3)
The same facts in the manufacturer’s combined or original wording, each with its source.
- General Feature — Form Factor
- M.2 (2280)
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - General Feature — Interface
- PCIe Gen 4.0 x4, NVMe 1.3c
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - General Feature — Dimension (WxHxD)
- 80 x 24 x 8.6 mm (with heatsink)
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Performance
4 items
- Rated performance and conditions
- Up to 7,000 MB/s * Performance may vary based on system hardware & configuration (Sequential Read); Up to 5,100 MB/s * Performance may vary based on system hardware & configuration (Sequential Write); Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration (Random Read (4 KB, QD32)); Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration (Random Write (4KB, QD32))
Manufacturer performance claims; supplied test conditions/maximum wording retained. Not an independent benchmark. Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown. Manufacturer section: Performance. Source field: Sequential Read. Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown. Manufacturer section: Performance. Source field: Sequential Write. Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown. Manufacturer section: Performance. Source field: Random Read (4 KB, QD32). Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown. Manufacturer section: Performance. Source field: Random Write (4KB, QD32).
Source - Performance — Sequential Read
- Up to 7,000 MB/s * Performance may vary based on system hardware & configuration
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Performance — Sequential Write
- Up to 5,100 MB/s * Performance may vary based on system hardware & configuration
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Performance — Random Read (4 KB, QD32)
- Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Performance — Random Write (4KB, QD32)
- Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Endurance & warranty
2 items
- Manufacturer warranty and endurance
- 5-Year Limited Warrantyor 1200 TBW Limited WarrantySource
- Environment — Reliability (MTBF)
- 1.5 Million Hours Reliability (MTBF)
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Warranty
- 5-Year Limited Warrantyor 1200 TBW Limited Warranty
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Power
4 items
- Special Feature — Device Sleep Mode Support
- Yes
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Environment — Average Power Consumption (system level)
- *Average: 6.1 W*Maximum: 7.2 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Environment — Power consumption (Idle)
- Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Environment — Allowable Voltage
- 3.3 V ± 5 % Allowable voltage
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Features & software
6 items
- Special Feature — TRIM Support
- Supported
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Special Feature — S.M.A.R.T Support
- Supported
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Special Feature — GC (Garbage Collection)
- Auto Garbage Collection Algorithm
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Special Feature — Encryption Support
- AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Special Feature — WWN Support
- Not supported
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Software — Management SW
- Magician Software for SSD management
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Environment & reliability
2 items
- Environment — Operating Temperature
- 0 - 70 ℃ Operating Temperature
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source - Environment — Shock
- 1,500 G & 0.5 ms (Half sine)
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
Compatibility & box
1 item
- General Feature — Application
- Client PCs, Game Consoles
Manufacturer claim in the exact MZ-V8P2T0CW specification. Source wording, unit and scope retained; unlisted conditions remain unknown.
Source
