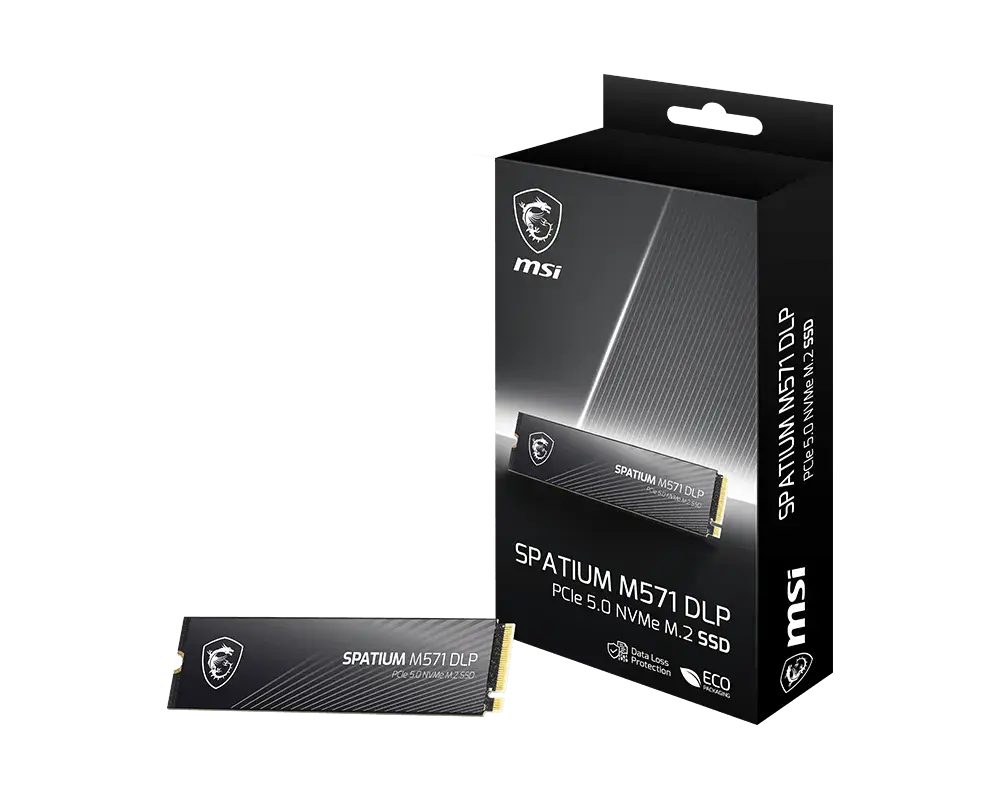

MSI SPATIUM M571 DLP
2 TB · PCIe 5.0 NVMe M.2 2280 without heatsink · MSI part SPATIUM M571 DLP PCIe 5.0 NVMe M.2 2TB
- Capacity
- 2000 GB
- SSD / HDD
- SSD
- Form factor
- M.2 2280
MSI's SPATIUM M571 DLP is a PCIe 5.0 x4 NVMe 2.0 SSD in a bare 2.15 mm M.2 2280 module. It is rated up to 14,500 MB/s read and 11,000 MB/s write, uses a 6 nm Phison E28 controller with LPDDR4 cache, adds MSI's DLP power-loss data protection, and the 2 TB version has a 5-year or 1,400 TB limited warranty.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the MSI SPATIUM M571 DLP gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with MSI SPATIUM M570 HS
Specifications checked 27 Sept 2026Manufacturer specifications, not a hands-on test.
The nearest checked drives by key specifications, with what differs from the MSI SPATIUM M571 DLP. The first matches the Compare button above.
MSI SPATIUM M570 HS2 TB · PCIe 5.0 NVMe M.2 2280 with aluminium heatsink
Gigabyte AORUS Gen5 140002 TB · M.2 2280 without heatsink · AG514K2TB- Interface and version
- PCIe 5.0 x4; NVMeThis one: PCIe 5.0 x4; NVMe 2.0
- Rated sequential write
- 12700 MB/sThis one: 11000 MB/s

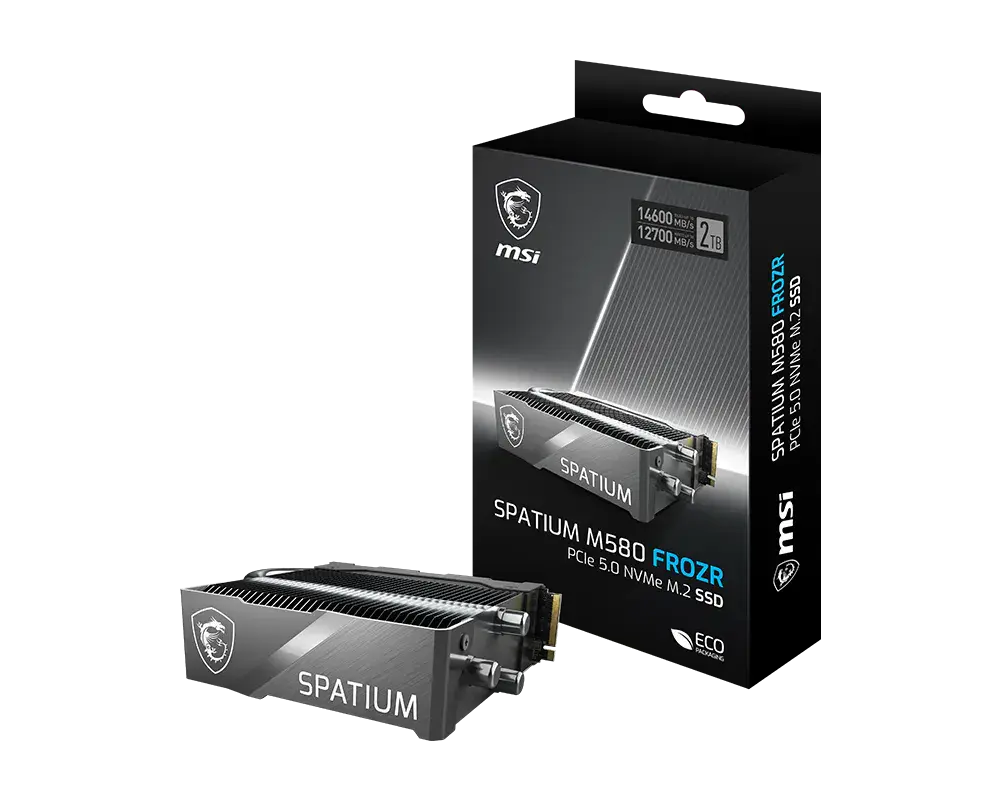

MSI SPATIUM M580 FROZR2 TB · PCIe 5.0 NVMe M.2 2280 with FROZR tower heatsink- Interface and version
- PCIe 5.0 x4; NVMeThis one: PCIe 5.0 x4; NVMe 2.0
- Rated sequential read
- 14600 MB/sThis one: 14500 MB/s
Key strengths
Rated up to 14,500 MB/s sequential read and 11,000 MB/s write, with up to 2.5 million random read and 2.6 million random write IOPS at 2 TB.
MSI lists 6.5 W maximum operating power, 30 mW PS3 idle and 5 mW L1.2 power.
Includes MSI's DLP power-loss data protection feature, a 2 GB LPDDR4 cache at 2 TB and a 1,400 TB warranty write limit.
Before you buy
The data sheet lists no hardware encryption, and MSI does not explain how DLP protects data or state the NAND cell type.
No heatsink is included, and no post-cache write speed is published.
Every specification. With its source.
Full specifications
Exact configuration: 2 TB · PCIe 5.0 NVMe M.2 2280 without heatsink
28 specifications in 6 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 1 row repeats a listed fact in the manufacturer’s own wording, kept under “Manufacturer wording”.
Capacity & format
11 items
- Capacity
- 2000 GB
Manufacturer-listed 2 TB capacity; formatted usable space is lower.
Source - SSD / HDD
- SSDSource
- Form factor
- M.2 2280Source
- Interface and version
- PCIe 5.0 x4; NVMe 2.0
MSI lists compatibility with PCIe Gen5, Gen4, Gen3, Gen2 and Gen1 hosts.
Source - DRAM cache present
- YesSource
- Drive dimensions
- 80 × 22 × 2.15 mm
Length × width × height of the bare module, all capacities.
Source - Controller
- Phison E28Source
- Advertised controller process
- 6 nm
MSI: controller built on TSMC's 6 nm process (the feature heading misprints it as '6mm').
Source - NAND type
- Not listed by the manufacturer
MSI lists 3D NAND without stating the cell type
Source - DRAM cache capacity
- 2 GB
2 GB LPDDR4 for the 2 TB model (1 TB: 1 GB; 4 TB: 4 GB). The data sheet lists 1TB, 2TB and 4TB columns in that order; the 2TB value is the second column.
Source - Factory heatsink
- No
The data sheet lists a 2.15 mm-high bare module and no heatsink.
Source
Performance
4 items
- Rated sequential read
- 14500 MB/s
MSI up-to claims measured as a secondary drive on AMD Ryzen 9 7950X 16-Core @4.50 GHz / MSI MPG X670E CARBON WIFI / Windows 11 Pro 23H2, using CrystalDiskMark, ATTO Disk Benchmark and IOmeter. MSI does not list a post-cache write speed.
Source - Rated sequential write
- 11000 MB/s
MSI up-to claims measured as a secondary drive on AMD Ryzen 9 7950X 16-Core @4.50 GHz / MSI MPG X670E CARBON WIFI / Windows 11 Pro 23H2, using CrystalDiskMark, ATTO Disk Benchmark and IOmeter. MSI does not list a post-cache write speed.
Source - Rated random 4K read
- 2500000 IOPS
MSI up-to 4 KB claim for 2 TB (listed as 2500K); queue depth not stated. The data sheet lists 1TB, 2TB and 4TB columns in that order; the 2TB value is the second column (1TB: 1300K; 4TB: 2600K).
Source - Rated random 4K write
- 2600000 IOPS
MSI up-to 4 KB claim for all capacities (listed as 2600K); queue depth not stated.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Rated performance and conditions
- Up to 14,500 MB/s sequential read; up to 11,000 MB/s sequential write
MSI up-to claims measured as a secondary drive on AMD Ryzen 9 7950X 16-Core @4.50 GHz / MSI MPG X670E CARBON WIFI / Windows 11 Pro 23H2, using CrystalDiskMark, ATTO Disk Benchmark and IOmeter. MSI does not list a post-cache write speed. Single sequential values span all capacities.
Source
Endurance & warranty
4 items
- Warranty write threshold
- 1400 TB
2 TB value (1 TB: 700; 4 TB: 2800); not a guaranteed failure point. The data sheet lists 1TB, 2TB and 4TB columns in that order; the 2TB value is the second column.
Source - Limited warranty time
- 5 years
Time limit, not a lifespan prediction. Coverage also ends at the TBW threshold; eligibility and full terms apply.
Source - Warranty terms and endurance if applicable
- 5 years or 1400 TB written, whichever comes first; limited-warranty terms applySource
- Manufacturer MTBF rating
- Up to 1,500,000 hours
Statistical manufacturer claim, not individual lifespan or guaranteed operating time.
Source
Power
2 items
- Power-loss data protection
- MSI DLP power-loss data protection
MSI: secures critical data during unexpected power outages and reduces the risk of data disappearing. MSI does not describe the mechanism (for example on-board capacitors), so this is not equated with enterprise hardware power-loss protection.
Source - Published power conditions
- 6.5 W maximum operating; 30 mW PS3 idle; 5 mW L1.2
Single values for all capacities, measured on MSI's stated test system; not a constant everyday load.
Source
Features & software
5 items
- Hardware encryption support
- Not listed by the manufacturer
MSI does not state this for this model. · The data sheet's advanced-feature list names wear levelling, bad block management, over-provisioning, firmware upgrade, TRIM and SMART but no encryption.
Source - TRIM support
- Yes
Manufacturer requires operating-system support.
Source - S.M.A.R.T. support
- Yes
Manufacturer monitoring capability, not a remaining-lifespan guarantee.
Source - Listed NAND management features
- Wear levelling; bad block management; over-provisioning; firmware upgradeSource
- Drive management software
- MSI Center
MSI: monitors SSD health status and key performance metrics in real time.
Source
Compare with another drive
More of the nearest checked drives by key specifications, for a side-by-side comparison.

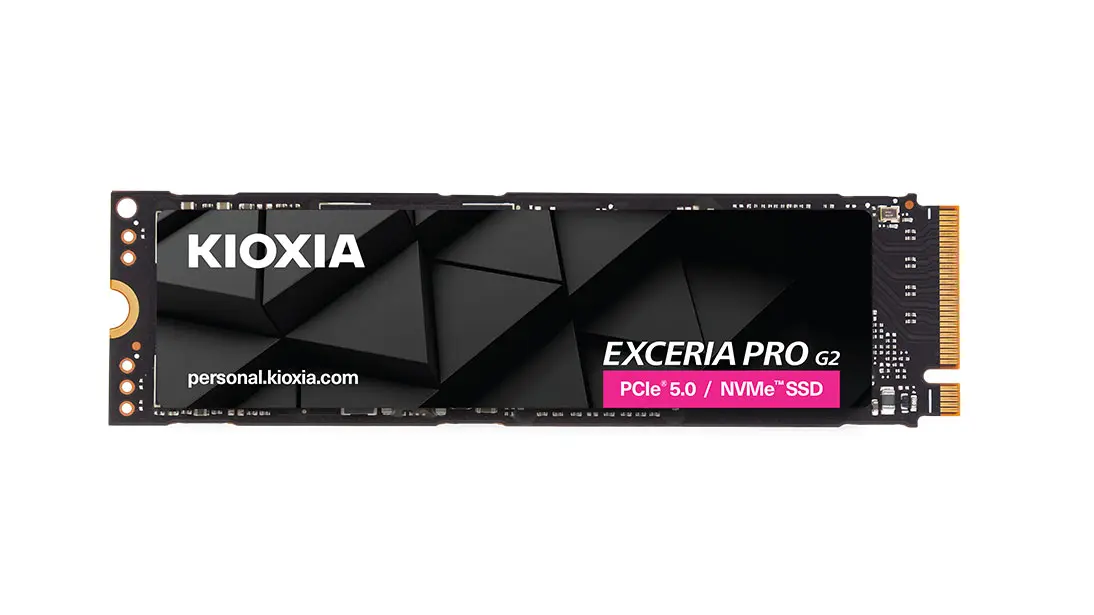

KIOXIA EXCERIA PRO G22,048 GB · LVE10Z2T04G8Compare the two
MSI SPATIUM M5602 TB · PCIe 5.0 NVMe M.2 2280 without heatsinkCompare the two
Samsung 990 PRO2 TB · without factory heatsink · MZ-V9P2T0BWCompare the two
Samsung 990 PRO with Heatsink2 TB · M.2 2280 with factory heatsink · MZ-V9P2T0CWCompare the two

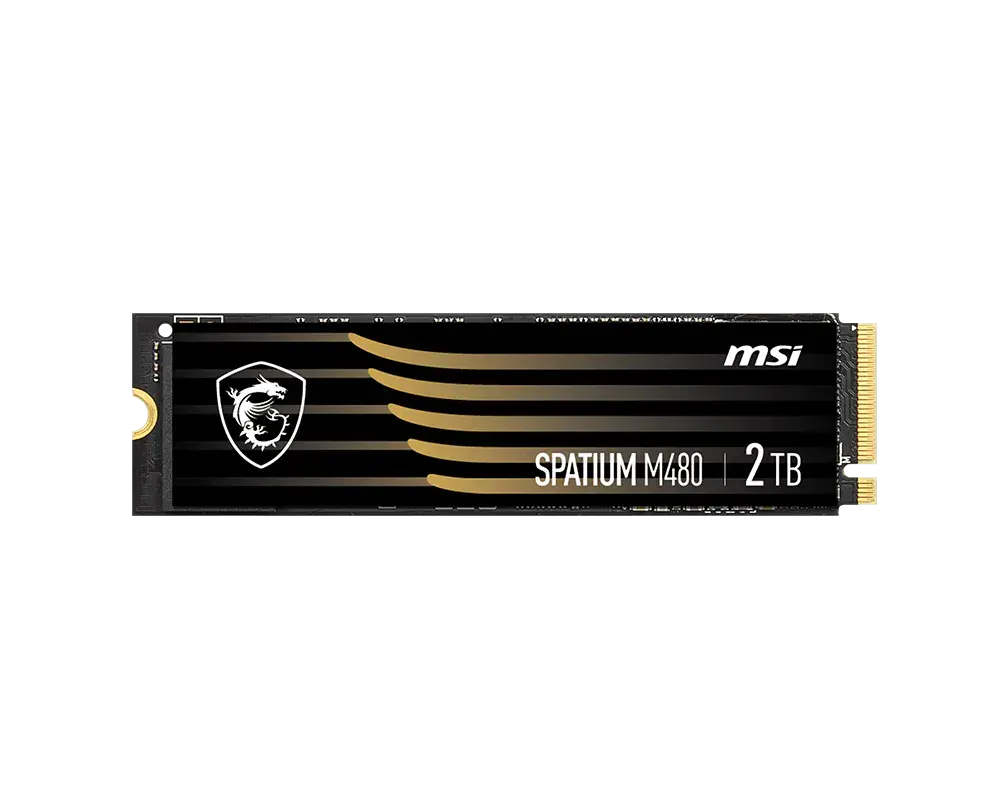

MSI SPATIUM M480 PRO2 TB · PCIe 4.0 NVMe M.2 2280 without heatsinkCompare the two
