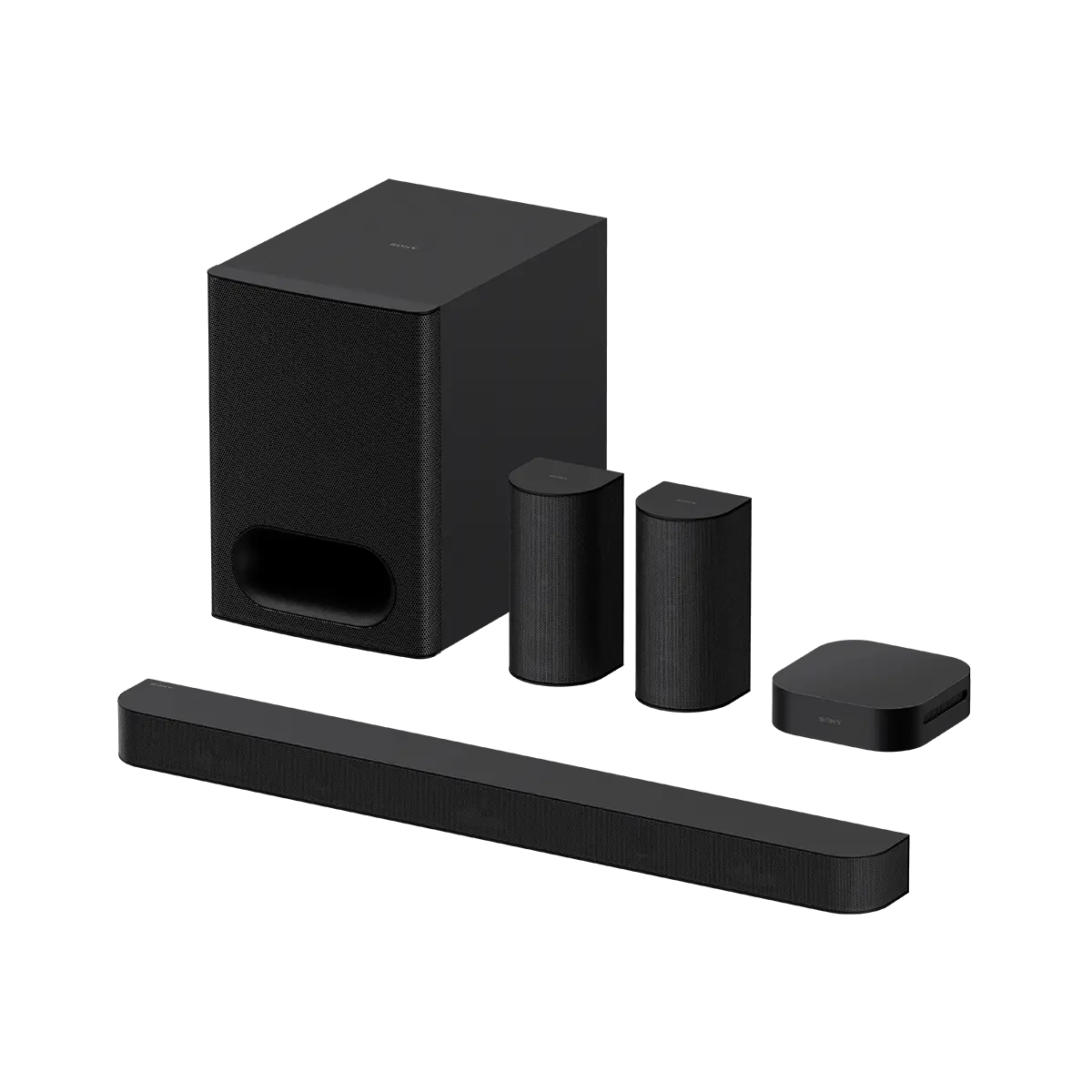

Sony HT-S60

Speaker layout only. Amplifier channel counts, driver counts, virtual surround and accepted audio signal channels remain separate declarations. Speaker Layout — Speaker Structure: 5.1 ch (10 Speaker Units)

Subwoofer — Subwoofer Type: Wired Subwoofer — Subwoofer Type: Wired

Speaker Layout — bar speaker: SS-S60 Speaker Layout — bar speaker: SS-S60

Speaker Layout — Subwoofer: SA-WS60 Speaker Layout — Subwoofer: SA-WS60

Speaker Layout — Rear speaker: SS-SS60 Speaker Layout — Rear speaker: SS-SS60

Original interface direction and receiver/profile wording retained. A Bluetooth version alone does not establish audio input. USB charging-only declarations are separate. Interface — Input and Output Terminals: Optical audio input,Analogue audio input (stereo mini); Audio Formats — BLUETOOTH® COMMUNICATION (RECEIVER): AAC,SBC

Interface — BLUETOOTH® VERSION: Bluetooth® version: 5.3 Interface — BLUETOOTH® VERSION: Bluetooth® version: 5.3

Interface — BLUETOOTH® SUPPORTED CODECS: SBC,AAC Interface — BLUETOOTH® SUPPORTED CODECS: SBC,AAC

HDMI — Number of Input/Output: Input / Output: - / 1 (eARC / ARC) HDMI — Number of Input/Output: Input / Output: - / 1 (eARC / ARC)

HDMI — eARC: Yes HDMI — eARC: Yes

HDMI — BRAVIA Sync: Yes HDMI — BRAVIA Sync: Yes

HDMI — HDMI CEC: Yes HDMI — HDMI CEC: Yes

Audio Formats — HIGH RESOLUTION AUDIO: Yes Audio Formats — HIGH RESOLUTION AUDIO: Yes

Audio Formats — HDMI input: Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,LPCM: 2ch / 5.1ch / 7.1ch,MPEG2-AAC,MPEG4-AAC Audio Formats — HDMI input: Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,LPCM: 2ch / 5.1ch / 7.1ch,MPEG2-AAC,MPEG4-AAC

Audio Formats — HDMI eARC: Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,DTS,DTS ES,DTS 96 / 24,DTS: X,LPCM: 2ch / 5.1ch / 7.1ch Audio Formats — HDMI eARC: Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,DTS,DTS ES,DTS 96 / 24,DTS: X,LPCM: 2ch / 5.1ch / 7.1ch

Audio Formats — OPTICAL INPUT: Dolby Digital,Dolby Digital Plus,Dolby Digital Plus / Atmos,DTS,LPCM 2ch Audio Formats — OPTICAL INPUT: Dolby Digital,Dolby Digital Plus,Dolby Digital Plus / Atmos,DTS,LPCM 2ch

Function With Bravia — FUNCTION WITH BRAVIA: Voice Zoom 3™ , Quick Setting Menu Function With Bravia — FUNCTION WITH BRAVIA: Voice Zoom 3™ , Quick Setting Menu

Eco and energy saving — Wireless Network(s) On/Off Switch: Subwoofer: Press (Muting) , (Volume) -, and (Volume) + in that order within 5 seconds on the supplied remote control to turn on / off the Bluetooth® function. , Wireless Amp: not available Eco and energy saving — Wireless Network(s) On/Off Switch: Subwoofer: Press (Muting) , (Volume) -, and (Volume) + in that order within 5 seconds on the supplied remote control to turn on / off the Bluetooth® function. , Wireless Amp: not available

Literal manufacturer audio output declaration and its attached source footnotes. No RMS standard, channel loading or independent measurement is inferred. Consumption and electrical input are separate. Amplifier — Power Output (Total): 1000 W

Not listed unambiguously by the manufacturer in the cited exact-model full specification table. No driver, signal-format, charging or consumption figure is substituted. · Electrical input requirements only. Consumption watts and an adapter named in the box do not establish supply voltage or rated audio output.

Amplifier — Amplifier Type: Digital Amplifier, S-Master Amplifier — Amplifier Type: Digital Amplifier, S-Master

Amplifier — Amplifier Channels: 5.1 ch Amplifier — Amplifier Channels: 5.1 ch

Details — POWER CONSUMPTION *APPROX: Subwoofer 60 W / Wireless Amp 30 W Details — POWER CONSUMPTION *APPROX: Subwoofer 60 W / Wireless Amp 30 W

Eco and energy saving — Power Consumption (Off Mode): Subwoofer: not available, Wireless Amp: 0.3 W Eco and energy saving — Power Consumption (Off Mode): Subwoofer: not available, Wireless Amp: 0.3 W

Eco and energy saving — POWER CONSUMPTION (STANDBY MODE / LOW POWER MODE): Subwoofer: 0.5 W, Wireless Amp: not available Eco and energy saving — POWER CONSUMPTION (STANDBY MODE / LOW POWER MODE): Subwoofer: 0.5 W, Wireless Amp: not available

Eco and energy saving — OFF MODE / STANDBY MODE / LOW POWER MODE ACTIVATED: Subwoofer: After 20 minutes, Wireless Amp: not available Eco and energy saving — OFF MODE / STANDBY MODE / LOW POWER MODE ACTIVATED: Subwoofer: After 20 minutes, Wireless Amp: not available

Eco and energy saving — Power Consumption (Network Standby Mode) – Terminals: Subwoofer: 0.5 W (HDMI CEC) , 2.0 W (Bluetooth® function, all terminals and networks connected) , Wireless Amp: 0.5 W (Wireless Audio, all terminals and networks connected) Eco and energy saving — Power Consumption (Network Standby Mode) – Terminals: Subwoofer: 0.5 W (HDMI CEC) , 2.0 W (Bluetooth® function, all terminals and networks connected) , Wireless Amp: 0.5 W (Wireless Audio, all terminals and networks connected)

Eco and energy saving — Networked Standby Mode Activated – Terminals: Subwoofer: After 20 minutes (HDMI CEC, Bluetooth® function) / Wireless Amp: After 20 minutes (Wireless Audio) Eco and energy saving — Networked Standby Mode Activated – Terminals: Subwoofer: After 20 minutes (HDMI CEC, Bluetooth® function) / Wireless Amp: After 20 minutes (Wireless Audio)

Sound Function — Sound Mode: Sound Field (Upmix / Multi Stereo) Sound Function — Sound Mode: Sound Field (Upmix / Multi Stereo)

Sound Function — Sound Effect: Night Mode,Voice Mode Sound Function — Sound Effect: Night Mode,Voice Mode

Sound Function — Virtual Surround Technology: S-Force PRO,Vertical Surround Engine,DTS Virtual: X Sound Function — Virtual Surround Technology: S-Force PRO,Vertical Surround Engine,DTS Virtual: X

Sound Function — SOUND ENHANCEMENT TECHNOLOGY: DSEE Sound Function — SOUND ENHANCEMENT TECHNOLOGY: DSEE

Application — SONY | BRAVIA CONNECT: Yes Application — SONY | BRAVIA CONNECT: Yes

Component, stand, bracket, axes and original units retained. No control-box, subwoofer or packaging measurement becomes the complete system dimension. Size & Weight — MAIN UNIT SIZE - BODY ONLY (W x H x D): 907 x 64 x 90 mm; Size & Weight — MAIN UNIT SIZE - BODY ONLY (W x H x D) (INCH): 35 3/4 in x 2 5/8 in x 3 5/8 inch; Size & Weight — SUBWOOFER SIZE (W x H x D) (MM): 275 x 388 x 388 mm; Size & Weight — Rear Speaker Size (W X H X D) (MM): 106 x 216 x 98 mm; Size & Weight — REAR SPEAKER SIZE(W X H X D) (INCH): 4 1/4 in x 8 5/8 in x 3 7/8 inch; Size & Weight — AMP BOX(W X H X D): 175 x 52 x 175 mm; Size & Weight — AMP BOX(W X H X D)(INCH): 7 in x 2 1/8 in x 7 inch

Size & Weight — MAIN UNIT WEIGHT - BODY ONLY: 2.6 kg Size & Weight — MAIN UNIT WEIGHT - BODY ONLY: 2.6 kg

Size & Weight — MAIN UNIT WEIGHT - BODY ONLY (OZ): 5 lb 12 oz Size & Weight — MAIN UNIT WEIGHT - BODY ONLY (OZ): 5 lb 12 oz

Size & Weight — SUBWOOFER WEIGHT (KG): 11.6 kg Size & Weight — SUBWOOFER WEIGHT (KG): 11.6 kg

Size & Weight — Rear Speaker Weight (kg): 0.89 kg Size & Weight — Rear Speaker Weight (kg): 0.89 kg

Size & Weight — REAR SPEAKER WEIGHT (OZ): 1 lb 16 oz Size & Weight — REAR SPEAKER WEIGHT (OZ): 1 lb 16 oz

Size & Weight — AMP BOX(KG): 0.76 kg Size & Weight — AMP BOX(KG): 0.76 kg

Size & Weight — AMP BOX(OZ): 1 lb 11 oz Size & Weight — AMP BOX(OZ): 1 lb 11 oz

Details — Wall-mountable: Yes Details — Wall-mountable: Yes

Literal inclusions and exclusions retained; an optional compatible speaker or subwoofer is not inferred to be included. Summary — WHAT'S IN THE BOX: AC Cord Batteries for remote commander Foot HDMI Cable Plug Adaptor Quick Setup Guide Reference Guide Remote Control Wall mounting template Warranty Card
