Sony HT-A3000

Speaker layout only. Amplifier channel counts, driver counts, virtual surround and accepted audio signal channels remain separate declarations. Speaker Layout — Speaker Structure: 3.1ch (Built-in-Subwoofer)

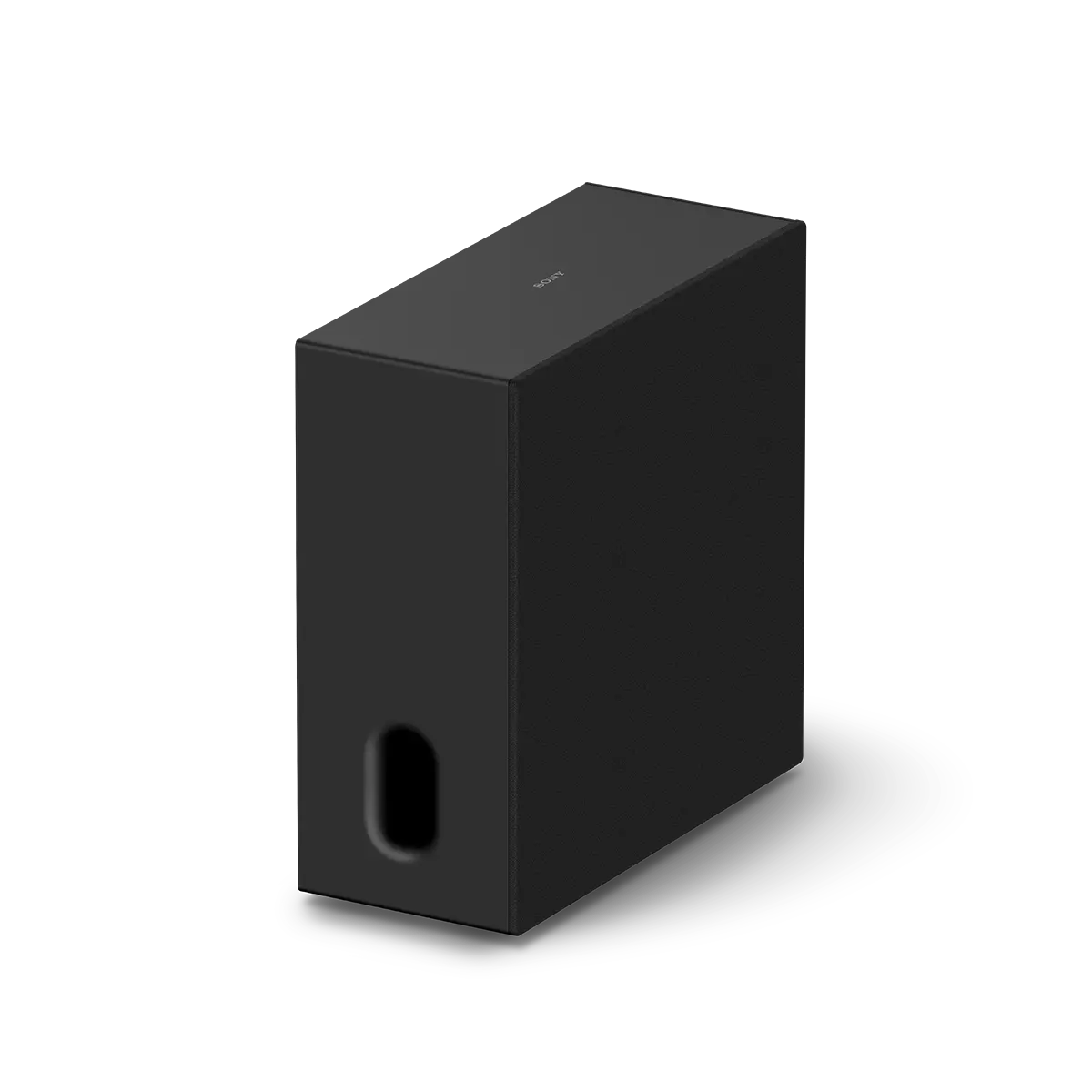

Subwoofer — Subwoofer Type: Built-in Subwoofer Subwoofer — Subwoofer Type: Built-in Subwoofer

Speaker Layout — Subwoofer: Built-in Subwoofer Speaker Layout — Subwoofer: Built-in Subwoofer

Original interface direction and receiver/profile wording retained. A Bluetooth version alone does not establish audio input. USB charging-only declarations are separate. Interface — Input and Output Terminals: Optical-audio input, USB typeA,exFAT,FAT12 / 16 / 32,vFAT; Audio Formats — BLUETOOTH® COMMUNICATION (RECEIVER): SBC,AAC, LDAC

Interface — IEEE802.11 version: a / b / g / n / ac Interface — IEEE802.11 version: a / b / g / n / ac

Interface — Bluetooth: RX / TX Interface — Bluetooth: RX / TX

Interface — BLUETOOTH® VERSION: Ver.5.0 Interface — BLUETOOTH® VERSION: Ver.5.0

Interface — HDCP2.2: Yes Interface — HDCP2.2: Yes

HDMI — Number of Input/Output: Input / Output: - / 1 (eARC / ARC) HDMI — Number of Input/Output: Input / Output: - / 1 (eARC / ARC)

HDMI — eARC: Yes HDMI — eARC: Yes

HDMI — BRAVIA Sync: Yes HDMI — BRAVIA Sync: Yes

HDMI — HDMI CEC: Yes HDMI — HDMI CEC: Yes

Audio Formats — HDMI eARC: Dolby Digital,Dolby Digital Plus,Dolby TrueHD, Dolby Atmos,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,LPCM5ch/5.1ch/7.1ch, LPCM 192kHz/24but Audio Formats — HDMI eARC: Dolby Digital,Dolby Digital Plus,Dolby TrueHD, Dolby Atmos,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,LPCM5ch/5.1ch/7.1ch, LPCM 192kHz/24but

Audio Formats — OPTICAL INPUT: Dolby Digital, Dolby Dual mono, DTS, LPCM 2ch, LPCM 48kHz/24bit Audio Formats — OPTICAL INPUT: Dolby Digital, Dolby Dual mono, DTS, LPCM 2ch, LPCM 48kHz/24bit

Audio Formats — USB: DSD (.dsf / .dff ) DSD 5.6MHz, WAV,Flac,ALAC (.m4a, .mov) ,AIFF (.aiff, .aif) ,HE AAC,AAC,MP3,Monkey Audio,WMA,Ogg Vorbis Audio Formats — USB: DSD (.dsf / .dff ) DSD 5.6MHz, WAV,Flac,ALAC (.m4a, .mov) ,AIFF (.aiff, .aif) ,HE AAC,AAC,MP3,Monkey Audio,WMA,Ogg Vorbis

Audio Formats — BLUETOOTH® COMMUNICATION (TRANSMITTER): SBC, LDAC Audio Formats — BLUETOOTH® COMMUNICATION (TRANSMITTER): SBC, LDAC

Network Function — Network Function: Chromecast built-in,Spotify Connect,Music Service Button,Works with Google Assistant, Works with Alexa Network Function — Network Function: Chromecast built-in,Spotify Connect,Music Service Button,Works with Google Assistant, Works with Alexa

Wireless Features — Wireless Surround (with optional wireless speakers): Yes Wireless Features — Wireless Surround (with optional wireless speakers): Yes

Wireless Features — TV Wireless connection: Yes Wireless Features — TV Wireless connection: Yes

Eco and energy saving — Wireless Network(s) On/Off Switch: To turn WiFi function and Bluetooth® function each, press HOME button and select below. 1. [Setup] - [Advanced Settings] - [Network Settings] - [Wi-Fi Connection] - [On/Off] 2. [Setup] - [Advanced Settings] - [Bluetooth Settings] - [Bluetooth Mode] - [Receiver/Transmitter/Off] Eco and energy saving — Wireless Network(s) On/Off Switch: To turn WiFi function and Bluetooth® function each, press HOME button and select below. 1. [Setup] - [Advanced Settings] - [Network Settings] - [Wi-Fi Connection] - [On/Off] 2. [Setup] - [Advanced Settings] - [Bluetooth Settings] - [Bluetooth Mode] - [Receiver/Transmitter/Off]

Literal manufacturer audio output declaration and its attached source footnotes. No RMS standard, channel loading or independent measurement is inferred. Consumption and electrical input are separate. Amplifier — Power Output (Total): 250W

Not listed unambiguously by the manufacturer in the cited exact-model full specification table. No driver, signal-format, charging or consumption figure is substituted. · Electrical input requirements only. Consumption watts and an adapter named in the box do not establish supply voltage or rated audio output.

Amplifier — Amplifier Type: Digital Amplifier,S-Master Amplifier — Amplifier Type: Digital Amplifier,S-Master

Amplifier — Amplifier Channels: 5ch Amplifier — Amplifier Channels: 5ch

Details — POWER CONSUMPTION *APPROX: 50W Details — POWER CONSUMPTION *APPROX: 50W

Details — Power consumption(on QuickStart mode): Less than 0.5W Details — Power consumption(on QuickStart mode): Less than 0.5W

Details — Power consumption(on Remote Start mode): Less than 3W Details — Power consumption(on Remote Start mode): Less than 3W

Eco and energy saving — Power Consumption (Off Mode): not available Eco and energy saving — Power Consumption (Off Mode): not available

Eco and energy saving — POWER CONSUMPTION (STANDBY MODE / LOW POWER MODE): 0.5 W Eco and energy saving — POWER CONSUMPTION (STANDBY MODE / LOW POWER MODE): 0.5 W

Eco and energy saving — OFF MODE / STANDBY MODE / LOW POWER MODE ACTIVATED: After 20 minutes Eco and energy saving — OFF MODE / STANDBY MODE / LOW POWER MODE ACTIVATED: After 20 minutes

Eco and energy saving — Power Consumption (Network Standby Mode) – Terminals: 0.5 W (HDMI CEC) / 3.0 W (WiFi, Bluetooth® connection, all terminals and networks connected) [Wi-Fi port and Ethernet port have router function which can forward audio data to some other Sony audio products.] Eco and energy saving — Power Consumption (Network Standby Mode) – Terminals: 0.5 W (HDMI CEC) / 3.0 W (WiFi, Bluetooth® connection, all terminals and networks connected) [Wi-Fi port and Ethernet port have router function which can forward audio data to some other Sony audio products.]

Eco and energy saving — Networked Standby Mode Activated – Terminals: After 20 minutes (HDMI CEC, WiFi, Bluetooth® connection) Eco and energy saving — Networked Standby Mode Activated – Terminals: After 20 minutes (HDMI CEC, WiFi, Bluetooth® connection)

Sound Function — Sound Mode: Sound Field Sound Function — Sound Mode: Sound Field

Sound Function — Sound Effect: Night Mode,Voice Mode, Immersive Audio Enhancement(with Sound Field on) Sound Function — Sound Effect: Night Mode,Voice Mode, Immersive Audio Enhancement(with Sound Field on)

Sound Function — Virtual Surround Technology: S-Force PRO,Vertical Surround Engine,360 Spatial sound mapping, Dolby Speaker Virtual, DTS Virtual: X Sound Function — Virtual Surround Technology: S-Force PRO,Vertical Surround Engine,360 Spatial sound mapping, Dolby Speaker Virtual, DTS Virtual: X

Component, stand, bracket, axes and original units retained. No control-box, subwoofer or packaging measurement becomes the complete system dimension. Size & Weight — MAIN UNIT SIZE - BODY ONLY (W x H x D): 950mm X 64mm X 128mm

Size & Weight — MAIN UNIT WEIGHT - BODY ONLY: 4.6kg Size & Weight — MAIN UNIT WEIGHT - BODY ONLY: 4.6kg

Details — Wall-mountable: Yes Details — Wall-mountable: Yes

Not listed unambiguously by the manufacturer in the cited exact-model full specification table. No driver, signal-format, charging or consumption figure is substituted. · Literal inclusions and exclusions retained; an optional compatible speaker or subwoofer is not inferred to be included.
