Key strengths
Bluetooth plus two RCA input pairs that share one PC/AUX mode; the volume knob or the remote switches between PC/AUX and Bluetooth.
Side-panel bass and treble dials, and cabinets angled upward at 10 degrees.
SPEAKERS
Edifier R1700BT
Brown

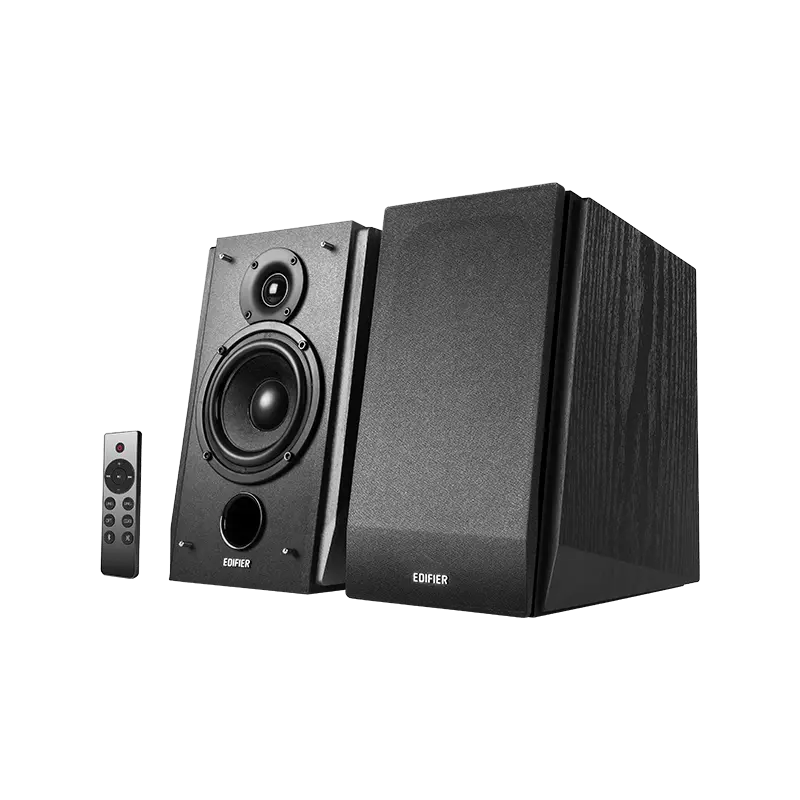

The R1700BT is an active/passive bookshelf pair with a 4-inch mid-bass driver and 19 mm silk-dome tweeter per side, rated 66 W RMS in total across separate tweeter and mid-bass amplifiers. It takes Bluetooth and two RCA inputs, with bass, treble and volume controls on the active speaker and an infrared remote.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the Edifier R1700BT gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with Logitech Z207
Specifications checked 26 Sept 2026Manufacturer specifications, not a hands-on test.
Before you buy
No optical, USB or 3.5 mm socket; a phone or PC headphone output needs the supplied 3.5 mm–RCA cable.
The remote covers power, mute, volume and input only; tone changes are made on the speaker.
Every specification. With its source.
Full specifications
Exact configuration: Brown
16 specifications in 7 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
System & drivers
3 items
- Channel configuration
- Stereo pair: one active speaker and one passive speaker
The passive speaker connects to the active unit's speaker output with the supplied cable.
- Woofer size
- 4 in
The manual also gives 116 mm; nominal size, not a conversion.
- Tweeter size
- 19 mm
Silk-dome tweeter; product page states 0.75 inch.
Sound specifications & calls
2 items
- Frequency response
- 60 Hz–20 kHz
No tolerance published.
- Signal-to-noise ratio
- ≥85 dB(A)
Inputs & connections
3 items
- Audio inputs
- Bluetooth 5.1 and two analogue RCA input pairs (PC IN and AUX IN)
Bluetooth version is from the current UK/US specification; the manual lists input type PC/AUX/Bluetooth without a version. The two RCA pairs share one PC/AUX input mode: if two sources are connected at the same time, both signals play. A 3.5 mm source uses the supplied 3.5 mm–RCA cable. No USB, optical or 3.5 mm socket.
- Input sensitivity
- PC IN: 500 ± 50 mV; AUX: 500 ± 50 mV; Bluetooth: 400 mFFS ± 50 mFFS
Current Edifier UK and US product-page figures; the Edifier US store gives the same values but labels the first RCA input 'RCA' instead of 'PC IN'. The 2023 manual's specification section lists no input sensitivity.
- Bluetooth version
- 5.1
Current product-page figure; codecs are not published.
Amplifier, power & battery
2 items
- Rated power and measurement basis
- 66 W total RMS: 15 W × 2 (tweeter) + 18 W × 2 (mid-bass)
Manufacturer rating for the pair, given separately for the two tweeter channels and the two mid-bass channels; load and distortion limits not stated. Not 66 W per cabinet or mains consumption. Edifier describes a Class-D amplifier system with Digital Signal Processing (DSP) and Dynamic Range Control (DRC).
- Power supply
- Mains-powered: fixed power cord and power switch on the active speaker (Class II, double-insulated); operating voltage printed on the product plate
Edifier publishes no rated mains voltage/frequency for this model in its English manual or on its UK/US pages; the manual directs users to the voltage on the product plate and to a matching AC outlet. UK and US units are separate regional packages; do not assume a unit from one region works on the other's mains or plug. The manual marks its plug drawings as illustrative only.
Source
Controls & software
2 items
Size, weight & build
3 items
- Dimensions of each unit
- Active: 154 × 254 × 214 mm; passive: 154 × 254 × 209 mm (W × H × D)
US store gives both cabinets; the UK/US product pages give only 154 × 254 × 214 mm (active).
- Weight
- Not listed by the manufacturer
Edifier lists 'Net Weight: 6.6kg' for this active/passive product without stating whether it is the pair or one speaker (dimensions are given per speaker or per cabinet), so no like-for-like weight is asserted.
- Enclosure
- MDF enclosure with bases angled at a 10-degree inclineSource
Box, compatibility & warranty
1 item
- Included units / accessories
- Active and passive speakers, remote control, speaker connecting cable, RCA–RCA cable, 3.5 mm–RCA cable and user manual
Manual box inventory; the US store list names only speakers, the two audio cables and manual. The remote uses a CR2025 coin cell.
