MSI MAG 346CQDF E20
Global manufacturer model · regional retail SKU not specified
- Manufacturer display diagonal
- 34 in
- Manufacturer panel resolution
- 3440x1440 (UWQHD)
- Panel technology
- Rapid VA
MSI MAG 346CQDF E20 in the manufacturer's documented model configuration.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the MSI MAG 346CQDF E20 gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with MSI Modern MD342CQPW
Specifications checked 20 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked monitors by key specifications, with what differs from the MSI MAG 346CQDF E20. The first matches the Compare button above.
MSI Modern MD342CQPWUK manufacturer catalogue configuration · 9S6-3PC59H-014
MSI MPG 341CQR QD-OLED X36UK manufacturer catalogue configuration · 9S6-3DE29A-003- Panel technology
- QD-OLEDThis one: Rapid VA
MSI PRO MP341CQUK manufacturer catalogue configuration · 9S6-3PB2CT-017- Panel technology
- VAThis one: Rapid VA
Key strengths
The exact manufacturer model identifies the published hardware and connections together with its original image.
Before you buy
Figures are manufacturer claims, with the stated modes and conditions. Regional retail SKU, retailer stock and unstated measurements are not established; conflicting manufacturer dimensions remain unresolved.
Every specification. With its source.
Full specifications
Exact configuration: Global manufacturer model · MAG 346CQDF E20 · regional retail SKU not specified
37 specifications in 10 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 3 rows repeat listed facts in the manufacturer’s own wording, kept under “Manufacturer wording”.
Screen & panel
10 items
- Manufacturer display diagonal
- 34 in
Exact manufacturer panel-size figure; no diagonal is inferred from the model name.
Source - Manufacturer panel resolution
- 3440x1440 (UWQHD)
Source heading: panel resolution. Original manufacturer scope and qualifications retained.
Source - Panel technology
- Rapid VA
Source heading: panel type. Original manufacturer scope and qualifications retained.
Source - Panel Size
- 34"
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Curvature
- Curve 1500R
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Panel Type
- Rapid VA
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Pixel Pitch (H x V)
- 0.23175(H) x 0.23175(V)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Aspect Ratio
- 21:9
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Viewing Angle
- 178° (H) / 178° (V)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Surface Treatment
- Anti-glare
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Panel Resolution
- 3440x1440 (UWQHD)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Refresh & response
6 items
- Declared refresh at the stated panel resolution
- Not listed by the manufacturer
Not listed by the manufacturer in this exact model's specification page. · Manufacturer refresh row: UWQHD : 200Hz HD : 400Hz. Dual-mode and signal-frequency ranges are separate source rows; ambiguous mode mappings remain unknown.
Source - Signal Frequency
- 71.6~298 KHz(H) / 48~200 Hz(V)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - ACTIVATED RANGE
- UWQHD (3440 x 1440): 48~200Hz HD (1720 x 720): 48~400Hz
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Refresh Rate
- UWQHD: 200Hz HD: 400Hz
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Response time
- 0.5ms (GtG, Min.)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - DYNAMIC REFRESH RATE TECHNOLOGY
- AMD FreeSync™ Premium
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Colour, brightness & HDR
6 items
- Brightness (nits)
- SDR: 300 cd/m²
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Contrast Ratio
- 4000:1
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - DCR
- 100000000:1
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - HDR Support
- HDR Ready
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Adobe RGB / DCI-P3 / sRGB
- 85% / 95% / 120% (CIE1976 Standard)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Display Colors
- 1.07B, 10 bits (8 bits + FRC)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Inputs & connections
1 item
- Video ports
- 1x DisplayPort 1.4a(HBR3) 2x HDMI™ 2.0b (UWQHD@100Hz)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Manufacturer inputs and connections
- 1x DisplayPort 1.4a(HBR3) 2x HDMI™ 2.0b (UWQHD@100Hz); 1x Headphone-out
Exact video, audio and USB rows. Versions and mode conditions remain unchanged.
Source
Stand & mounting
3 items
- Adjustment (Tilt)
- −5° to 20°
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Kensington Lock
- Yes
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - VESA Mounting
- 100 x 100 mm
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Size, weight & build
6 items
- Dimensions and manufacturer stand basis
- 808 x 269.49 x 458.82 mm (31.81 x 10.61 x 18.06 inch)
Manufacturer heading: dimension with stand (w x d x h). Original axes and stand basis are retained; no axis or height correction is inferred.
Source - Active Display Area (mm)
- 797.22 (H) x 333.72 (V)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Dimension without Stand (W x D x H)
- 808 x 111.93 x 363.92 mm (31.81 x 4.41 x 14.33 inch)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Weight Without Stand
- 5.6 kg (12.35 lbs)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Weight (NW / GW)
- 6.37 kg (14.04 lbs) / 9.93 kg (21.89 lbs)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Carton Dimension (W X D X H)
- 920 x 170 x 463mm (36.22 x 6.69 x 18.23 inch)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Dimension with Stand (W x D x H)
- 808 x 269.49 x 458.82 mm (31.81 x 10.61 x 18.06 inch)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Power & energy
2 items
- Power Type
- Internal Power Board
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Power Input
- 100~240V, 50/60Hz
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Audio
1 item
- Audio ports
- 1x Headphone-out
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Box, warranty & identity
1 item
- Accessories
- 1x DisplayPort Cable (1.4a), 1x Power Cord (C13), 1x Quick Guide
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Other details
1 item
- Note
- HDMI™: UWQHD: 3440 x 1440 (Up to 100Hz) HD: 1720 x 720 (Up to 400Hz) DisplayPort: 3440 x 1440 (Up to 200Hz) HD: 1720 x 720 (Up to 400Hz) Support: HDMI™ CEC, PIP/PBP; Non Support: KVM
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Compare with another monitor
More of the nearest checked monitors by key specifications, for a side-by-side comparison.
MSI MAG 345CQRF E20Global manufacturer model · MAG 345CQRF E20 · regional retail SKU not specifiedCompare the two
MSI MAG 342CQRF E20Global manufacturer model · MAG 342CQRF E20 · regional retail SKU not specifiedCompare the two
MSI MPG 346CQRF X24Global manufacturer model · MPG 346CQRF X24 · regional retail SKU not specifiedCompare the two
MSI MAG 346CQGlobal manufacturer model · MAG 346CQ · regional retail SKU not specifiedCompare the two
MSI MAG 342CQR E2Global manufacturer model · MAG 342CQR E2 · regional retail SKU not specifiedCompare the two
MSI MAG 345CQRGlobal manufacturer model · MAG 345CQR · regional retail SKU not specifiedCompare the two
MSI Optix MAG342CQRGlobal manufacturer model · Optix MAG342CQR · regional retail SKU not specifiedCompare the two

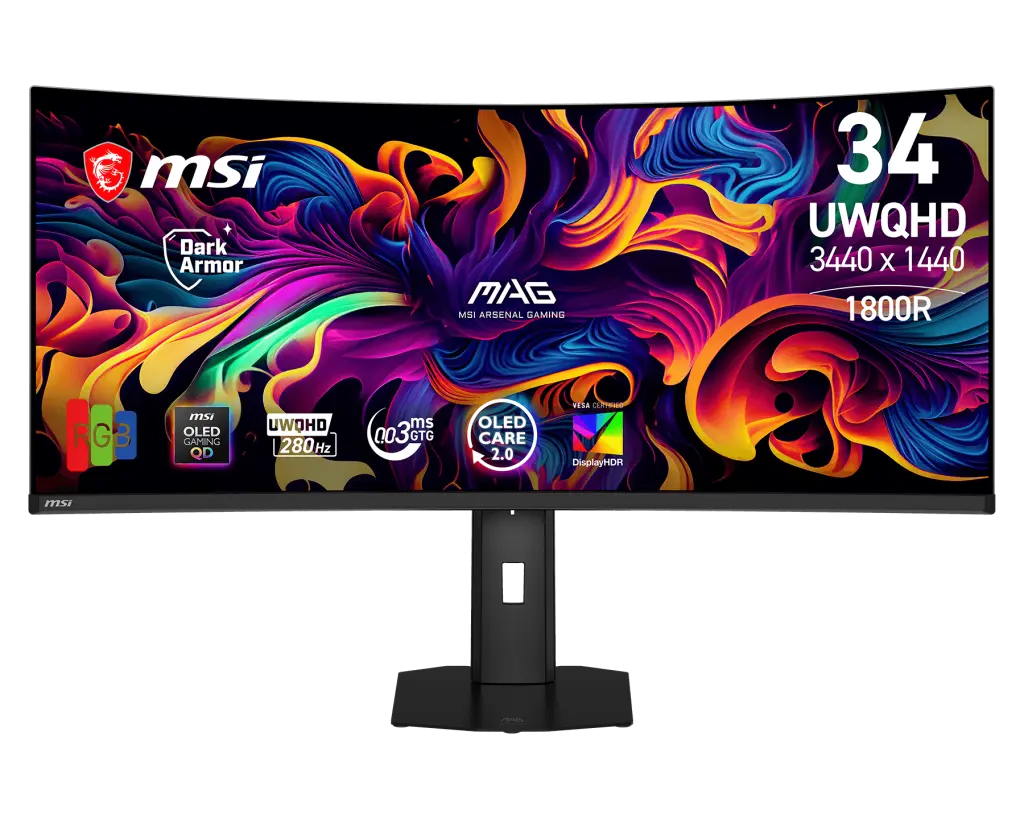

MSI MAG 341CQP QD-OLED X28UK manufacturer catalogue configuration · 9S6-3DE39T-003Compare the two
