MSI GeForce RTX™ 5080 16G INSPIRE 3X
Global manufacturer model · regional retail SKU not specified · MSI part G5080-16I3
- Declared VRAM capacity
- 16 GB
- VRAM technology
- GDDR7
- Manufacturer exact-board power
- 360 W
MSI GeForce RTX™ 5080 16G INSPIRE 3X in the manufacturer's documented model configuration.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the MSI GeForce RTX™ 5080 16G INSPIRE 3X gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC
Specifications checked 20 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked graphics cards by key specifications, with what differs from the MSI GeForce RTX™ 5080 16G INSPIRE 3X. The first matches the Compare button above.
MSI GeForce RTX 5070 Ti 16G SHADOW 3X OC16 GB GDDR7 · Black · exact board configuration · MSI global specification
MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC16 GB GDDR7 · Silver / black · exact board configuration · MSI global specification- Manufacturer exact-board power
- 300 WThis one: 360 W
- Recommended system PSU
- 750 WThis one: 850 W
MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC PLUS16 GB GDDR7 · Black · exact board configuration · MSI global specification- Manufacturer exact-board power
- 300 WThis one: 360 W
- Recommended system PSU
- 750 WThis one: 850 W
Key strengths
The exact manufacturer model identifies the published hardware and connections together with its original image.
Before you buy
Figures are manufacturer claims, with the stated modes and conditions. Regional retail SKU, retailer stock and unstated measurements are not established; conflicting manufacturer dimensions remain unresolved.
Every specification. With its source.
Full specifications
Exact configuration: Global manufacturer model · G5080-16I3 · regional retail SKU not specified
22 specifications in 8 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 9 rows repeat listed facts in the manufacturer’s own wording, kept under “Manufacturer wording”.
GPU & clocks
3 items
- Manufacturer GPU and exact board model
- NVIDIA® GeForce RTX™ 5080
Board identity is the separately cited exact manufacturer model; no reference-board figures are substituted.
Source - Core Clocks
- Extreme Performance: 2625 MHz (MSI Center) Boost: 2617 MHz
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - CUDA ® CORES
- 10752 Units
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Graphics Processing Unit
- NVIDIA® GeForce RTX™ 5080
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Interface & board
1 item
- Interface
- PCI Express® Gen 5
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Video memory
4 items
- Declared VRAM capacity
- 16 GBSource
- VRAM technology
- GDDR7Source
- Memory Speed
- 30 Gbps
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Memory Bus
- 256-bit
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Manufacturer wording (2)
The same facts in the manufacturer’s combined or original wording, each with its source.
Power
3 items
- Manufacturer exact-board power
- 360 W
Exact-board consumption only; no recommended PSU or GPU reference value is substituted.
Source - Recommended system PSU
- 850 W
System PSU recommendation, separate from card power consumption.
Source - On-board power connectors
- 16-pin x 1 (ATX 3.1 PSU recommended)
Source heading: power connectors. Original manufacturer scope and qualifications retained.
Source
Manufacturer wording (4)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Exact-board power consumption claim
- 360W
Exact manufacturer board consumption, separate from recommended system PSU wattage.
Source - Power consumption
- 360W
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Power connectors
- 16-pin x 1 (ATX 3.1 PSU recommended)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Recommended PSU
- 850W
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Size & fit
2 items
- Card dimensions and axis basis
- 288 x 112 x 50 mm
Source heading: card dimension (mm). Original manufacturer scope and qualifications retained.
Source - Weight (Card / Package)
- 950 g / 1437 g
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Card Dimension (mm)
- 288 x 112 x 50 mm
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Display outputs
4 items
- Display outputs and versions
- DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
Source heading: output. Original manufacturer scope and qualifications retained.
Source - HDCP Support
- Y
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Maximum Displays
- 4
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Digital Maximum Resolution
- 7680 x 4320
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Output
- DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Graphics features
3 items
- DirectX Version Support
- 12 Ultimate
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - OpenGL Version Support
- 4.6
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - G-SYNC ® technology
- Y
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Box & warranty
2 items
- Marketing Name
- GeForce RTX™ 5080 16G INSPIRE 3X
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source - Model Name
- G5080-16I3
Literal manufacturer specification row. Original units, modes, test conditions and supplied-versus-supported scope are retained.
Source
Compare with another graphics card
More of the nearest checked graphics cards by key specifications, for a side-by-side comparison.
MSI GeForce RTX 5080 16G VENTUS 3X OC PLUS16 GB GDDR7 · Silver / black · exact board configuration · MSI global specificationCompare the two
MSI GeForce RTX 5080 16G GAMING TRIO OCG5080-16GTC · 16 GB GDDR7 · MSI global board specificationCompare the two

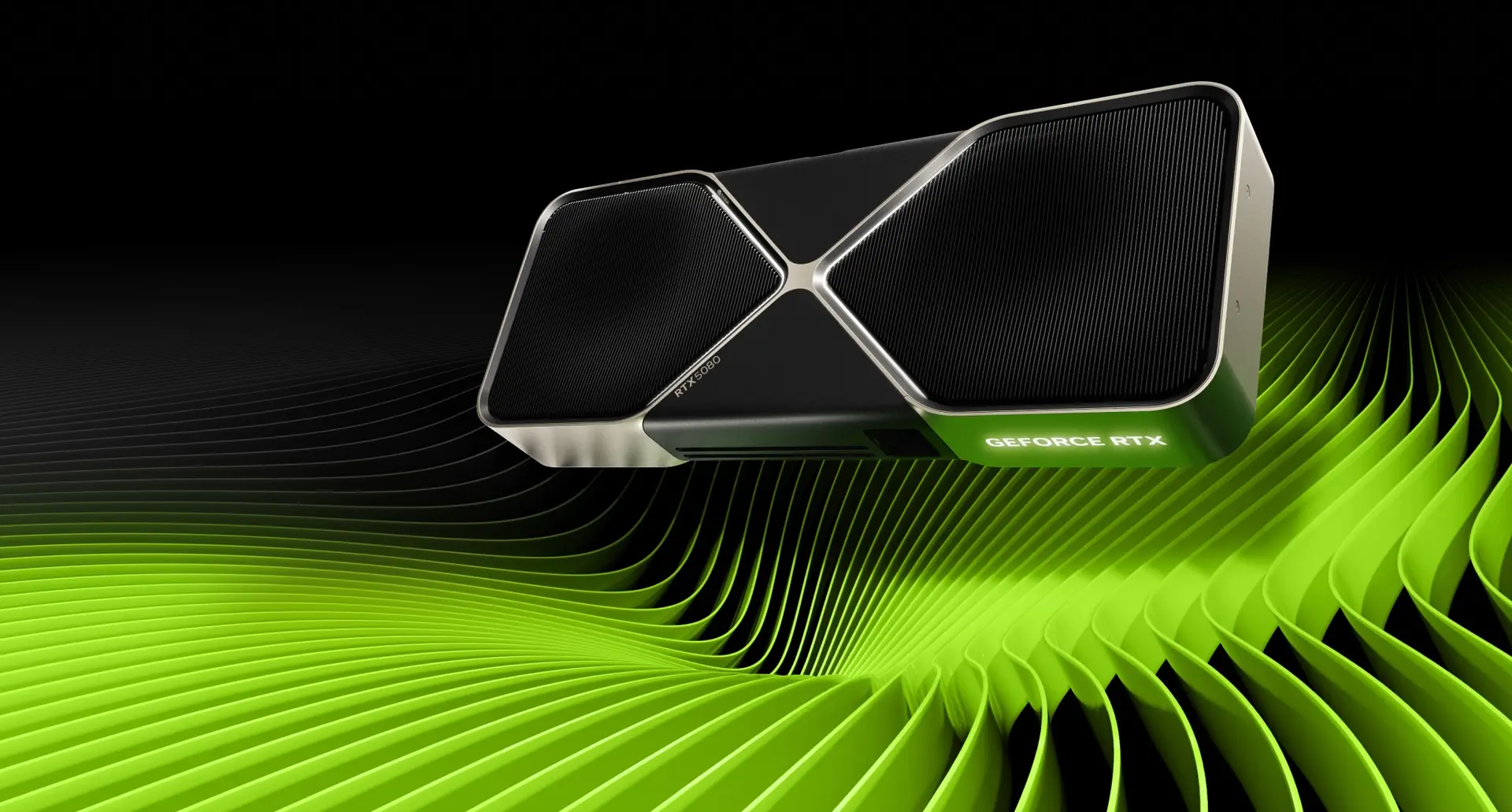

NVIDIA GeForce RTX 5080 Founders Edition16 GB GDDR7 · NVIDIA Founders Edition boardCompare the two

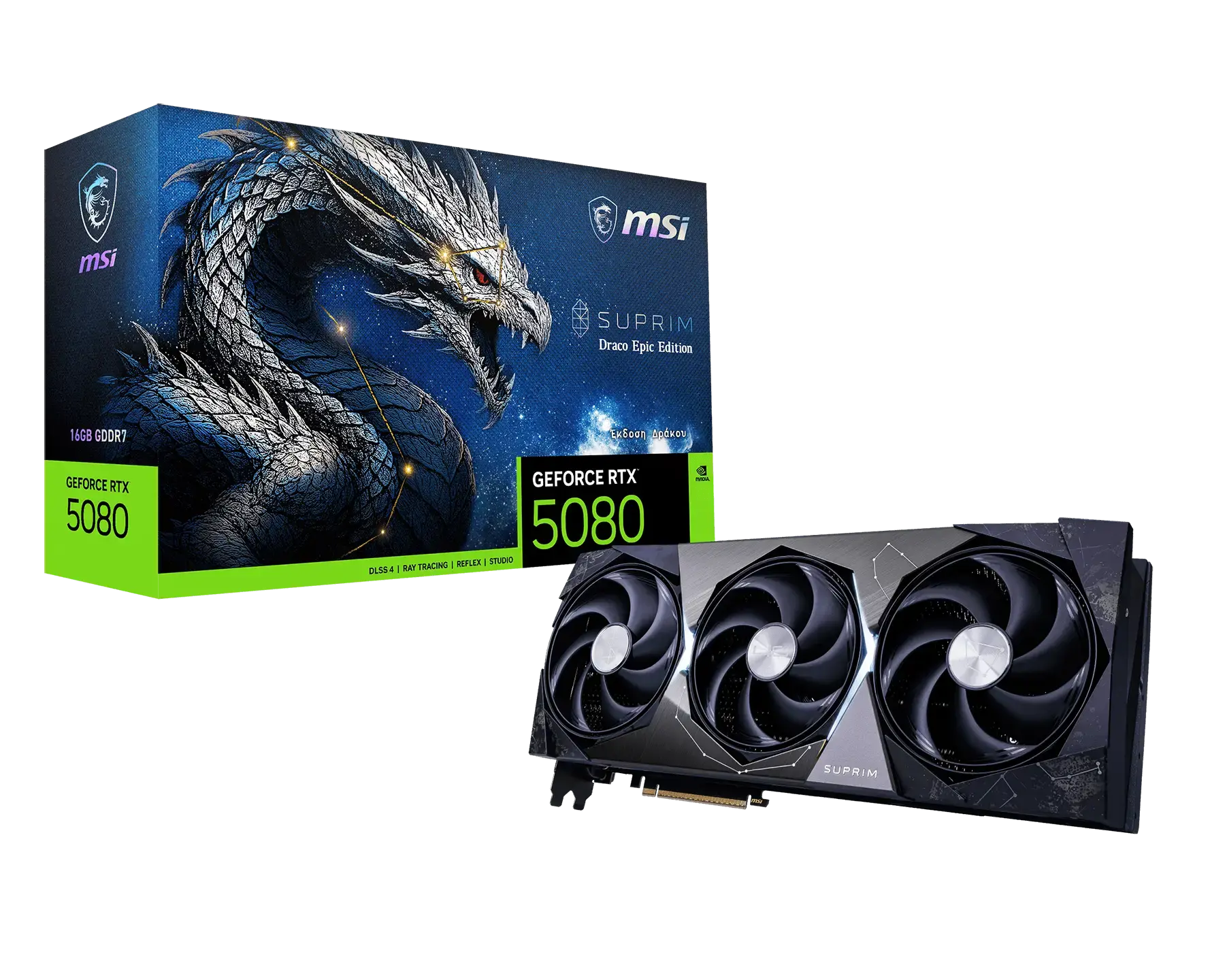

MSI GeForce RTX™ 5080 16G SUPRIM DRACO EPIC EDITIONGlobal manufacturer model · G5080-16SDEE · regional retail SKU not specifiedCompare the two
MSI GeForce RTX™ 5080 16G EXPERTGlobal manufacturer model · G5080-16E · regional retail SKU not specifiedCompare the two
MSI GeForce RTX™ 5080 16G EXPERT OCGlobal manufacturer model · G5080-16EC · regional retail SKU not specifiedCompare the two

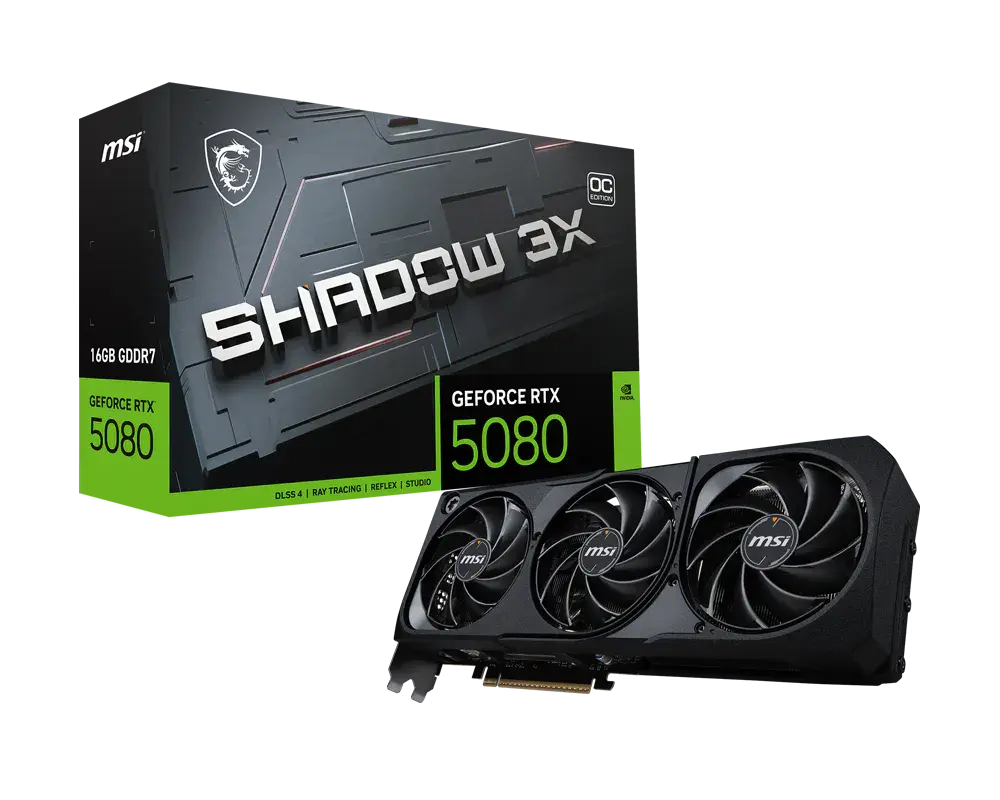

MSI GeForce RTX™ 5080 16G SHADOW 3X OCGlobal manufacturer model · G5080-16S3C · regional retail SKU not specifiedCompare the two

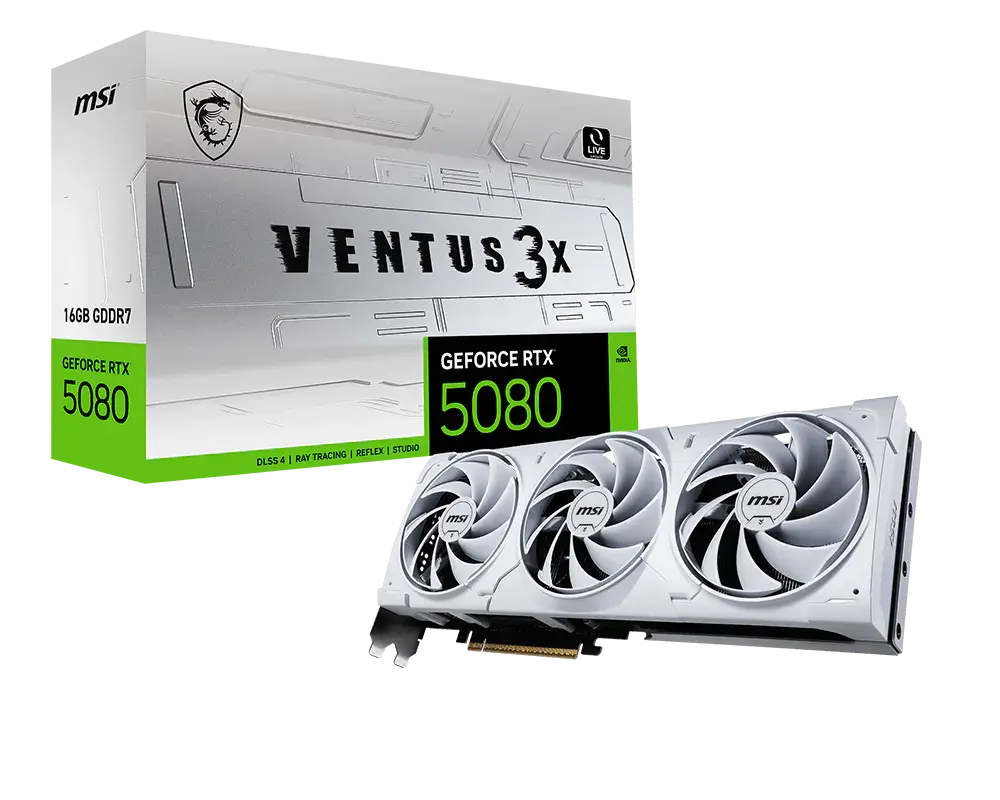

MSI GeForce RTX™ 5080 16G VENTUS 3X WHITEGlobal manufacturer model · G5080-16V3W · regional retail SKU not specifiedCompare the two
