MSI GeForce RTX 4060 VENTUS 2X BLACK 8G OC
8 GB GDDR6
- Video memory
- 8 GB
- Video memory type
- GDDR6
- CUDA cores
- 3072

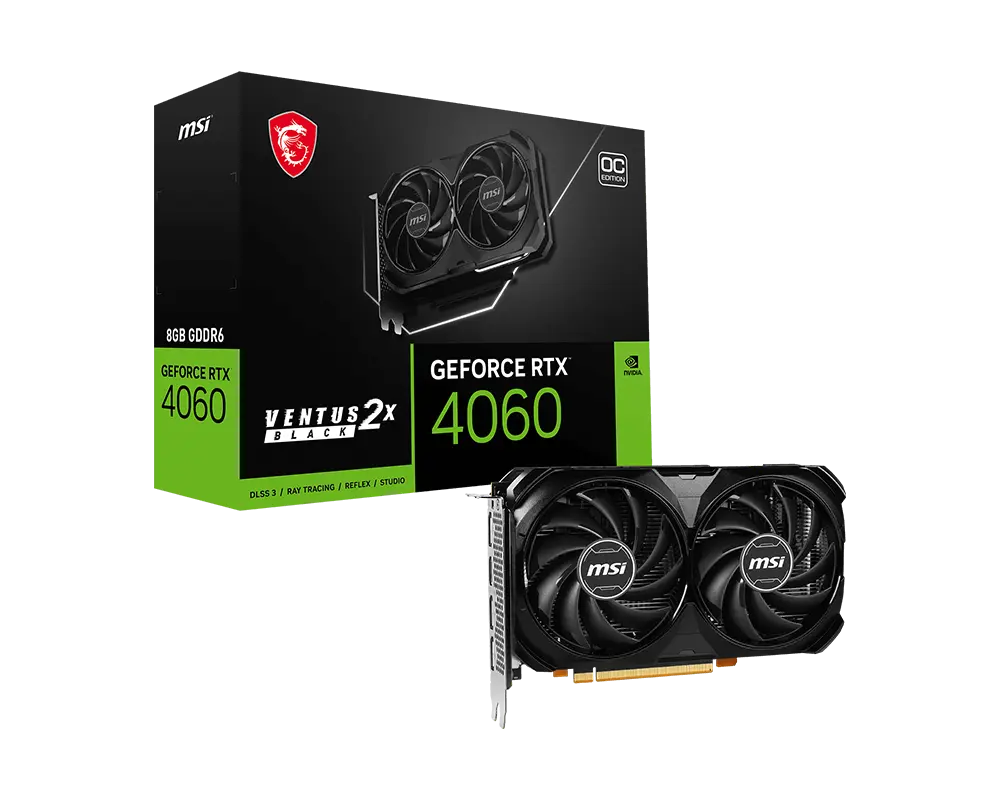

MSI’s GeForce RTX 4060 VENTUS 2X BLACK 8G OC has 3,072 CUDA cores, 8 GB of GDDR6 and a 2490 MHz boost clock in a short 199 mm two-fan body. It supports AV1 encoding and DLSS Frame Generation.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the MSI GeForce RTX 4060 VENTUS 2X BLACK 8G OC gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with MSI GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC
Specifications checked 12 Sept 2026Manufacturer specifications, not a hands-on test.
The nearest checked graphics cards by key specifications, with what differs from the MSI GeForce RTX 4060 VENTUS 2X BLACK 8G OC. The first matches the Compare button above.
MSI GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC8 GB GDDR6 · exact MSI board · global specification
MSI GeForce RTX 3050 VENTUS 2X XS 8G OC8 GB GDDR6 · Black / gray · exact board configuration · MSI global specification- CUDA cores
- 2560This one: 3072
- Standard boost clock
- 1807 MHzThis one: 2490 MHz
MSI GeForce RTX 3060 VENTUS 2X 12G12 GB GDDR6 · non-OC board · MSI global specification- Video memory
- 12 GBThis one: 8 GB
- CUDA cores
- 3584This one: 3072
Key strengths
The 199 × 120 × 41 mm card needs only one 8-pin power connector, and MSI recommends a 550 W system power supply.
Two TORX Fan 4.0 fans stop at low temperatures, and a reinforcing backplate with an airflow vent covers the board. Outputs are three DisplayPort 1.4a and one HDMI 2.1a.
Before you buy
MSI’s specifications give the card power as 115 W or 120 W without saying which applies.
Only 8 GB of VRAM on a 128-bit bus, the card uses a PCI Express 4.0 x8 interface, and Multi Frame Generation needs an RTX 50-series GPU.
Every specification. With its source.
Full specifications
Exact configuration: 8 GB GDDR6 · exact MSI board · global specification
71 specifications in 10 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 2 rows repeat listed facts in the manufacturer’s own wording, kept under “Manufacturer wording”.
GPU & clocks
5 items
- CUDA cores
- 3072
Core counts are not directly comparable across GPU generations.
- Standard boost clock
- 2490 MHz
MSI standard boost clock.
- GPU and board model
- NVIDIA GeForce RTX 4060; MSI GeForce RTX 4060 VENTUS 2X BLACK 8G OC
- MSI Center Extreme clock
- 2505 MHz
Optional MSI Center Extreme Performance setting.
- GPU architecture
- Ada LovelaceSource
Interface & board
2 items
- PCIe interface
- PCI Express 4.0 x8
The motherboard slot determines the negotiated link.
- Active PCIe lanes
- 8
Video memory
4 items
- Video memory
- 8 GB
- Video memory type
- GDDR6
- Memory interface width
- 128 bit
- Memory data rate
- 17 Gbps
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- VRAM capacity and type
- 8 GB GDDR6; 128-bit interface
Power
4 items
- Declared card power
- Not listed by the manufacturer
MSI lists the card power as 115 W or 120 W without saying which applies.
- Recommended system PSU
- 550 W
For the whole system; check the power cables the card needs.
- Manufacturer-listed card power
- Not listed by the manufacturer
115 W or 120 W MSI lists the card power as 115 W or 120 W without saying which applies. · MSI lists 115 W or 120 W without saying which applies.
- Power connectors
- 1 × 8-pin
Size & fit
7 items
- Card length
- 199 mm
Card only; allow extra room for power cables and airflow.
- Card thickness
- 41 mm
Card only; allow extra room for power cables and airflow.
- Card height
- 120 mm
Card only; allow extra room for power cables and airflow.
- Card weight
- 546 g
Card only, without packaging.
- Package weight
- 783 g
Weight including packaging; the seller’s bundle may differ.
- Bundled support stand
- Not listed by the manufacturer
MSI does not list a bundled support stand for this card.
Source - SFF-Ready Enthusiast classification
- Not listed by the manufacturer
MSI does not list this card as SFF-Ready.
Source
Manufacturer wording (1)
The same facts in the manufacturer’s combined or original wording, each with its source.
- Card length, height and thickness
- 199 × 120 × 41 mm
Card only; allow extra room for power cables and airflow.
Display outputs
4 items
- Display outputs and versions
- 3 × DisplayPort 1.4a; 1 × HDMI 2.1a
MSI lists HDMI up to 4K 120 Hz HDR and 8K 60 Hz with VRR; display and cable support apply.
- Maximum simultaneous displays
- 4
Not every display can run at the maximum resolution and refresh rate at the same time.
- Published maximum digital resolution
- 7680 × 4320
Maximum resolution per display; refresh rate depends on the connection.
- HDCP support
- Yes
Graphics features
22 items
- MSI-listed DirectX version
- 12 Ultimate
Requires compatible games, drivers and operating system.
- OpenGL version
- 4.6
- NVIDIA G-SYNC support
- Yes
Requires a G-SYNC compatible display and connection.
- Adaptive Vertical Sync
- Not listed by the manufacturer
MSI does not list Adaptive V-Sync for this card.
- DirectX 12 Ultimate support
- Yes
Requires compatible games, drivers and operating system.
Source - VR Ready
- Yes
Headset requirements vary.
Source - Ray tracing core generation
- 3Source
- Tensor core generation
- 4Source
- Hardware ray tracing
- Yes
Requires a supported game or application.
Source - DLSS Super Resolution
- Yes
Requires a supported game or application and current drivers.
- DLSS Ray Reconstruction
- Yes
Requires a supported game or application and current drivers.
- NVIDIA DLAA
- Yes
Requires a supported game or application and current drivers.
- DLSS Frame Generation
- Yes
Requires a supported game or application and current drivers.
- DLSS Multi Frame Generation
- No
Not supported on this GPU generation.
- DLSS Dynamic Multi Frame Generation
- No
Not supported on this GPU generation.
- DLSS 3D-Guided Neural Rendering
- No
Not supported on this GPU generation.
- NVIDIA Reflex
- Yes
Requires a supported game.
Source - Reflex Frame Warp availability
- Not listed by the manufacturer
NVIDIA does not list Frame Warp availability for this GPU.
Source - Resizable BAR
- Yes
Requires a compatible motherboard, CPU and firmware setting.
Source - CUDA compute capability
- 8.9Source
- GPU Vulkan support
- Vulkan RT API
NVIDIA does not give a Vulkan version number.
Source - NVLink / SLI-Ready support
- NoSource
Video encode & decode
10 items
- Video encoder engines
- 1
Codec, bit depth, driver and application support apply.
- NVENC generation
- 8
Codec, bit depth, driver and application support apply.
- Video decoder engines
- 1
Codec, bit depth, driver and application support apply.
- NVDEC generation
- 5
Codec, bit depth, driver and application support apply.
- AV1 encoding
- Yes
Codec, bit depth, driver and application support apply.
- AV1 decoding
- Yes
Codec, bit depth, driver and application support apply.
- H.264 4:2:2 encoding
- No
Codec, bit depth, driver and application support apply.
- HEVC 4:2:2 encoding
- No
Codec, bit depth, driver and application support apply.
- H.264 4:2:2 decoding
- No
Codec, bit depth, driver and application support apply.
- HEVC 4:2:2 decoding
- No
Codec, bit depth, driver and application support apply.
Cooling & build
11 items
- NVIDIA GPU temperature limit
- 90 °C
NVIDIA’s maximum GPU temperature, not a typical operating temperature.
Source - Cooling fans
- 2
- Fan design
- TORX Fan 4.0
- Fan bearing construction
- Not listed by the manufacturer
MSI does not state the fan bearing type for this card.
Source - Low-temperature fan stop
- Yes
Fans stop at low temperatures.
- Backplate design
- Reinforcing backplate with airflow vent
MSI does not state the backplate material.
- Cooling construction
- Dual-fan heatsink; thermal padding
- Dual BIOS
- Not listed by the manufacturer
MSI does not list a dual-BIOS switch for this card.
- Decorative lighting
- Not listed by the manufacturer
MSI does not list decorative lighting for this card.
- Listed board construction
- Additional fusesSource
- Board finish
- BlackSource
Software
2 items
- Listed NVIDIA software support
- Broadcast; ShadowPlay; Game Ready and Studio drivers; Omniverse
Application availability, versions and licensing vary.
Source - MSI tuning software
- MSI Center; Afterburner; OC Scanner
MSI Center’s optional Extreme setting is 2505 MHz; the standard boost is 2490 MHz.
