MSI GeForce RTX 4080 SUPER 16G VENTUS 3X OC

16 GB GDDR6X

Video memory
16 GB
Video memory type
GDDR6X
CUDA cores
10240

MSI’s GeForce RTX 4080 SUPER 16G VENTUS 3X OC has 10,240 CUDA cores, 16 GB of GDDR6X on a 256-bit bus and a 2580 MHz boost clock in a 322 mm three-fan body. It supports AV1 encoding and DLSS Frame Generation.

Prices & buying options

Search links open retailer results.

UK: no verified listing yet · checked daily

US: no verified listing yet · checked daily

As an eBay Partner, we may be compensated if you make a purchase.

Affiliate links

We may earn a commission. Search results can include other models; check the exact variant and final price with the retailer.

As an Amazon Associate I earn from qualifying purchases.

Price alert

Email me when the MSI GeForce RTX 4080 SUPER 16G VENTUS 3X OC gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.

We'll send a link to confirm first.

THE ACTUAL PRODUCT

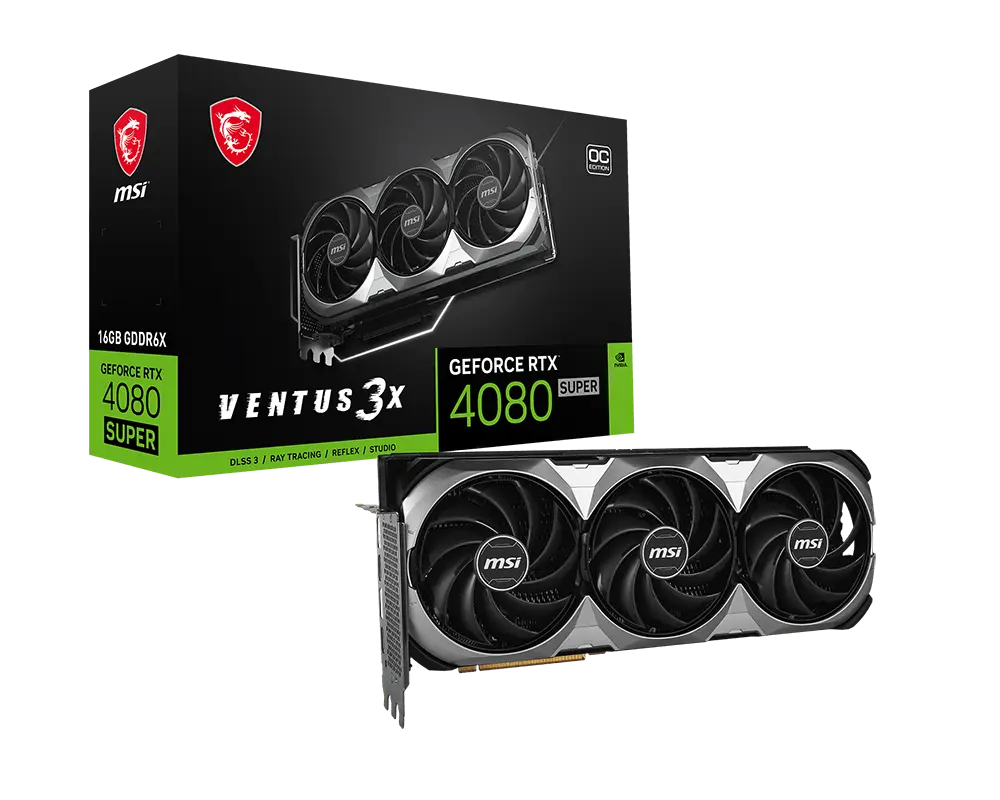

MSI GeForce RTX 4080 SUPER 16G VENTUS 3X OC graphics card with exact-model manufacturer packaging
Official product image · Image source detailsProduct imagery does not establish a retailer’s bundle or condition.
Compare with MSI GeForce RTX 4080 SUPER 16G GAMING X SLIM

Specifications checked 13 Sept 2026Manufacturer specifications, not a hands-on test.

Options worth comparing

Explore all alternatives

The nearest checked graphics cards by key specifications, with what differs from the MSI GeForce RTX 4080 SUPER 16G VENTUS 3X OC. The first matches the Compare button above.

The useful part.

Key strengths

Two NVENC video encoders with AV1 support, and two HDMI 2.1a outputs alongside two DisplayPort 1.4a.

Three TORX Fan 4.0 fans on double ball bearings stop at low temperatures, over a nickel-plated copper baseplate and Core Pipes. A brushed aluminium backplate and a case support bracket are included.

The checks that matter.

Before you buy

Check case clearance for the 322 × 136 × 62 mm body. The 320 W card uses one 16-pin connector, and MSI recommends a 750 W system power supply.

Only two DisplayPort outputs, and it supports DLSS Frame Generation but not Multi Frame Generation, which needs an RTX 50-series GPU.

Every specification. With its source.

Full specifications

Exact configuration: 16 GB GDDR6X · exact MSI board · global specification

73 specifications in 10 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 3 rows repeat listed facts in the manufacturer’s own wording, kept under “Manufacturer wording”.

GPU & clocks

5 items
CUDA cores
10240

Core counts are not directly comparable across GPU generations.

2 sources
Standard boost clock
2580 MHz

MSI standard boost clock.

2 sources
GPU and board model
NVIDIA GeForce RTX 4080 SUPER; MSI GeForce RTX 4080 SUPER 16G VENTUS 3X OC
2 sources
MSI Center Extreme clock
2595 MHz

Optional MSI Center Extreme Performance setting.

2 sources
GPU architecture
Ada LovelaceSource

Interface & board

2 items
PCIe interface
PCI Express 4.0

MSI states PCI Express 4.0 without an electrical lane count. · The motherboard slot determines the negotiated link.

2 sources
Active PCIe lanes
Not listed by the manufacturer

MSI does not state the electrical lane count for this card.

2 sources

Video memory

4 items
Manufacturer wording (1)

The same facts in the manufacturer’s combined or original wording, each with its source.

VRAM capacity and type
16 GB GDDR6X; 256-bit interface
2 sources

Power

3 items
Declared card power
320 W

MSI-declared card power; the system power-supply recommendation is listed separately.

2 sources
Recommended system PSU
750 W

For the whole system; check the power cables the card needs.

2 sources
Manufacturer wording (1)

The same facts in the manufacturer’s combined or original wording, each with its source.

Manufacturer-listed card power
320 W

MSI-declared card power; the system power-supply recommendation is listed separately.

2 sources

Size & fit

8 items
Card length
322 mm

Card only; allow extra room for power cables and airflow.

2 sources
Card thickness
62 mm

Card only; allow extra room for power cables and airflow.

2 sources
Card height
136 mm

Card only; allow extra room for power cables and airflow.

2 sources
Card weight
1543 g

Card only, without packaging.

2 sources
Package weight
2147 g

Weight including packaging; the seller’s bundle may differ.

2 sources
Bundled support stand
Not listed by the manufacturer

MSI lists a case-mounted support bracket rather than a free-standing stand.

Source
Bundled support bracket
Yes

Bundled bracket that attaches to the case; check the seller’s bundle.

Source
SFF-Ready Enthusiast classification
Not listed by the manufacturer

MSI does not list this card as SFF-Ready.

Source
Manufacturer wording (1)

The same facts in the manufacturer’s combined or original wording, each with its source.

Card length, height and thickness
322 × 136 × 62 mm

Card only; allow extra room for power cables and airflow.

2 sources

Display outputs

6 items
Display outputs and versions
2 × DisplayPort 1.4a; 2 × HDMI 2.1a

MSI lists HDMI up to 4K 120 Hz HDR and 8K 60 Hz with VRR; display and cable support apply.

2 sources
Maximum simultaneous displays
4

Not every display can run at the maximum resolution and refresh rate at the same time.

2 sources
Published maximum digital resolution
7680 × 4320

Maximum resolution per display; refresh rate depends on the connection.

2 sources

Graphics features

22 items
MSI-listed DirectX version
12 Ultimate

Requires compatible games, drivers and operating system.

2 sources
NVIDIA G-SYNC support
Yes

Requires a G-SYNC compatible display and connection.

2 sources
Adaptive Vertical Sync
Not listed by the manufacturer

MSI does not list Adaptive V-Sync for this card.

2 sources
DirectX 12 Ultimate support
Yes

Requires compatible games, drivers and operating system.

Source
VR Ready
Yes

Headset requirements vary.

Source
Ray tracing core generation
3Source
Tensor core generation
4Source
Hardware ray tracing
Yes

Requires a supported game or application.

Source
DLSS Super Resolution
Yes

Requires a supported game or application and current drivers.

2 sources
DLSS Ray Reconstruction
Yes

Requires a supported game or application and current drivers.

2 sources
NVIDIA DLAA
Yes

Requires a supported game or application and current drivers.

2 sources
DLSS Frame Generation
Yes

Requires a supported game or application and current drivers.

2 sources
DLSS Multi Frame Generation
No

Not supported on this GPU generation.

2 sources
DLSS Dynamic Multi Frame Generation
No

Not supported on this GPU generation.

2 sources
DLSS 3D-Guided Neural Rendering
No

Not supported on this GPU generation.

2 sources
NVIDIA Reflex
Yes

Requires a supported game.

Source
Reflex Frame Warp availability
Not listed by the manufacturer

NVIDIA does not list Frame Warp availability for this GPU.

Source
Resizable BAR
Yes

Requires a compatible motherboard, CPU and firmware setting.

Source
CUDA compute capability
8.9Source
GPU Vulkan support
Vulkan RT API

NVIDIA does not give a Vulkan version number.

Source
NVLink / SLI-Ready support
NoSource

Video encode & decode

10 items
Video encoder engines
2

Codec, bit depth, driver and application support apply.

2 sources
NVENC generation
8

Codec, bit depth, driver and application support apply.

2 sources
Video decoder engines
1

Codec, bit depth, driver and application support apply.

2 sources
NVDEC generation
5

Codec, bit depth, driver and application support apply.

2 sources
AV1 encoding
Yes

Codec, bit depth, driver and application support apply.

2 sources
AV1 decoding
Yes

Codec, bit depth, driver and application support apply.

2 sources
H.264 4:2:2 encoding
No

Codec, bit depth, driver and application support apply.

2 sources
HEVC 4:2:2 encoding
No

Codec, bit depth, driver and application support apply.

2 sources
H.264 4:2:2 decoding
No

Codec, bit depth, driver and application support apply.

2 sources
HEVC 4:2:2 decoding
No

Codec, bit depth, driver and application support apply.

2 sources

Cooling & build

11 items
NVIDIA GPU temperature limit
90 °C

NVIDIA’s maximum GPU temperature, not a typical operating temperature.

Source
Cooling fans
3Source
Fan bearing construction
Double ball bearingsSource
Low-temperature fan stop
Yes

Fans stop at low temperatures.

Source
Backplate design
Brushed aluminium backplate with airflow vent
2 sources
Cooling construction
Nickel-plated copper baseplate; Core Pipes; clay-based thermal pads; airflow deflectors
2 sources
Dual BIOS
Not listed by the manufacturer

MSI does not list a dual-BIOS switch for this card.

2 sources
Decorative lighting
Not listed by the manufacturer

MSI does not list decorative lighting for this card.

2 sources
Listed board construction
DrMOS power stages; additional fuses; 2 Oz copper PCB layer; sheet-metal anti-bending plate with thermal padsSource
Board finish
Black / silverSource

Software

2 items
Listed NVIDIA software support
Broadcast; ShadowPlay; Game Ready and Studio drivers; Omniverse

Application availability, versions and licensing vary.

Source
MSI tuning software
MSI Center; Afterburner; OC Scanner

MSI Center’s optional Extreme setting is 2595 MHz; the standard boost is 2580 MHz.

2 sources
