BUSINESS & SPECIALIST DISPLAYS

LG LSCC012-GZ

UK configuration

Manufacturer display purpose: LED Signage
Manufacturer LED resolution by physical component: 240x135 (Module Resolution (WxH)); 480x270 (Cabinet Resolution (WxH))
Manufacturer LED pixel configuration: Single SMD

LG LSCC012-GZ in the exact manufacturer-listed UK configuration.

Prices & buying options

Search links open retailer results.

UK: no verified listing yet · checked daily

US: no verified listing yet · checked daily

As an eBay Partner, we may be compensated if you make a purchase.

Affiliate links

We may earn a commission. Search results can include other models; check the exact variant and final price with the retailer.

As an Amazon Associate I earn from qualifying purchases.

Price alert

Email me when the LG LSCC012-GZ gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.

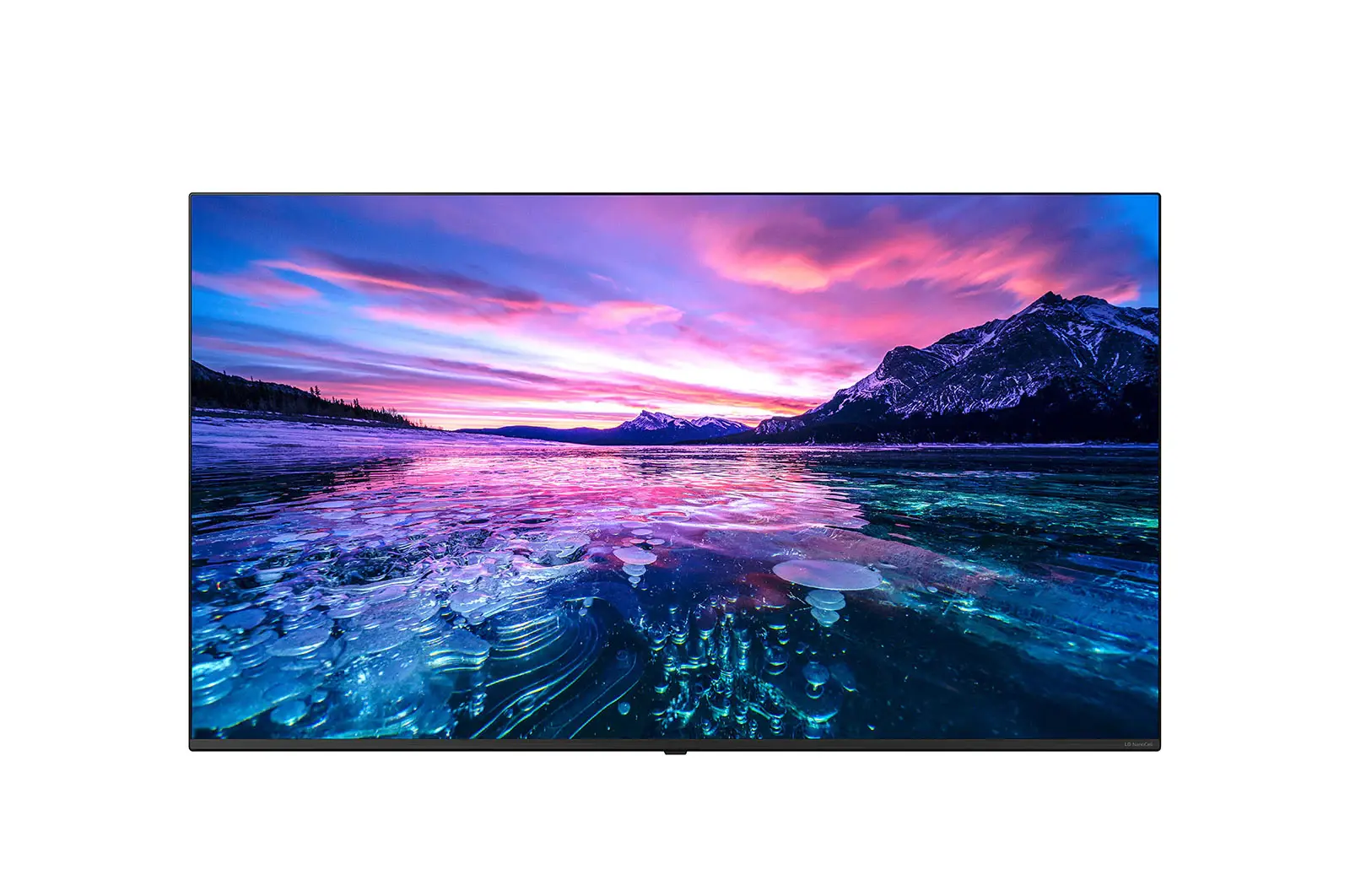

Front view of P1.25 inch Indoor LED Signage - LSCC012-GZ — Official product image · Image source detailsProduct imagery does not establish a retailer’s bundle or condition.

Compare with LG LSCB012-CK

Explore alternatives Upgrade from this product

Specifications checked 20 Oct 2026Manufacturer specifications, not a hands-on test.

Options worth comparing

Explore all alternatives

The nearest checked business & specialist displays by key specifications, with what differs from the LG LSCC012-GZ. The first matches the Compare button above.

Front view of Ultra Slim Series - LSCB012-CK LSCB012-CK

LG LSCB012-CKUK manufacturer configuration · LSCB012-CK

Manufacturer LED resolution by physical component: 240x135 (Module Resolution (WxH)); 240x270 (Cabinet Resolution (WxH))This one: 240x135 (Module Resolution (WxH)); 480x270 (Cabinet Resolution (WxH))
Manufacturer dimensions and configuration basis: 300x168.75 (Module Dimensions(WxH,mm)); 300x337.5x34 (Cabinet Dimensions (W x H x D, mm))This one: 300x168.75 (Module Dimensions(WxH,mm)); 600x337.5x33.6 (Cabinet Dimensions (W x H x D, mm))

Compare the two

Front view of Ultra Slim Series LSCB015-RK

LG LSCB015-RKUK manufacturer configuration · LSCB015-RK

Manufacturer LED resolution by physical component: 192x108 (Module Resolution (WxH)); 384x216 (Cabinet Resolution (WxH))This one: 240x135 (Module Resolution (WxH)); 480x270 (Cabinet Resolution (WxH))
Manufacturer dimensions and configuration basis: 300x168.75 (Module Dimensions(WxH,mm)); 600x337.5x34 (Cabinet Dimensions (W x H x D, mm))This one: 300x168.75 (Module Dimensions(WxH,mm)); 600x337.5x33.6 (Cabinet Dimensions (W x H x D, mm))

Compare the two

Front view of Ultra Slim Series LSCB018-RK

LG LSCB018-RKUK manufacturer configuration · LSCB018-RK

Manufacturer LED resolution by physical component: 160x90 (Module Resolution (WxH)); 320x180 (Cabinet Resolution (WxH))This one: 240x135 (Module Resolution (WxH)); 480x270 (Cabinet Resolution (WxH))
Manufacturer dimensions and configuration basis: 300x168.75 (Module Dimensions(WxH,mm)); 600x337.5x34 (Cabinet Dimensions (W x H x D, mm))This one: 300x168.75 (Module Dimensions(WxH,mm)); 600x337.5x33.6 (Cabinet Dimensions (W x H x D, mm))

Compare the two

The useful part.

Key strengths

The official LG UK page identifies manufacturer model LSCC012-GZ.

Manufacturer source

The checks that matter.

Before you buy

Manufacturer claims do not establish independently measured performance, current retailer stock or price. Unlisted specifications remain explicitly unknown.

Manufacturer source

Every specification. With its source.

Full specifications

Suggest a correction Our publishing standard

Exact configuration: UK manufacturer configuration · LSCC012-GZ

46 specifications in 6 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”. 6 rows repeat listed facts in the manufacturer’s own wording, kept under “Manufacturer wording”.

Purpose, identity & operating conditions

8 items

Manufacturer display purpose: LED Signage
Official current UK business catalogue classification. Exact manufacturer heading: P1.25" Indoor LED Signage. This identifies purpose, not a consumer-use or medical-performance recommendation.
Source
Manufacturer operating-hours declaration: Not listed by the manufacturer
The captured manufacturer specification table does not list an unambiguous manufacturer operating-hours declaration. No value is inferred.
Source
OPTICAL SPECIFICATIONS — Color Temperature (K): 3500-9000K(default:6500K)Source
OPERATION SPECIFICATIONS — Operating Temperature(℃): -10℃ to +45℃Source
OPERATION SPECIFICATIONS — Operating Humidity: 0-80%RHSource
OPERATION SPECIFICATIONS — IP rating Front: IP30Source
STANDARD — Certification: CE, FCC, ETL, EMC Class-ASource
ENVIRONMENT — Environment: RoHS, REACHSource

Manufacturer wording (1)

The same facts in the manufacturer’s combined or original wording, each with its source.

OPERATION SPECIFICATIONS — IP rating Rear: IP30Source

Panel, picture & gaming modes

15 items

Manufacturer screen diagonal: Not listed by the manufacturer
The captured manufacturer specification table does not list an unambiguous manufacturer screen diagonal. No value is inferred.
Source
Manufacturer LED pixel configuration: Single SMD
Exact LED-signage pixel-configuration declaration. The source separately retains pixel pitch, module geometry and cabinet geometry. Manufacturer section: PHYSICAL PARAMETERS. Source field: Pixel Configuration.
Source
Manufacturer native image refresh rate: Not listed by the manufacturer
The manufacturer separately declares electrical LED Refresh Rate and Frame Rate, without establishing a single equivalent native image-refresh scalar. Each original rate and its exact label is retained separately below. · The manufacturer separately declares electrical LED Refresh Rate and Frame Rate, without establishing a single equivalent native image-refresh scalar. Each original rate and its exact label is retained separately below.
Source
Manufacturer electrical LED refresh declaration: 3,840
Literal electrical-specification LED refresh declaration in Hz. This retains its manufacturer measurement context; the separately stated Frame Rate remains a distinct field. Manufacturer section: ELECTRICAL SPECIFICATIONS. Source field: Refresh Rate (Hz).
Source
PHYSICAL PARAMETERS — Pixel Configuration: Single SMDSource
PHYSICAL PARAMETERS — Pixel Pitch (mm): 1.25Source
PHYSICAL PARAMETERS — Module Resolution (WxH): 240x135Source
PHYSICAL PARAMETERS — Cabinet Resolution (WxH): 480x270Source
PHYSICAL PARAMETERS — Physical Pixel Density (pixels/㎡): 640,000Source
OPTICAL SPECIFICATIONS — Max Brightness (After Calibration, nit): Max. 800Source
OPTICAL SPECIFICATIONS — Visual Viewing Angle (Horizontal): 160Source
OPTICAL SPECIFICATIONS — Brightness Uniformity(%): 97%Source
OPTICAL SPECIFICATIONS — Color Uniformity: ±0.003CxCySource
OPTICAL SPECIFICATIONS — Contrast Ratio: 5,000:1Source
OPERATION SPECIFICATIONS — LED Lifetime (Half brightness): 100,000Source

Manufacturer wording (3)

The same facts in the manufacturer’s combined or original wording, each with its source.

Manufacturer LED resolution by physical component: 240x135 (Module Resolution (WxH)); 480x270 (Cabinet Resolution (WxH))
Screen, cabinet and module resolutions retain their exact manufacturer component labels. The configured overall screen size is not inferred from a cabinet or module. Manufacturer section: PHYSICAL PARAMETERS. Source field: Module Resolution (WxH). Manufacturer section: PHYSICAL PARAMETERS. Source field: Cabinet Resolution (WxH).
Source
OPTICAL SPECIFICATIONS — Visual Viewing Angle (Vertical): 160Source
ELECTRICAL SPECIFICATIONS — Refresh Rate (Hz): 3,840Source

Connections & accepted signals

2 items

Manufacturer inputs and connections: Not listed by the manufacturer
Literal manufacturer declarations; Yes, No, counts, versions and component/operating qualifiers are preserved. A missing row establishes no capability or absence. · Literal manufacturer declarations; Yes, No, counts, versions and component/operating qualifiers are preserved. A missing row establishes no capability or absence.
Source
Manufacturer electrical frame-rate declaration: 50 / 60
Literal electrical-specification Frame Rate declaration in Hz; multiple stated rates remain together and no input mode is inferred. Manufacturer section: ELECTRICAL SPECIFICATIONS. Source field: Frame Rate (Hz).
Source

Manufacturer wording (1)

The same facts in the manufacturer’s combined or original wording, each with its source.

ELECTRICAL SPECIFICATIONS — Frame Rate (Hz): 50 / 60Source

Dimensions, mounting & orientation

12 items

PHYSICAL PARAMETERS — Module Dimensions(WxH,mm): 300x168.75Source
PHYSICAL PARAMETERS — Weight per Module (kg): 0.31Source
PHYSICAL PARAMETERS — No. of Modules per Cabinet (WxH): 2x2Source
PHYSICAL PARAMETERS — Cabinet Dimensions (W x H x D, mm): 600x337.5x33.6Source
PHYSICAL PARAMETERS — Cabinet Surface Area (㎡): 0.2Source
PHYSICAL PARAMETERS — Weight per Cabinet (kg/unit): 5.0Source
PHYSICAL PARAMETERS — Weight per Square Meter (kg/㎡): 24.69Source
PHYSICAL PARAMETERS — Flatness of Cabinet (mm): ±0.1Source
PHYSICAL PARAMETERS — Cabinet material: Die-casting AluminumSource
PHYSICAL PARAMETERS — Service access: FrontSource
OPTICAL SPECIFICATIONS — Processing Depth (bit): 14 (HDR10, HDR10 Pro)Source
90 DEGREE CORNER CUT — 90 degree corner cut: OSource

Manufacturer wording (1)

The same facts in the manufacturer’s combined or original wording, each with its source.

Manufacturer dimensions and configuration basis: 300x168.75 (Module Dimensions(WxH,mm)); 600x337.5x33.6 (Cabinet Dimensions (W x H x D, mm))
Original units, axes and stand/component/handle basis retained. No packaging dimension or unstated unit is substituted. Manufacturer section: PHYSICAL PARAMETERS. Source field: Module Dimensions(WxH,mm). Manufacturer section: PHYSICAL PARAMETERS. Source field: Cabinet Dimensions (W x H x D, mm).
Source

Power & consumption

8 items

Manufacturer electrical power by screen, cabinet and area: 112 (Power Consumption (W/Cabinet, Max.)); 37 (Power Consumption (W/Cabinet, Avg.)); 553 (Power Consumption (W/㎡, Max.)); 100 to 240 (Power Supply (V))
Exact supply-voltage and consumption declarations retain their original W/Screen, W/Cabinet or W/m² basis and Max./Avg. labels. No area, cabinet or screen total is calculated. Manufacturer section: ELECTRICAL SPECIFICATIONS. Source field: Power Consumption (W/Cabinet, Max.). Manufacturer section: ELECTRICAL SPECIFICATIONS. Source field: Power Consumption (W/Cabinet, Avg.). Manufacturer section: ELECTRICAL SPECIFICATIONS. Source field: Power Consumption (W/㎡, Max.). Manufacturer section: ELECTRICAL SPECIFICATIONS. Source field: Power Supply (V).
Source
ELECTRICAL SPECIFICATIONS — Power Consumption (W/Cabinet, Max.): 112Source
ELECTRICAL SPECIFICATIONS — Power Consumption (W/Cabinet, Avg.): 37Source
ELECTRICAL SPECIFICATIONS — Power Consumption (W/㎡, Max.): 553Source
ELECTRICAL SPECIFICATIONS — Heat Dissipation (BTU/h/Cabinet, Max.): 382Source
ELECTRICAL SPECIFICATIONS — Heat Dissipation (BTU/h/Cabinet, Avg.): 127Source
ELECTRICAL SPECIFICATIONS — Heat Dissipation (BTU/h/㎡, Max.): 1,887Source
ELECTRICAL SPECIFICATIONS — Power Supply (V): 100 to 240Source

Software, controls & supplied items

1 item

CONTROLLER — Controller: CVCASource

Compare with another business & specialist displays product

More of the nearest checked business & specialist displays by key specifications, for a side-by-side comparison.

Front view of Ultra Slim Series LSCB025-RK

LG LSCB025-RKUK manufacturer configuration · LSCB025-RKCompare the two

Front view of P1.56 inch Indoor Signage - LSCC015-GZ

LG LSCC015-GZUK manufacturer configuration · LSCC015-GZCompare the two

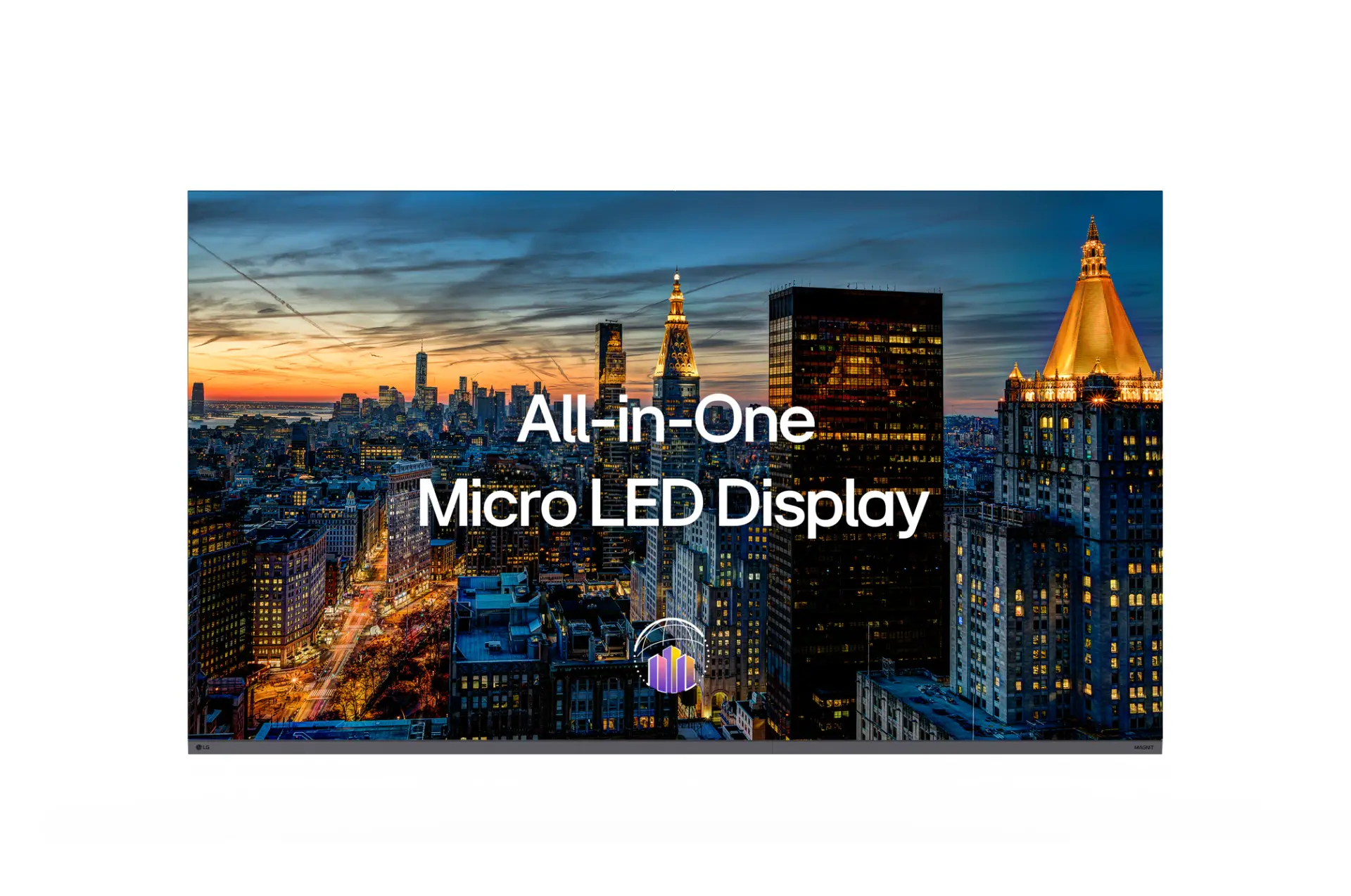

Front view of LG LED All-in-One - LAAA007-G2 LAAA007-G2

LG LAAA007-G2UK manufacturer configuration · LAAA007-G2Compare the two

LG LAAA015-G3UK manufacturer configuration · LAAA015-G3Compare the two

LG 27LN661H0LAUK manufacturer configuration · 27LN661H0LACompare the two

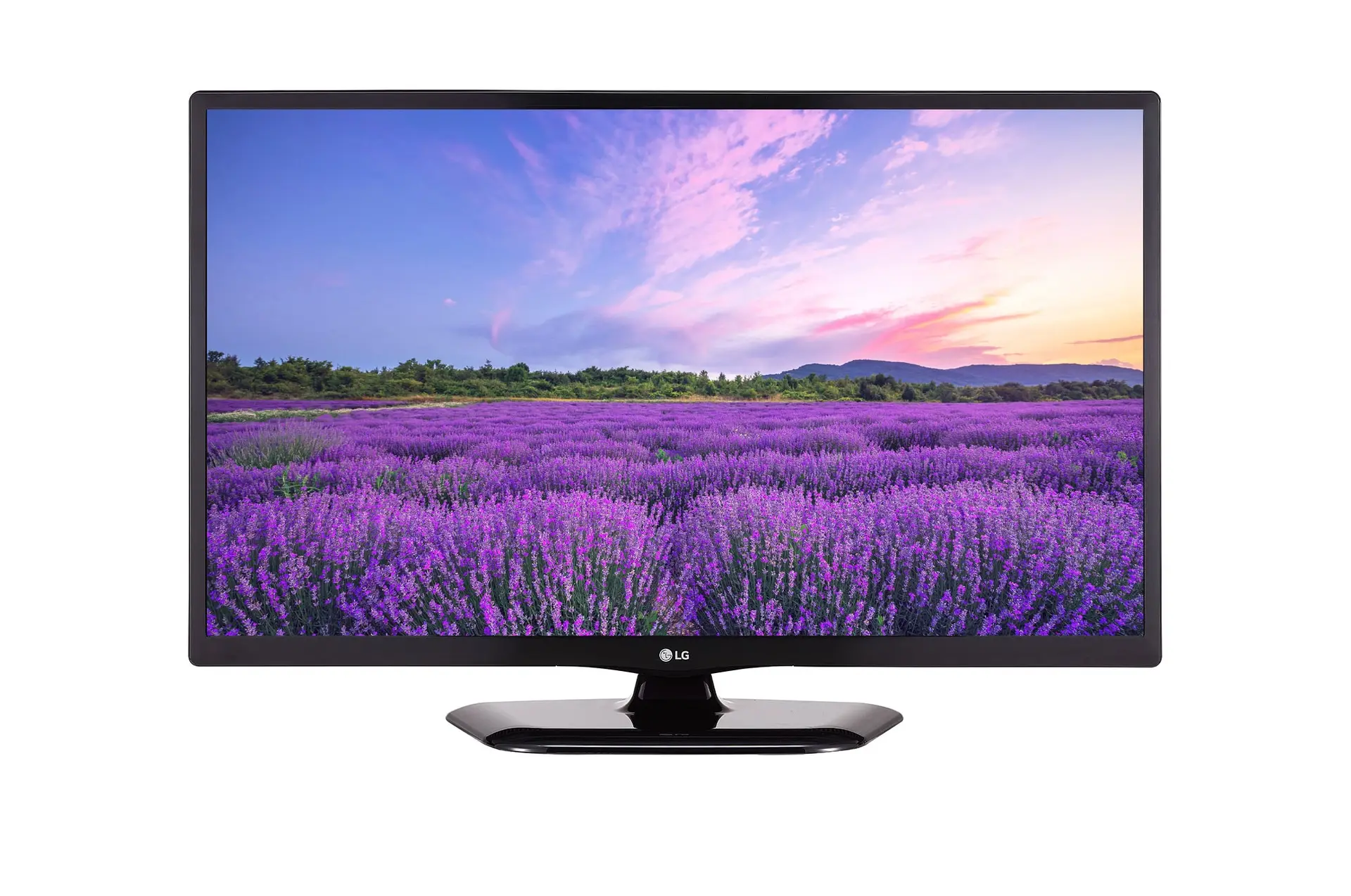

Front view of 32" A Standard Smart Hotel TV | 32LN661HBLA 32LN661HBLA
