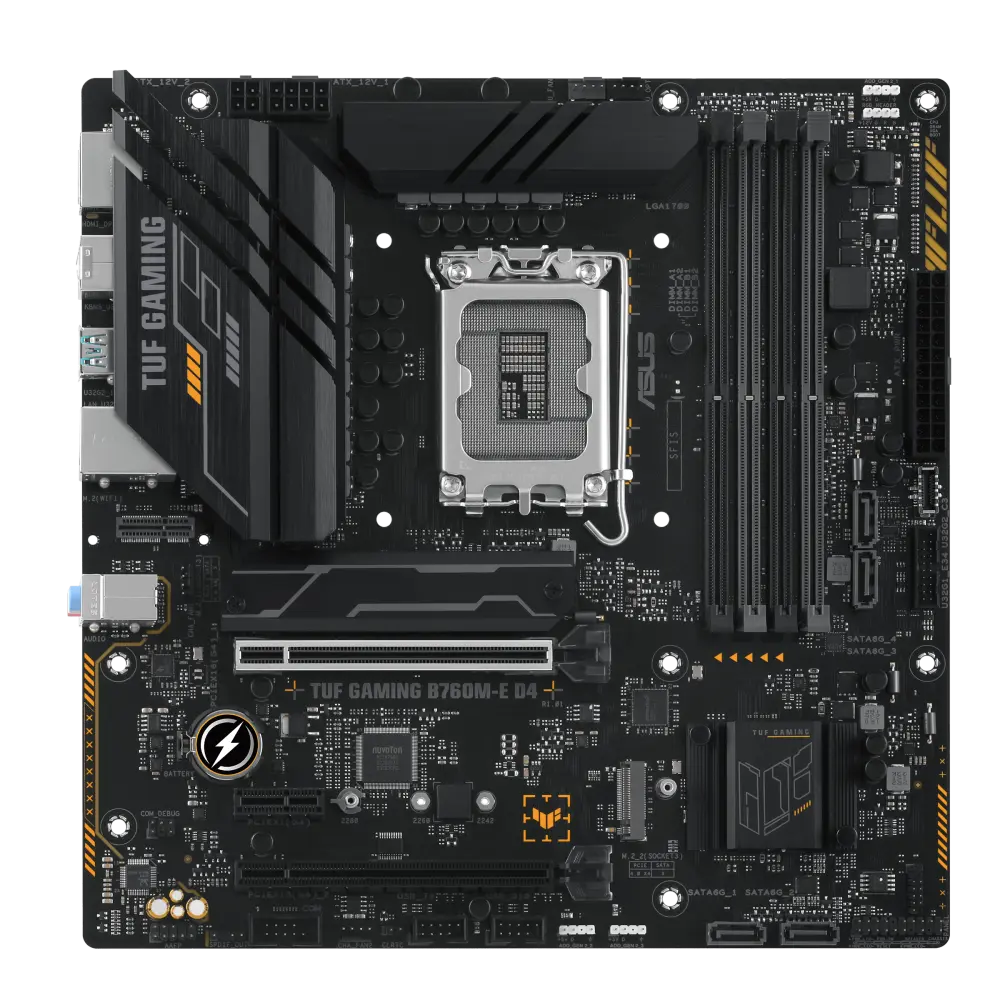

ASUS TUF GAMING B760M-E D4
UK manufacturer specification
- CPU socket
- LGA1700
- Chipset
- Intel® B760 Chipset Intel® B760 Chipset
- Form factor and dimensions
- mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
TUF GAMING B760M-E D4 motherboard, identified in the ASUS UK catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the ASUS TUF GAMING B760M-E D4 gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with ASUS B760M MAX GAMING WIFI
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the ASUS TUF GAMING B760M-E D4. The first matches the Compare button above.
ASUS B760M MAX GAMING WIFIUK manufacturer specification · B760M MAX GAMING WIFI
ASUS PRIME B660M-A D4UK manufacturer specification · PRIME B660M-A D4- Chipset
- Intel® B660 ChipsetThis one: Intel® B760 Chipset Intel® B760 Chipset

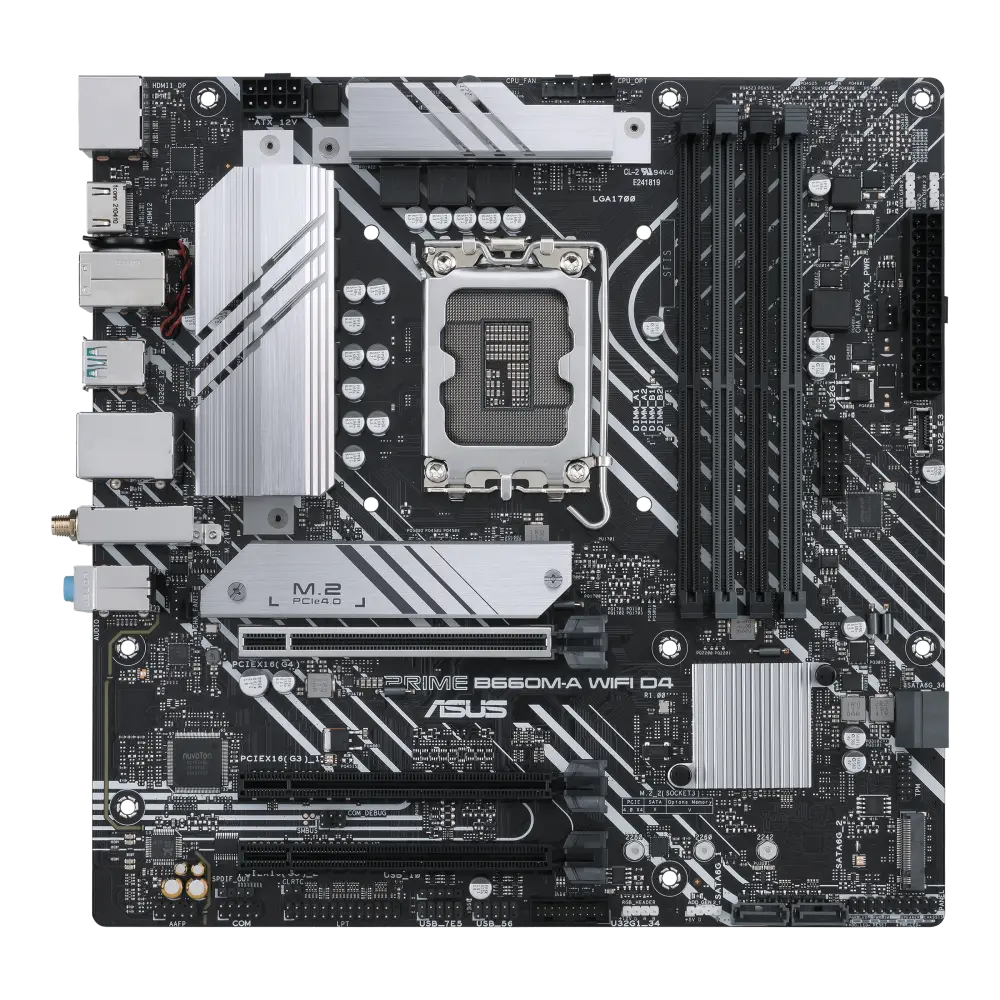

ASUS PRIME B660M-A WIFI D4UK manufacturer specification · PRIME B660M-A WIFI D4- Chipset
- Intel® B660 ChipsetThis one: Intel® B760 Chipset Intel® B760 Chipset
Key strengths
Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.
Before you buy
Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.
Works with
Products in this catalogue that list the same socket or memory type as the ASUS TUF GAMING B760M-E D4. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
- 2 LGA1700 processorsSocket LGA1700 on both, from cited specifications
- 8 DDR4 memory kitsMemory type DDR4 on both, from cited specifications
Every specification. With its source.
Full specifications
Exact configuration: UK manufacturer specification · TUF GAMING B760M-E D4
13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Platform & board
3 items
Memory
1 item
- Memory type, slots and limit
- 4 x DIMM slots, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Source
Expansion slots
1 item
- Expansion slots and restrictions
- Intel® Core™ Processors (14th &13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.Source
Storage
1 item
- Storage interfaces and restrictions
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th &13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.Source
USB & rear connections
2 items
- USB ports and headers
- Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports(2 x Type-A) 2 x USB 3.2 Gen1 (5G) ports(2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 2 x USB 2.0 headers support 4 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.Source
- Rear-panel ports
- 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek2.5Gb Ethernet port 3 x Audio jacks 1 x Vertical M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo portSource
Networking
1 item
- Network interfaces and requirements
- 1 x Realtek 2.5Gb Ethernet TUF LANGuard; Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.Source
Audio
1 item
- Audio interfaces
- Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Source
Power, cooling & lighting
1 item
- Internal headers and connectors
- Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x S/PDIF Out headerSource
BIOS, software & diagnostics
2 items
- CPU support and BIOS requirements
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.
Source - Listed operating systems
- Windows® 11, Windows® 10 64-bitSource
Compare with another motherboard
More of the nearest checked motherboards by key specifications, for a side-by-side comparison.
ASUS PRIME B760M-A AXUS manufacturer specification · PRIME B760M-A AXCompare the two

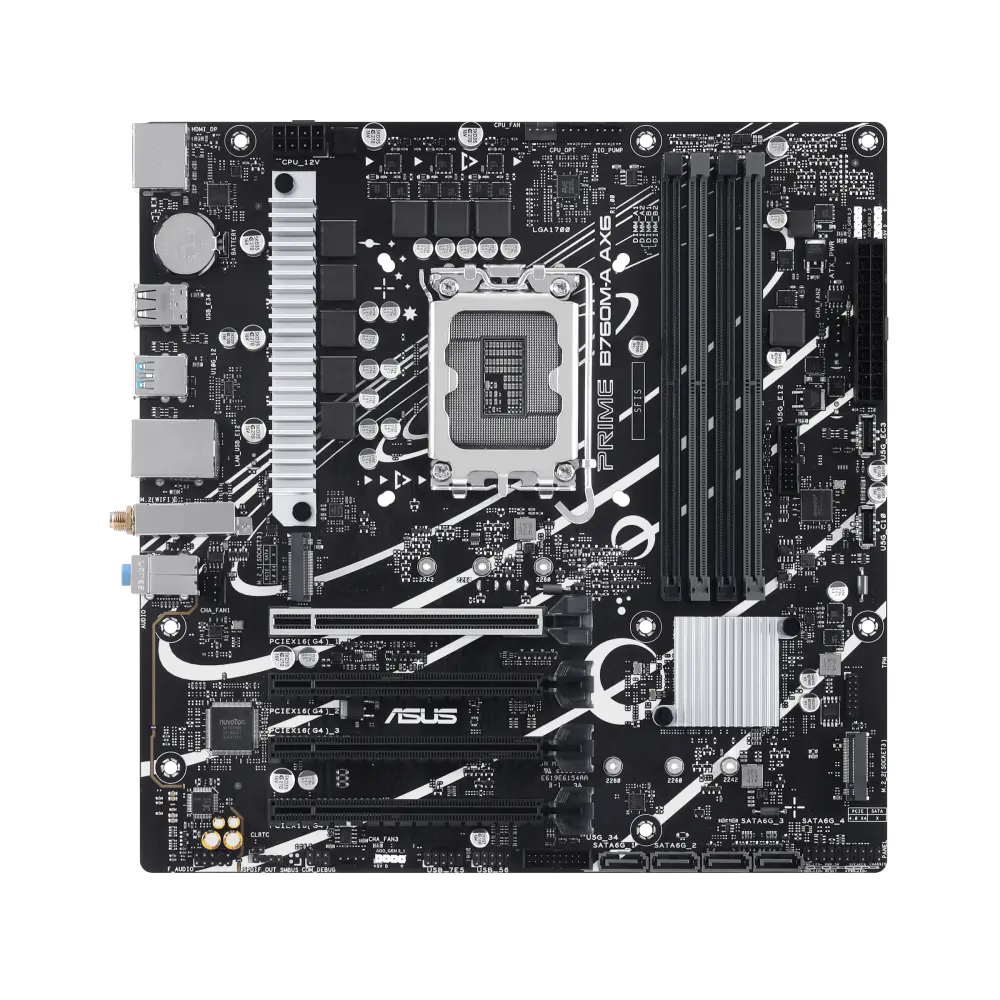

ASUS PRIME B760M-A AX6UK manufacturer specification · PRIME B760M-A AX6Compare the two

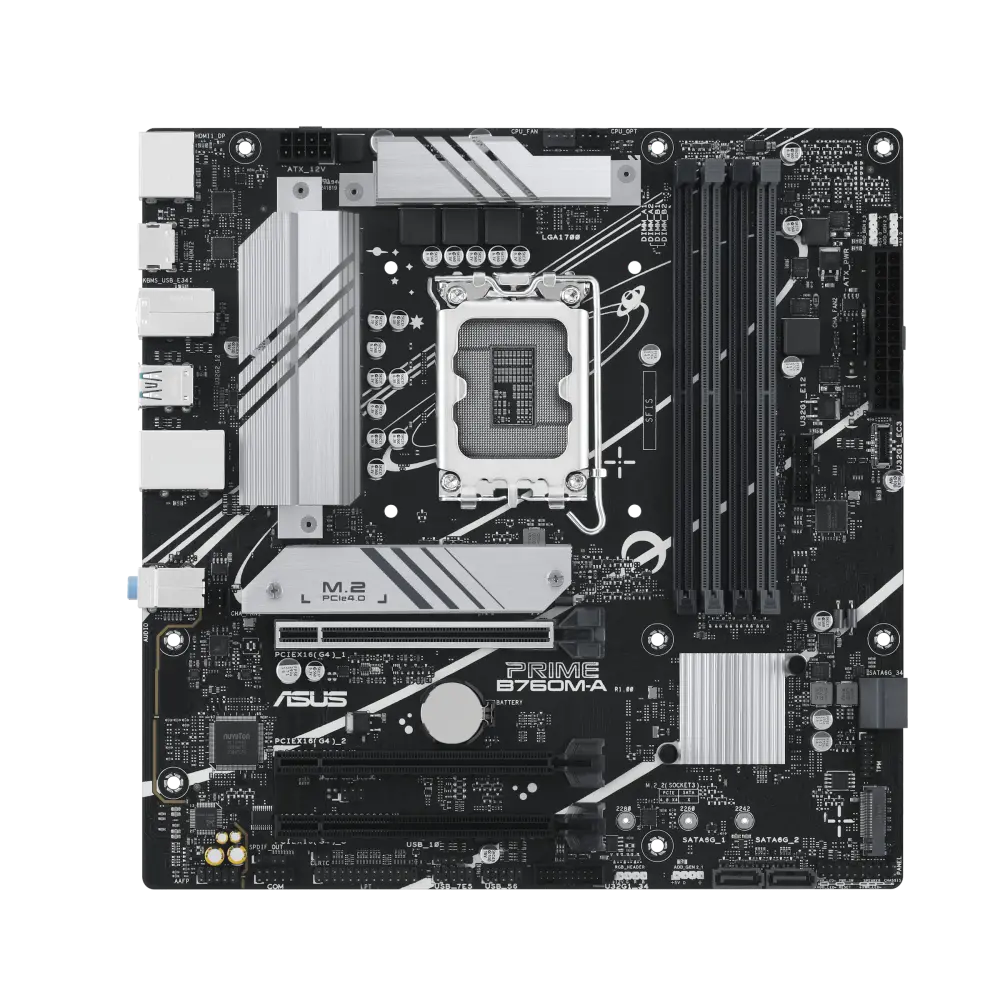

ASUS PRIME B760M-A-CSMUK manufacturer specification · PRIME B760M-A-CSMCompare the two

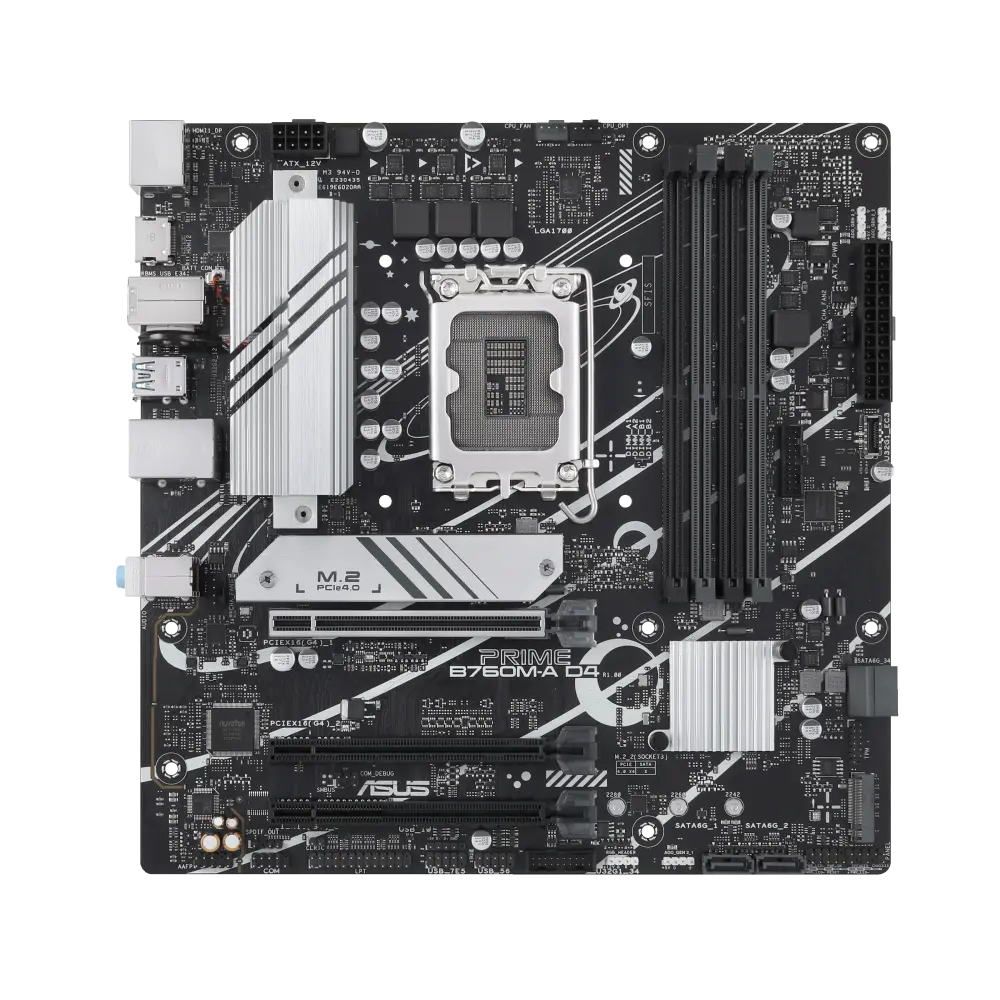

ASUS PRIME B760M-A D4-CSMUK manufacturer specification · PRIME B760M-A D4-CSMCompare the two
ASUS PRIME B760M-A D4UK manufacturer specification · PRIME B760M-A D4Compare the two
ASUS PRIME B760M-A II-CSMUK manufacturer specification · PRIME B760M-A II-CSMCompare the two

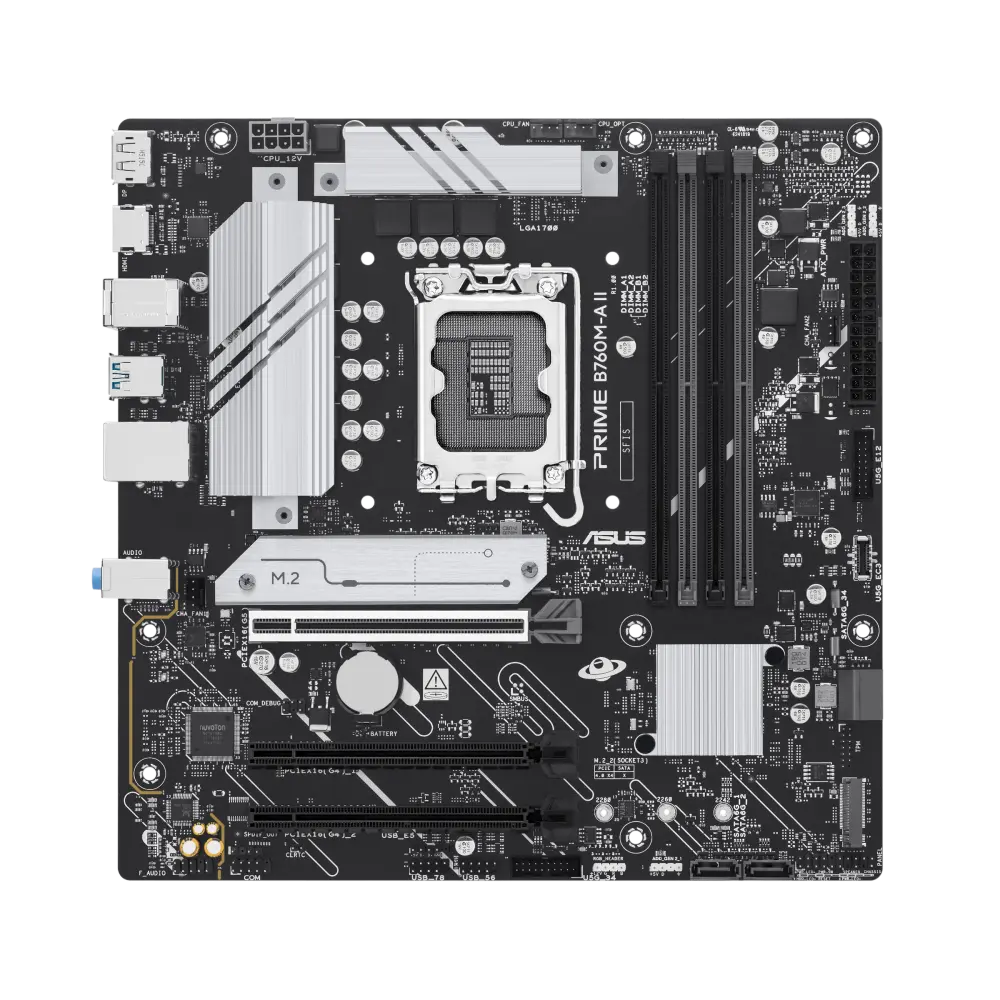

ASUS PRIME B760M-A IIUK manufacturer specification · PRIME B760M-A IICompare the two
