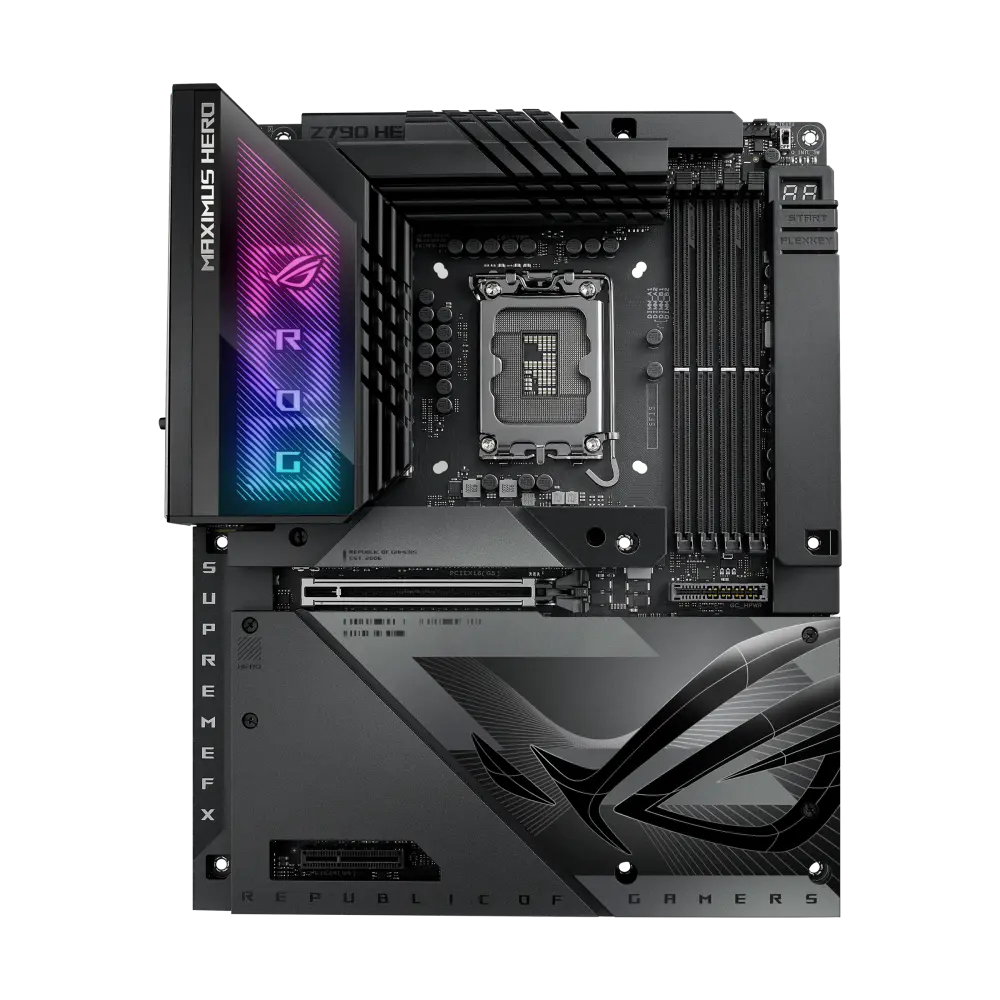

ASUS ROG MAXIMUS Z790 HERO BTF
UK manufacturer specification
- CPU socket
- LGA1700
- Chipset
- Intel® Z790 Chipset
- Form factor and dimensions
- ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ROG MAXIMUS Z790 HERO BTF motherboard, identified in the ASUS UK catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the ASUS ROG MAXIMUS Z790 HERO BTF gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with ASUS PRIME B760-PLUS D4
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the ASUS ROG MAXIMUS Z790 HERO BTF. The first matches the Compare button above.
ASUS PRIME B760-PLUS D4UK manufacturer specification · PRIME B760-PLUS D4
ASUS PRIME B760-PLUSUK manufacturer specification · PRIME B760-PLUS- Chipset
- Intel® B760 ChipsetThis one: Intel® Z790 Chipset
ASUS PRIME H770-PLUS D4UK manufacturer specification · PRIME H770-PLUS D4- Chipset
- Intel® H770 ChipsetThis one: Intel® Z790 Chipset
Key strengths
Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.
Before you buy
Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.
Works with
Products in this catalogue that list the same socket or memory type as the ASUS ROG MAXIMUS Z790 HERO BTF. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
- 2 LGA1700 processorsSocket LGA1700 on both, from cited specifications
- 50 DDR5 memory kitsMemory type DDR5 on both, from cited specifications
Every specification. With its source.
Full specifications
Exact configuration: UK manufacturer specification · ROG MAXIMUS Z790 HERO BTF
13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Platform & board
3 items
Memory
1 item
- Memory type, slots and limit
- 4 x DIMM slots, max. 192GB, DDR5 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Source
Expansion slots
1 item
- Expansion slots and restrictions
- Intel® CoreTM Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot (support x16 or x8 modes)** Intel® Z790 Chipset 1 x PCIe 4.0 x4 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.Source
Storage
1 item
- Storage interfaces and restrictions
- Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel® Z790 Chipset** M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** When M.2_1 is enabled, PCIEX16(G5)_1 will run x8 only.Source
USB & rear connections
2 items
- USB ports and headers
- Rear USB (Total 12 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 portsSource
- Rear-panel ports
- 2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS buttonSource
Networking
1 item
- Network interfaces and requirements
- 1 x Intel® 2.5Gb Ethernet ASUS LANGuard; Intel® Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.Source
Audio
1 item
- Audio interfaces
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors *The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.Source
Power, cooling & lighting
1 item
- Internal headers and connectors
- Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header 1 x Q-Installation SwitchSource
BIOS, software & diagnostics
2 items
- CPU support and BIOS requirements
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.
Source - Listed operating systems
- Windows® 11, Windows® 10 64-bitSource
