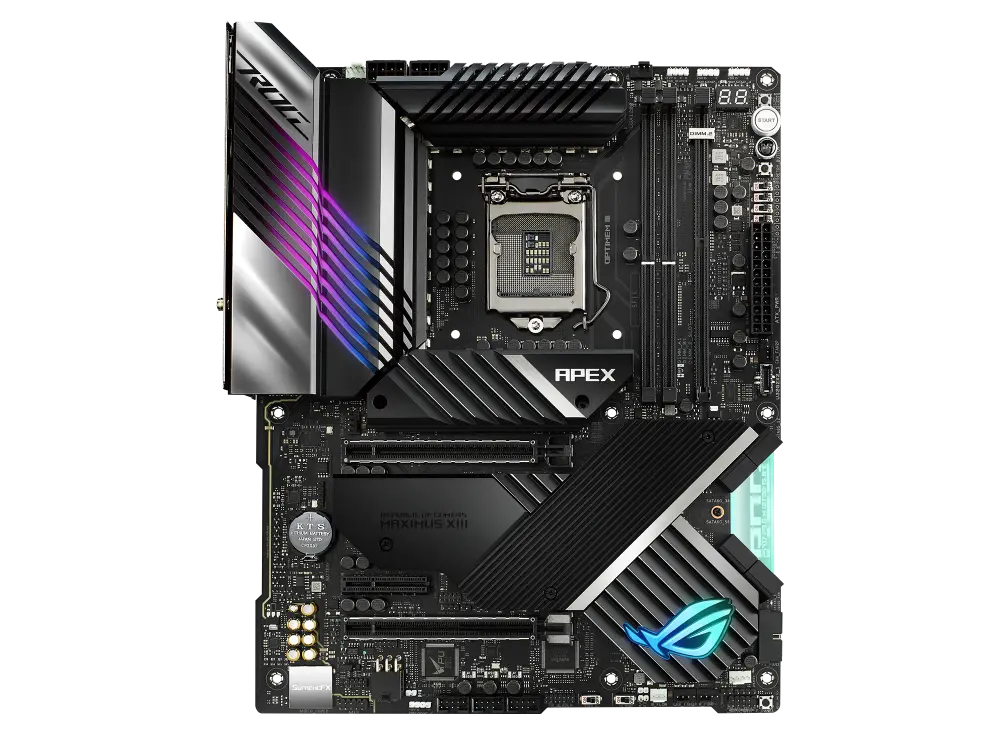

ASUS ROG MAXIMUS XIII APEX
Global manufacturer specification
- CPU socket
- LGA1200
- Chipset
- Z590
- Form factor and dimensions
- ATX, 30.5cm x 24.4cm
ROG MAXIMUS XIII APEX motherboard, identified in the ASUS Global catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the ASUS ROG MAXIMUS XIII APEX gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with ASUS ROG STRIX B560-E GAMING WIFI
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the ASUS ROG MAXIMUS XIII APEX. The first matches the Compare button above.

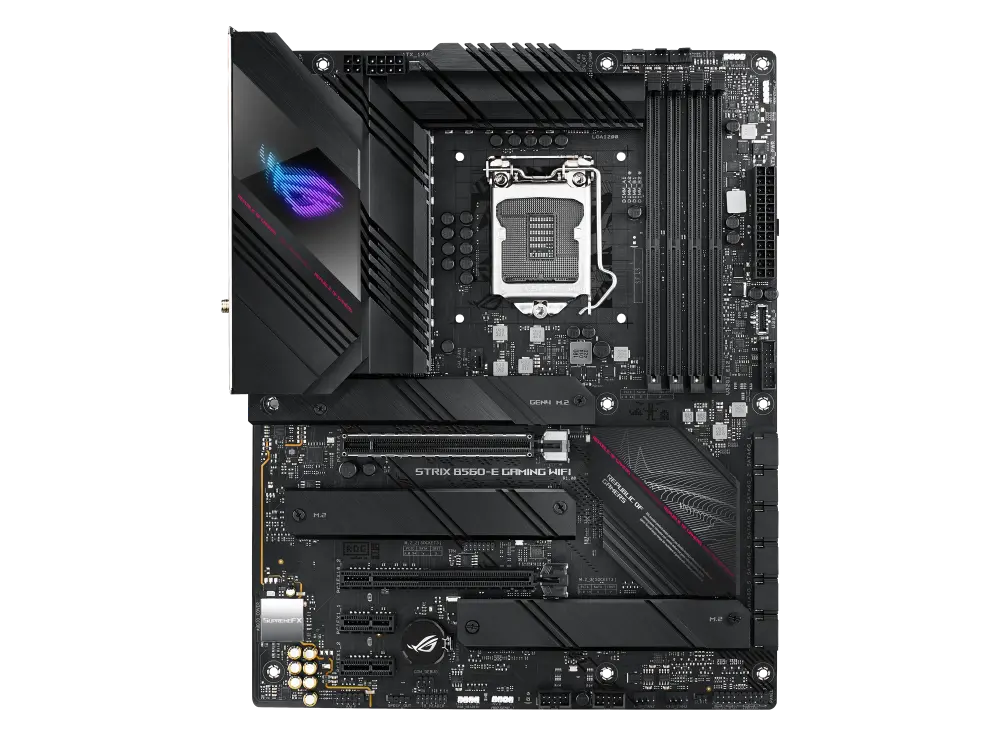

ASUS ROG STRIX B560-E GAMING WIFIGlobal manufacturer specification · ROG STRIX B560-E GAMING WIFI

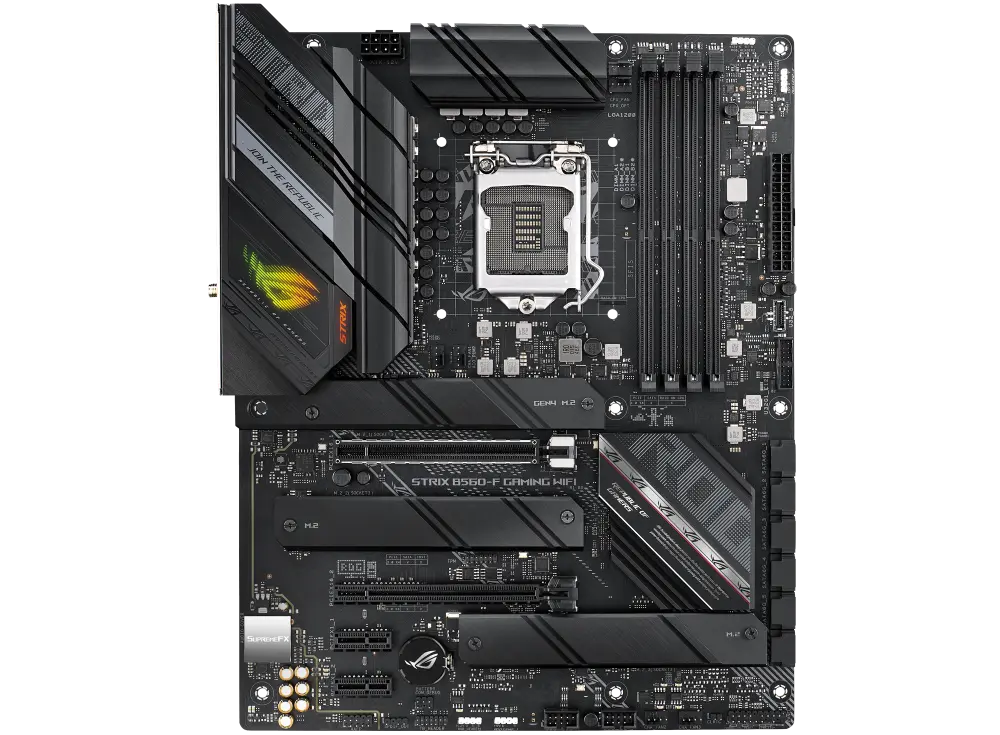

ASUS ROG STRIX B560-F GAMING WIFIGlobal manufacturer specification · ROG STRIX B560-F GAMING WIFI- Chipset
- B560This one: Z590
ASUS ROG STRIX Z590-I GAMING WIFIGlobal manufacturer specification · ROG STRIX Z590-I GAMING WIFI- Form factor and dimensions
- Mini-ITX, 17cm x 17cmThis one: ATX, 30.5cm x 24.4cm
Key strengths
Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.
Before you buy
Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.
Works with
Products in this catalogue that list the same socket or memory type as the ASUS ROG MAXIMUS XIII APEX. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
Start a build with thisOpens My setups with the ASUS ROG MAXIMUS XIII APEX in place and checks each part you addEvery specification. With its source.
Full specifications
Exact configuration: Global manufacturer specification · ROG MAXIMUS XIII APEX
13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Platform & board
3 items
Memory
1 item
- Memory type, slots and limit
- DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® Core™ processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.Source
Expansion slots
1 item
- Expansion slots and restrictions
- 2 x PCIe 3.0 x16 (x16, x8/x8), Intel® 11th &10th Gen Processors* 2 x PCIe 4.0/3.0 x16 slots** - Intel® 11th processors support PCIe 4.0 x16 or x8/x8 or x8/x4 modes - Intel® 10th processors support PCIe 3.0 x16 or x8/x8 or x8/x4 modes Intel® Z590 Chipset 1 x PCIe 3.0 x4 slot*** * Supports PCIe bandwidth bifurcation for RAID on CPU function. ** PCIEX16_1 and PCIEX16_2 share bandwidth with M.2_2. PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode when M.2_2 runs x4 mode. *** PCIEX4 slot shares bandwidth with SATA6G_56. PCIEX4 slot will run x2 mode when SATA6G_56 is populated.Source
Storage
1 item
- Storage interfaces and restrictions
- Intel®11th &10th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs M.2_2 slot (Key M), type 2242/2260/2280* - Intel® 11th processors supports PCIe 4.0 x4 mode - Intel® 10th processors supports PCIe 3.0 x4 mode Intel® Z590 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) 8 x SATA 6Gb/s ports*** RAID function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * M.2_2 slot shares bandwidth with PCIEX16_1 and PCIEX16_2. When M.2_2 runs x4 mode, PCIEX16_1 will run x8 mode and PCIEX16_2 will run x4 mode. ** When DIMM.2_1 is operating in SATA mode, SATA6G_2 will be disabled. *** SATA6G_56 shares bandwidth with PCIEX4 slot. When SATA6G_56 is populated, PCIEX4 slot will run x2 mode and SATA6G_56 will be disabled when PCIEX4 slot runs x4 mode.Source
USB & rear connections
2 items
- USB ports and headers
- Rear USB:Total 10 ports, 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A), 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 portsSource
- Rear-panel ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) portSource
Networking
1 item
- Network interfaces and requirements
- 1 x Intel® 2.5Gb Ethernet; Intel® Wi-Fi 6ESource
Audio
1 item
- Audio interfaces
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio coverSource
Power, cooling & lighting
1 item
- Internal headers and connectors
- Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors 1 x 6-pin PCIe Graphics Card connector Storage related 2 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x FS Mode switch 1 x LN2 Mode jumper 1 x Pause switch 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ header 1 x V_LATCH switchSource
BIOS, software & diagnostics
2 items
- CPU support and BIOS requirements
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.
Source - Listed operating systems
- Windows 10 64bitSource
Compare with another motherboard
More of the nearest checked motherboards by key specifications, for a side-by-side comparison.
ASUS TUF Gaming Z590-PLUS WIFIUK manufacturer specification · TUF Gaming Z590-PLUS WIFICompare the two
ASUS TUF GAMING Z590-PLUSUK manufacturer specification · TUF GAMING Z590-PLUSCompare the two
ASUS Z590 WIFI GUNDAM EDITIONUK manufacturer specification · Z590 WIFI GUNDAM EDITIONCompare the two
ASUS ROG STRIX Z590-A GAMING WIFIGlobal manufacturer specification · ROG STRIX Z590-A GAMING WIFICompare the two
ASUS ROG STRIX Z590-F GAMING WIFIGlobal manufacturer specification · ROG STRIX Z590-F GAMING WIFICompare the two
ASUS ROG STRIX Z590-E GAMING WIFIGlobal manufacturer specification · ROG STRIX Z590-E GAMING WIFICompare the two
ASUS ROG MAXIMUS XIII HEROGlobal manufacturer specification · ROG MAXIMUS XIII HEROCompare the two

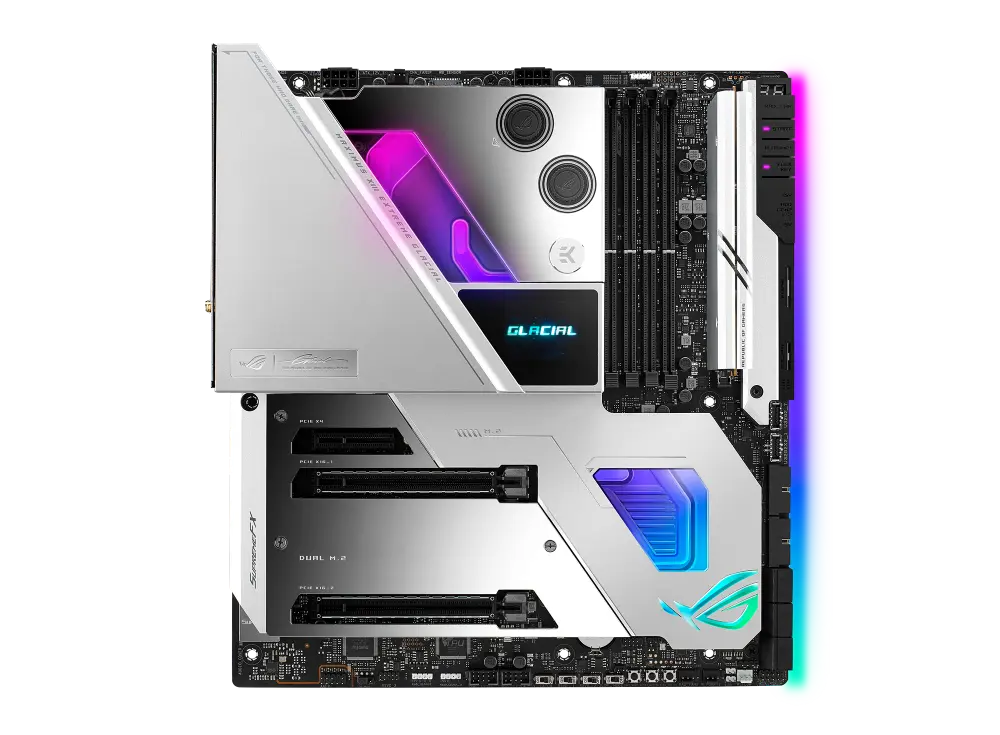

ASUS ROG Maximus XIII Extreme GlacialGlobal manufacturer specification · ROG Maximus XIII Extreme GlacialCompare the two
