ASUS Pro WS WRX90E-SAGE SE

UK manufacturer specification

CPU socket
sTR5
Chipset
AMD WRX90 Chipset
Form factor and dimensions
EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm)

Pro WS WRX90E-SAGE SE motherboard, identified in the ASUS UK catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.

Prices & buying options

UK
Search Amazon UKSearch eBay UK
US
Search Amazon USSearch eBay US

Search links open retailer results.

Price history · UK
eBay UKnew · GBP

Item price · same listing and exact model

Tracking started 18 Oct. One price recorded so far; more daily observations are needed to show changes.

Latest check£1,351.99
Lowest shown£1,351.99

1 observed day · 18 Oct–18 Oct

eBay UK observed item prices1 observed days. Last checked price per UTC day. Missing dates break the line. Use Explore dates or the table for exact values.
£1,351.9918 Oct, 12:29 UTC

Last recorded item price per UTC day. Delivery and tax are excluded. Gaps mean no recorded check. Past prices do not confirm current availability; this is not a market-wide price history.

View recorded prices
Exact listing · eBay UK · GBP
Checked (UTC)Item price
£1,351.99
Price history · US
eBay USnew · USD

Item price · same listing and exact model

Tracking started 18 Oct. One price recorded so far; more daily observations are needed to show changes.

Latest check$1,189.98
Lowest shown$1,189.98

1 observed day · 18 Oct–18 Oct

eBay US observed item prices1 observed days. Last checked price per UTC day. Missing dates break the line. Use Explore dates or the table for exact values.
$1,189.9818 Oct, 12:29 UTC

Last recorded item price per UTC day. Delivery and tax are excluded. Gaps mean no recorded check. Past prices do not confirm current availability; this is not a market-wide price history.

View recorded prices
Exact listing · eBay US · USD
Checked (UTC)Item price
$1,189.98

As an eBay Partner, we may be compensated if you make a purchase.

Affiliate links

We may earn a commission. Search results can include other models; check the exact variant and final price with the retailer.

As an Amazon Associate I earn from qualifying purchases.

Price alert

Email me when the ASUS Pro WS WRX90E-SAGE SE gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.

We'll send a link to confirm first.

THE ACTUAL PRODUCT
ASUS Pro WS WRX90E-SAGE SE official product image
Official product image · Image source detailsProduct imagery does not establish a retailer’s bundle or condition.

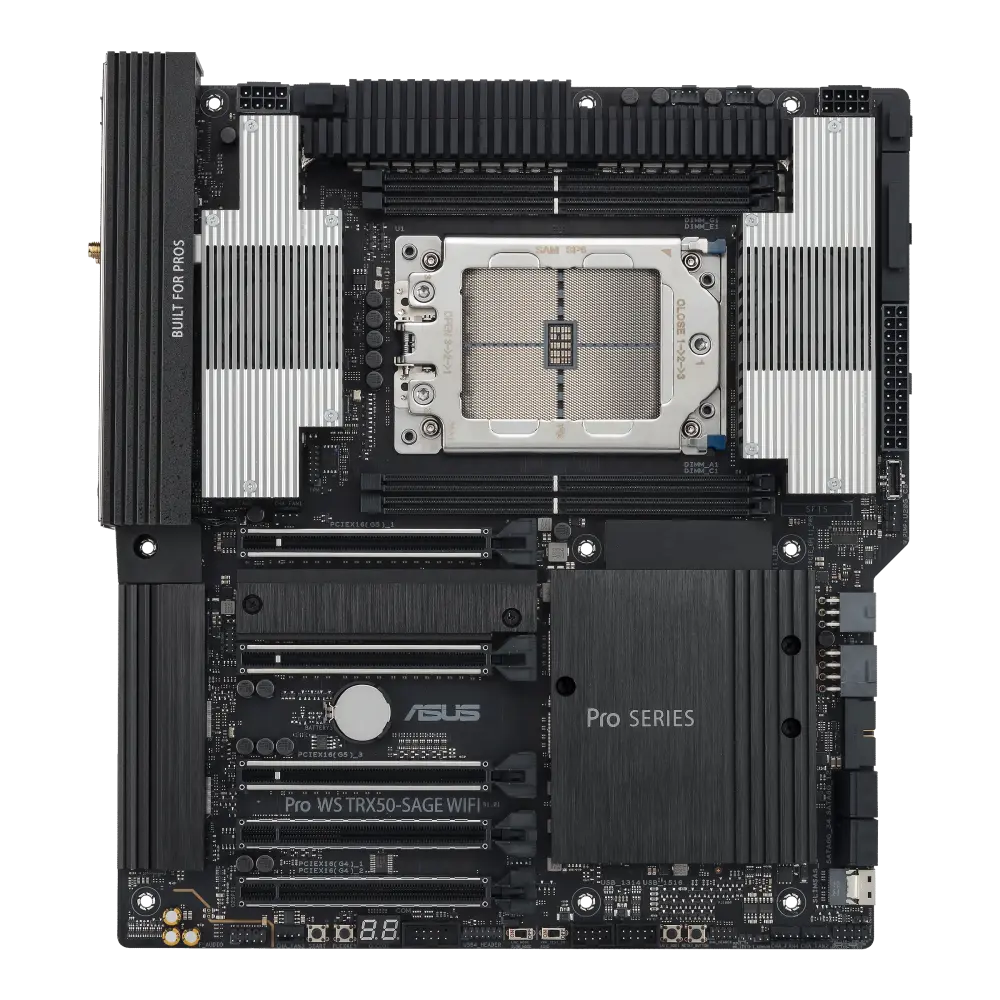

Compare with ASUS Pro WS TRX50-SAGE WIFI A
Explore alternativesUpgrade from this product

Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.

Options worth comparing

Explore all alternatives

The nearest checked motherboards by key specifications, with what differs from the ASUS Pro WS WRX90E-SAGE SE. The first matches the Compare button above.

The useful part.

Key strengths

Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.

Manufacturer source
The checks that matter.

Before you buy

Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.

Manufacturer source
Build around it.

Works with

Products in this catalogue that list the same socket or memory type as the ASUS Pro WS WRX90E-SAGE SE. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.

Start a build with thisOpens My setups with the ASUS Pro WS WRX90E-SAGE SE in place and checks each part you add
Every specification. With its source.

Full specifications

Suggest a correctionOur publishing standard

Exact configuration: UK manufacturer specification · Pro WS WRX90E-SAGE SE

13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.

Platform & board

3 items
CPU socket
sTR5Source
Chipset
AMD WRX90 ChipsetSource
Form factor and dimensions
EEB Form Factor 12 inch x 13 inch (30.5 cm x 33 cm)Source

Memory

1 item
Memory type, slots and limit
8 x DIMM slots, DDR5, ECC Registered Memory* 8 Channel Memory Architecture *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Source

Expansion slots

1 item
Expansion slots and restrictions
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series Processors* 6 x PCIe 5.0 x16 slots 1 x PCIe 5.0 x16 slot (x8 mode) *Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/) **To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.Source

Storage

1 item
Storage interfaces and restrictions
Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports* AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD WRX90 Chipset 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.Source

USB & rear connections

2 items
USB ports and headers
Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A ) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsSource
Rear-panel ports
2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel® dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS buttonSource

Networking

1 item
Network interfaces and requirements
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600) 1 x Intel® dual 10Gb Ethernet ASUS LANGuardSource

Audio

1 item
Audio interfaces
Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit *A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output. * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.Source

Power, cooling & lighting

1 item
Internal headers and connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor headerSource

BIOS, software & diagnostics

2 items
CPU support and BIOS requirements
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series* *Refer to www.asus.com for CPU support list. **System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration. This behavior is normal. Please allow sufficient time for the process to complete. BIOS: 256 Mb Flash ROM, UEFI AMI BIOS(text-based)

Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.

Source
Listed operating systems
Windows® 11 Windows® 10 64-bitSource
