ASUS Pro WS W680M-ACE SE

UK manufacturer specification

CPU socket
LGA1700
Chipset
Intel® W680 Chipset
Form factor and dimensions
micro-ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Pro WS W680M-ACE SE motherboard, identified in the ASUS UK catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.

Prices & buying options

UK
Search Amazon UKSearch eBay UK
US
Search Amazon USSearch eBay US

Search links open retailer results.

UK: no verified listing yet · checked daily

US: no verified listing yet · checked daily

As an eBay Partner, we may be compensated if you make a purchase.

Affiliate links

We may earn a commission. Search results can include other models; check the exact variant and final price with the retailer.

As an Amazon Associate I earn from qualifying purchases.

Price alert

Email me when the ASUS Pro WS W680M-ACE SE gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.

We'll send a link to confirm first.

THE ACTUAL PRODUCT
ASUS Pro WS W680M-ACE SE official product image
Official product image · Image source detailsProduct imagery does not establish a retailer’s bundle or condition.

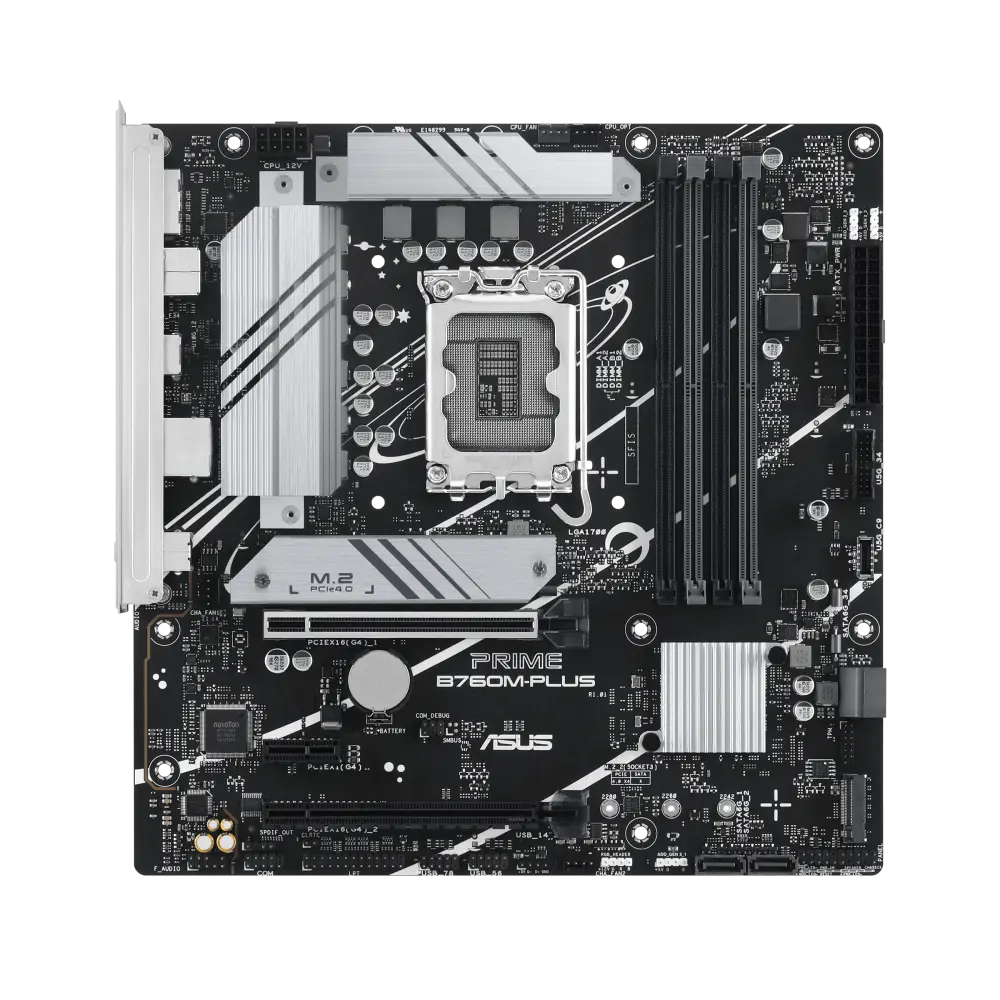

Compare with ASUS PRIME B760M-PLUS
Explore alternativesUpgrade from this product

Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.

Options worth comparing

Explore all alternatives

The nearest checked motherboards by key specifications, with what differs from the ASUS Pro WS W680M-ACE SE. The first matches the Compare button above.

The useful part.

Key strengths

Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.

Manufacturer source
The checks that matter.

Before you buy

Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.

Manufacturer source
Build around it.

Works with

Products in this catalogue that list the same socket or memory type as the ASUS Pro WS W680M-ACE SE. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.

Start a build with thisOpens My setups with the ASUS Pro WS W680M-ACE SE in place and checks each part you add
Every specification. With its source.

Full specifications

Suggest a correctionOur publishing standard

Exact configuration: UK manufacturer specification · Pro WS W680M-ACE SE

13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.

Platform & board

3 items
CPU socket
LGA1700Source
Chipset
Intel® W680 ChipsetSource
Form factor and dimensions
micro-ATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )Source

Memory

1 item
Memory type, slots and limit
4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Source

Expansion slots

1 item
Expansion slots and restrictions
Intel® Core™ Processors (14th & 13th & 12th Gen)* - 1 x PCIe 5.0 x16 slot Intel® W680 Chipset - 1 x PCIe 4.0 x4 slot - 1 x PCIe 3.0 x1 slotSource

Storage

1 item
Storage interfaces and restrictions
Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® W680 Chipset** - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)*** * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.Source

USB & rear connections

2 items
USB ports and headers
Rear USB (Total 6 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 portsSource
Rear-panel ports
-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®) -4 x USB 3.2 Gen 1 ports (4 x Type-A) -1 x DisplayPort -1 x HDMI® port -1 x VGA port from AST2600 -2 x Intel® 2.5Gb Ethernet ports -1 x Realtek 1Gb Ethernet dedicated for AST2600 -3 x Audio jacks -1 x BIOS FlashbackTM buttonSource

Networking

1 item
Network interfaces and requirements
2 x Intel® 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet dedicated for AST2600 ASUS LANGuard; M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.Source

Audio

1 item
Audio interfaces
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuitSource

Power, cooling & lighting

1 item
Internal headers and connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin W_PUMP+ header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS port USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x LPT header 1 x T-sensor 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function BMC Related 1 x BMC LED and switch 1 x VGA switch1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Q_PSU switch 1 x PSU SMBus header 1 x VPP_I2C header 1 x Micro SD card socket 1 x BMC_T_SENSOR header 1 x Location button header 1 x Location LED and header 1 x Message LED and headerSource

BIOS, software & diagnostics

2 items
CPU support and BIOS requirements
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* * Refer to www.asus.com for CPU support list. BIOS: 256 Mb Flash ROM, UEFI AMI BIOS(text-based)

Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.

Source
Listed operating systems
Windows® 11, Windows® 10 64-bitSource
Similar products.

Compare with another motherboard

More of the nearest checked motherboards by key specifications, for a side-by-side comparison.

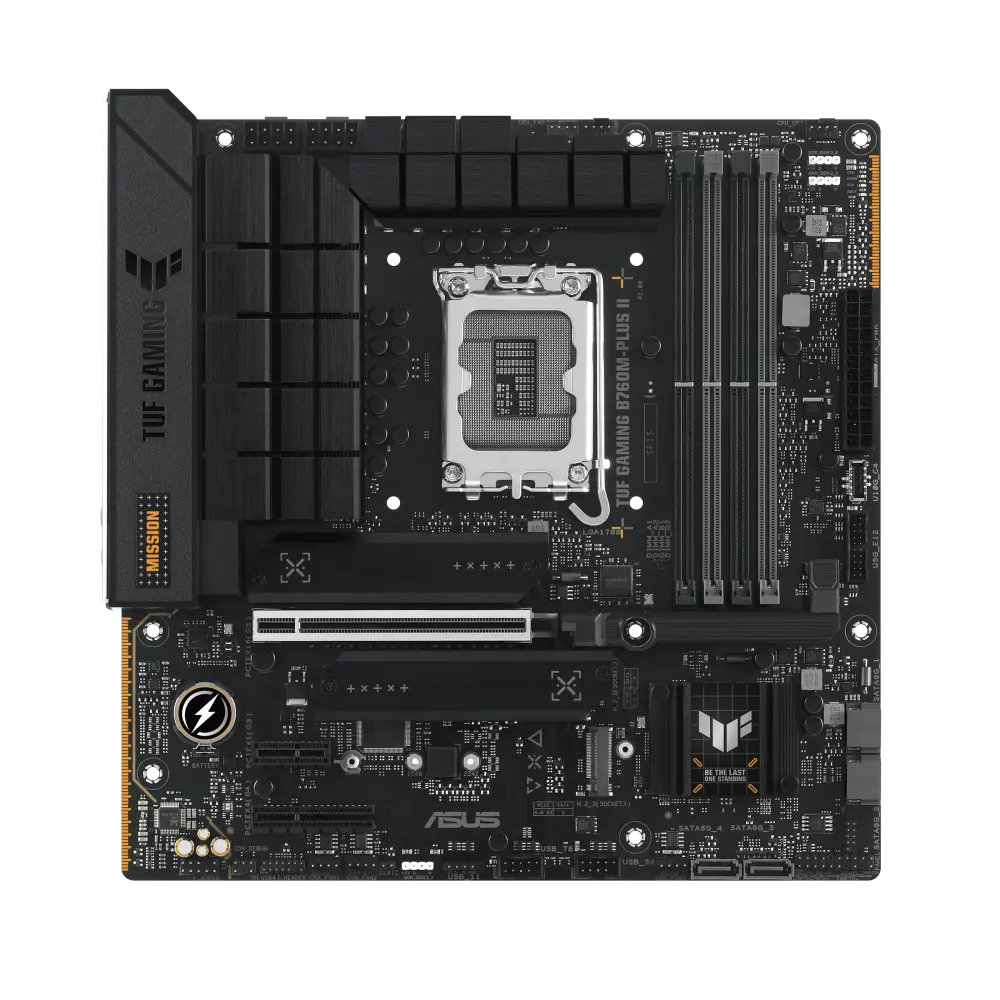

ASUS TUF GAMING B760M-PLUS II official product imageASUS TUF GAMING B760M-PLUS IIUK manufacturer specification · TUF GAMING B760M-PLUS IICompare the two ASUS PRIME B760M-PLUS-CSM official product imageASUS PRIME B760M-PLUS-CSMGlobal manufacturer specification · PRIME B760M-PLUS-CSMCompare the two ASUS Pro WS W680-ACE IPMI official product imageASUS Pro WS W680-ACE IPMIUK manufacturer specification · Pro WS W680-ACE IPMICompare the two ASUS Pro WS W680-ACE official product imageASUS Pro WS W680-ACEUK manufacturer specification · Pro WS W680-ACECompare the two MSI B760 GAMING PLUS WIFI motherboard, top view of the exact global model; CPU and memory are not installedMSI B760 GAMING PLUS WIFILGA1700 · ATX · DDR5 · board-only configuration · MSI global specificationCompare the two MSI PRO Z790-A MAX WIFI motherboard, top view of the exact global model; CPU and memory are not installedMSI PRO Z790-A MAX WIFILGA1700 · ATX · DDR5 · board-only configuration · MSI global specificationCompare the two MSI PRO B760M-P DDR4 motherboard, top view of the exact global model; CPU and memory are not installedMSI PRO B760M-P DDR4LGA1700 · Micro-ATX · DDR4 · board-only configuration · MSI global specificationCompare the two MSI PRO H610M-G DDR4 motherboard, top view of the exact global model; CPU and memory are not installedMSI PRO H610M-G DDR4LGA1700 · Micro-ATX · DDR4 · board-only configuration · MSI global specificationCompare the two
