ASUS Pro Q670M-C-CSM

UK manufacturer specification

CPU socket
LGA1700
Chipset
Intel® Q670 Chipset
Form factor and dimensions
micro-ATX 24.4cm x 24.4cm

Pro Q670M-C-CSM motherboard, identified in the ASUS UK catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.

Prices & buying options

UK
Search Amazon UKSearch eBay UK
US
Search Amazon USSearch eBay US

Search links open retailer results.

UK: no verified listing yet · checked daily

US: no verified listing yet · checked daily

As an eBay Partner, we may be compensated if you make a purchase.

Affiliate links

We may earn a commission. Search results can include other models; check the exact variant and final price with the retailer.

As an Amazon Associate I earn from qualifying purchases.

Price alert

Email me when the ASUS Pro Q670M-C-CSM gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.

We'll send a link to confirm first.

THE ACTUAL PRODUCT

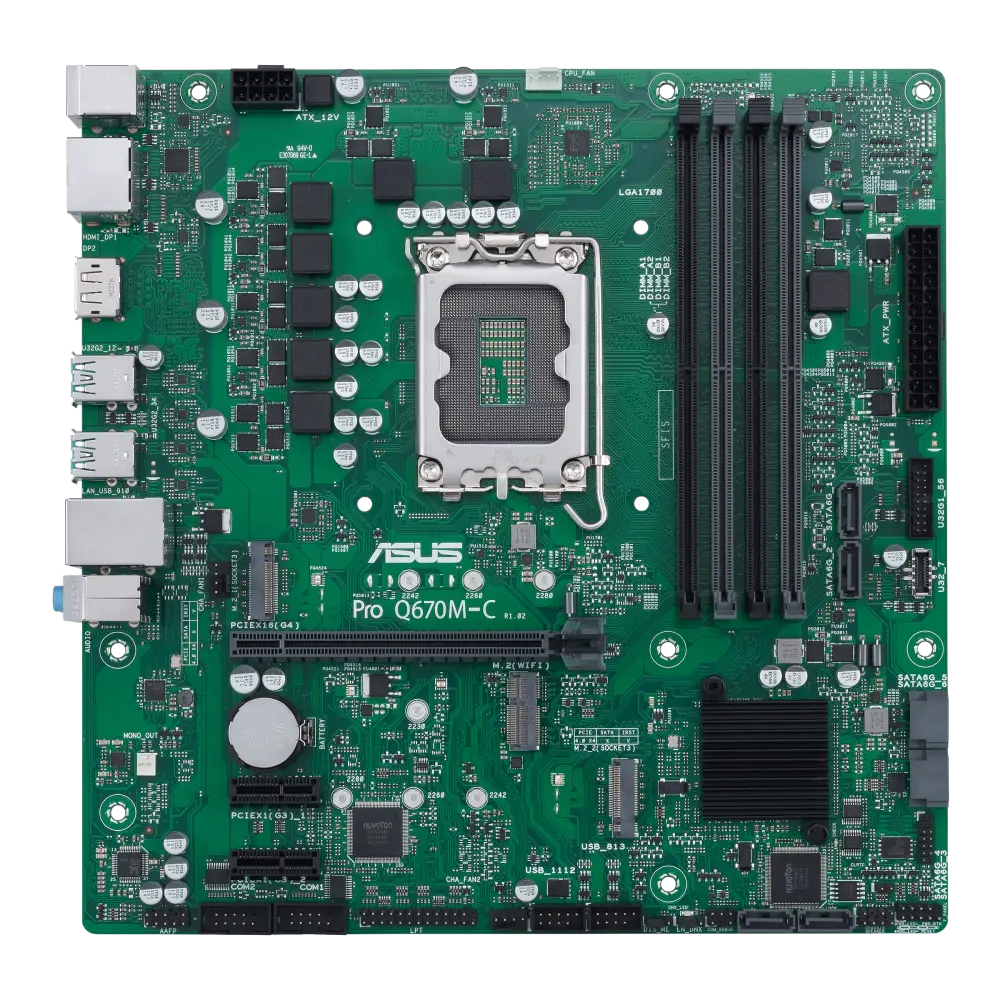

ASUS Pro Q670M-C-CSM official product image
Official product image · Image source detailsProduct imagery does not establish a retailer’s bundle or condition.
Compare with ASUS Pro B660M-C D4-CSM
Explore alternativesUpgrade from this product

Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.

Options worth comparing

Explore all alternatives

The nearest checked motherboards by key specifications, with what differs from the ASUS Pro Q670M-C-CSM. The first matches the Compare button above.

The useful part.

Key strengths

Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.

Manufacturer source
The checks that matter.

Before you buy

Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.

Manufacturer source
Build around it.

Works with

Products in this catalogue that list the same socket or memory type as the ASUS Pro Q670M-C-CSM. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.

Start a build with thisOpens My setups with the ASUS Pro Q670M-C-CSM in place and checks each part you add
Every specification. With its source.

Full specifications

Suggest a correctionOur publishing standard

Exact configuration: UK manufacturer specification · Pro Q670M-C-CSM

13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.

Platform & board

3 items
CPU socket
LGA1700Source
Chipset
Intel® Q670 ChipsetSource
Form factor and dimensions
micro-ATX 24.4cm x 24.4cmSource

Memory

1 item
Memory type, slots and limit
4 x DIMM, Max. 192GB, Support for DDR5 5600/5400/5200/5000/4800 memory modules* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Support for ECC Un-buffered DIMM memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM memory modules Optimem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.Source

Expansion slots

1 item
Expansion slots and restrictions
Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 4.0/3.0 x16 slot Intel® Q670 Chipset 2 x PCIe 3.0 x1 slots * Please check PCIe bifurcation table in support site.Source

Storage

1 item
Storage interfaces and restrictions
Intel® Core™ Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2242/2260/2280(support PCIe 4.0 x4 mode) Intel® Q670 Chipset** M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.Source

USB & rear connections

2 items
USB ports and headers
Rear USB:Total 6 ports 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsSource
Rear-panel ports
4 x USB 3.2 Gen 2 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI® port 3 x Audio jacks 1 x Intel® 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) portSource

Networking

1 item
Network interfaces and requirements
1 x Intel® 1Gb Ethernet ASUS LANGuard; M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.Source

Audio

1 item
Audio interfaces
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Source

Power, cooling & lighting

1 item
Internal headers and connectors
Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 10-1 System Panel header Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 10-1 System Panel headerSource

BIOS, software & diagnostics

2 items
CPU support and BIOS requirements
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. BIOS: 256 Mb Flash ROM

Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.

Source
Listed operating systems
Windows 11, Windows 10 64-bitSource
