MOTHERBOARDS
ASUS PRIME Z790-A WIFI-CSM
Global manufacturer specification
- CPU socket
- LGA1700
- Chipset
- Intel® Z790 Chipset
- Form factor and dimensions
- ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

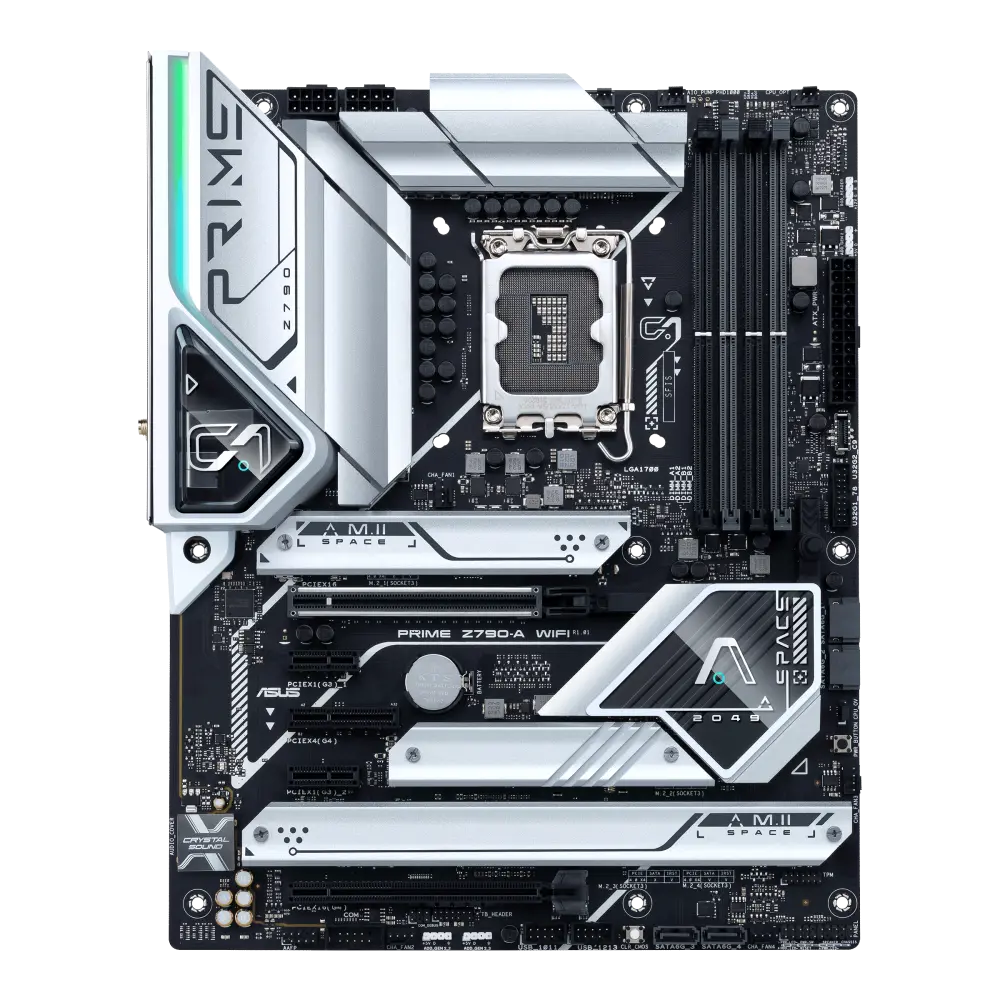

PRIME Z790-A WIFI-CSM motherboard, identified in the ASUS Global catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the ASUS PRIME Z790-A WIFI-CSM gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with ASUS PRIME B760-PLUS D4
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the ASUS PRIME Z790-A WIFI-CSM. The first matches the Compare button above.
ASUS PRIME B760-PLUS D4UK manufacturer specification · PRIME B760-PLUS D4
ASUS PRIME B760-PLUSUK manufacturer specification · PRIME B760-PLUS- Chipset
- Intel® B760 ChipsetThis one: Intel® Z790 Chipset
ASUS PRIME H770-PLUS D4UK manufacturer specification · PRIME H770-PLUS D4- Chipset
- Intel® H770 ChipsetThis one: Intel® Z790 Chipset
Key strengths
Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.
Before you buy
Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.
Works with
Products in this catalogue that list the same socket or memory type as the ASUS PRIME Z790-A WIFI-CSM. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
- 2 LGA1700 processorsSocket LGA1700 on both, from cited specifications
- 50 DDR5 memory kitsMemory type DDR5 on both, from cited specifications
Every specification. With its source.
Full specifications
Exact configuration: Global manufacturer specification · PRIME Z790-A WIFI-CSM
13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Platform & board
3 items
Memory
1 item
- Memory type, slots and limit
- 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Source
Expansion slots
1 item
- Expansion slots and restrictions
- Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.Source
Storage
1 item
- Storage interfaces and restrictions
- Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.Source
USB & rear connections
2 items
- USB ports and headers
- Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 portsSource
- Rear-panel ports
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacksSource
Networking
1 item
- Network interfaces and requirements
- 1 x Intel® 2.5Gb Ethernet ASUS LANGuard; Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3** * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.Source
Audio
1 item
- Audio interfaces
- Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.Source
Power, cooling & lighting
1 item
- Internal headers and connectors
- Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ headerSource
BIOS, software & diagnostics
2 items
- CPU support and BIOS requirements
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.
Source - Listed operating systems
- Windows® 11, Windows® 10 64-bitSource
Compare with another motherboard
More of the nearest checked motherboards by key specifications, for a side-by-side comparison.
ASUS PRIME Z790-A WIFIUK manufacturer specification · PRIME Z790-A WIFICompare the two

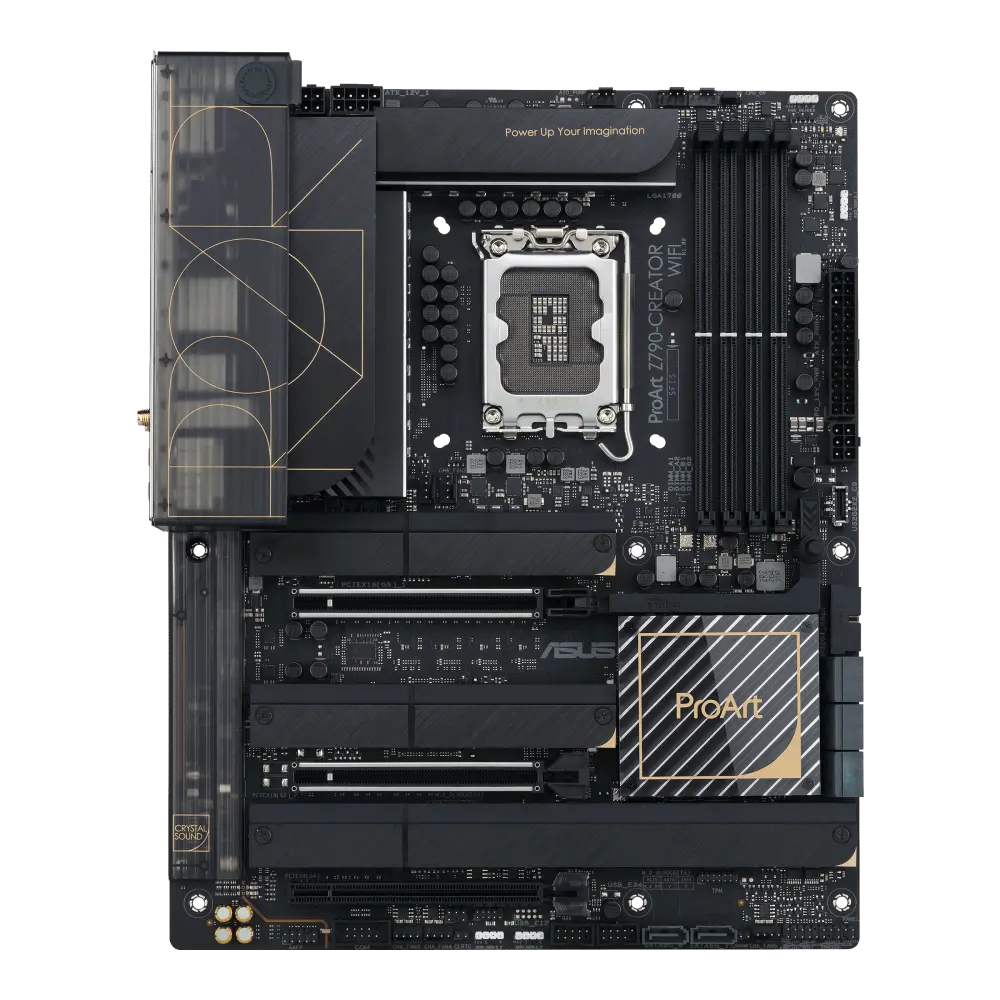

ASUS ProArt Z790-CREATOR WIFIUK manufacturer specification · ProArt Z790-CREATOR WIFICompare the two
ASUS TUF GAMING Z790-BTF WIFIUK manufacturer specification · TUF GAMING Z790-BTF WIFICompare the two
ASUS TUF GAMING Z790-PLUS D4UK manufacturer specification · TUF GAMING Z790-PLUS D4Compare the two
ASUS TUF GAMING Z790-PLUS WIFI D4UK manufacturer specification · TUF GAMING Z790-PLUS WIFI D4Compare the two

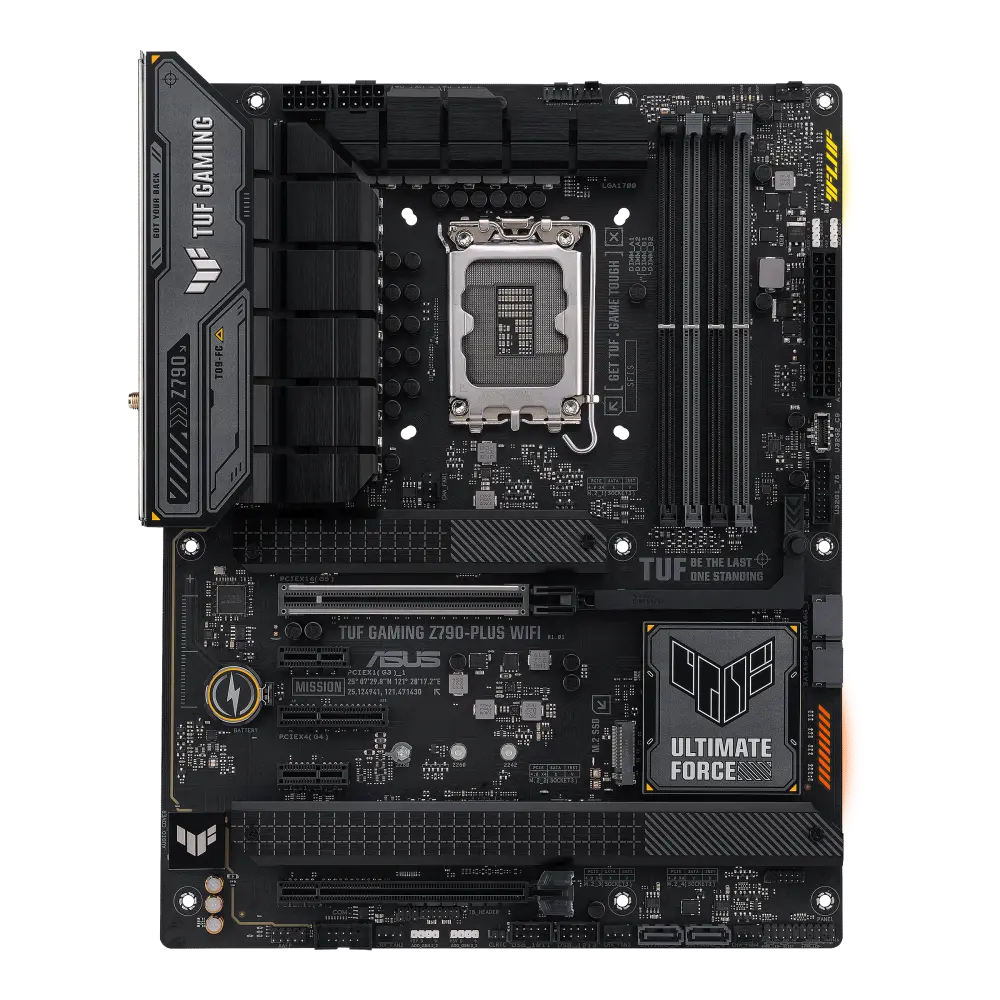

ASUS TUF GAMING Z790-PLUS WIFIUK manufacturer specification · TUF GAMING Z790-PLUS WIFICompare the two
ASUS TUF GAMING Z790-PRO WIFIUK manufacturer specification · TUF GAMING Z790-PRO WIFICompare the two

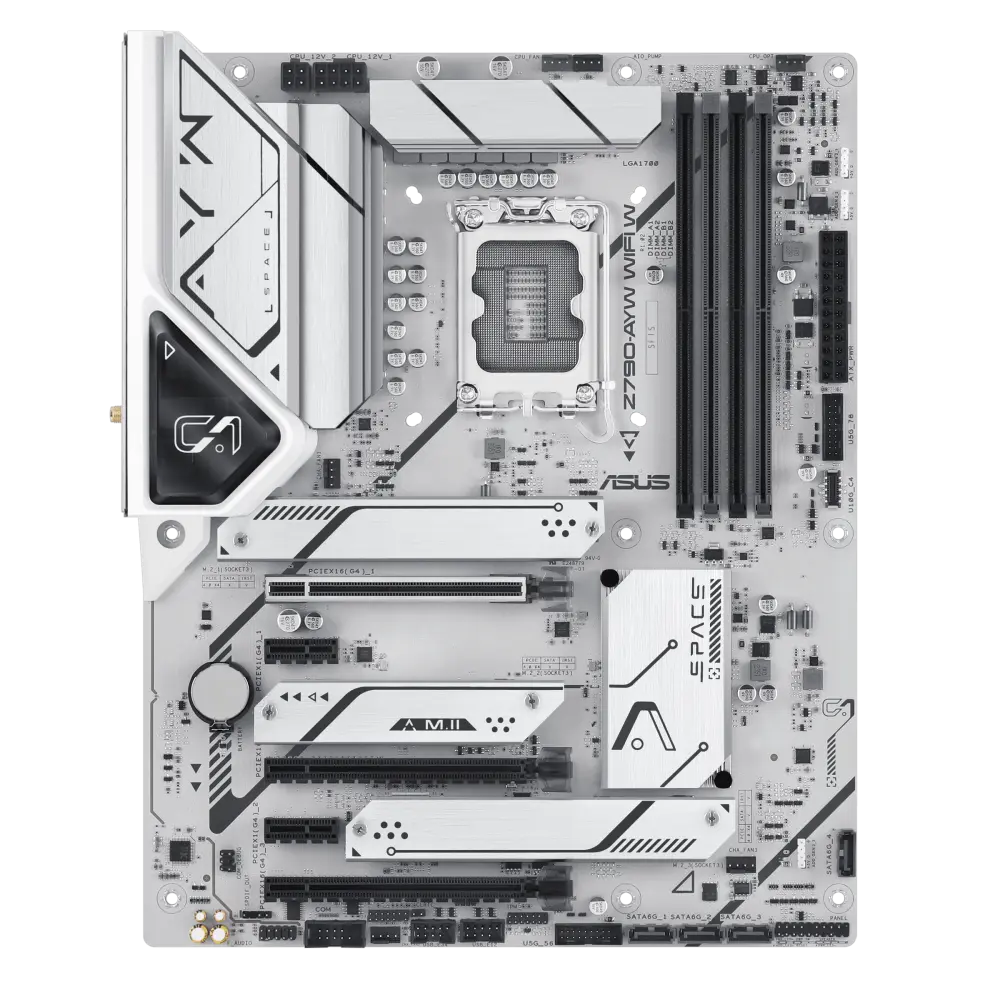

ASUS Z790-AYW WIFI W-CSMUK manufacturer specification · Z790-AYW WIFI W-CSMCompare the two
