ASUS PRIME Z690-P-CSM

Global manufacturer specification

CPU socket
LGA1700
Chipset
Intel® Z690 Chipset
Form factor and dimensions
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )

PRIME Z690-P-CSM motherboard, identified in the ASUS Global catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.

Prices & buying options

UK
Search Amazon UKSearch eBay UK
US
Search Amazon USSearch eBay US

Search links open retailer results.

UK: no verified listing yet · checked daily

US: no verified listing yet · checked daily

As an eBay Partner, we may be compensated if you make a purchase.

Affiliate links

We may earn a commission. Search results can include other models; check the exact variant and final price with the retailer.

As an Amazon Associate I earn from qualifying purchases.

Price alert

Email me when the ASUS PRIME Z690-P-CSM gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.

We'll send a link to confirm first.

THE ACTUAL PRODUCT

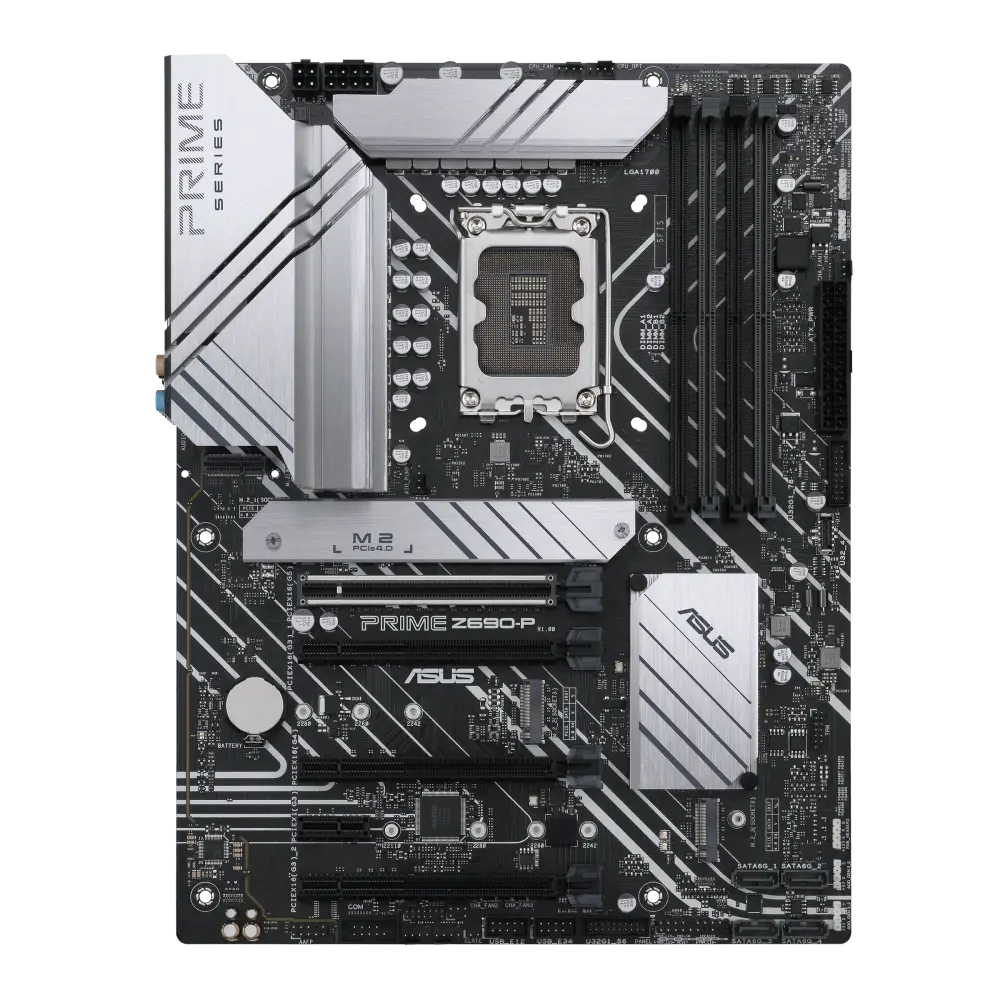

ASUS PRIME Z690-P-CSM official product image
Official product image · Image source detailsProduct imagery does not establish a retailer’s bundle or condition.
Compare with ASUS PRIME Z790-P-CSM
Explore alternativesUpgrade from this product

Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.

Options worth comparing

Explore all alternatives

The nearest checked motherboards by key specifications, with what differs from the ASUS PRIME Z690-P-CSM. The first matches the Compare button above.

The useful part.

Key strengths

Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.

Manufacturer source
The checks that matter.

Before you buy

Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.

Manufacturer source
Build around it.

Works with

Products in this catalogue that list the same socket or memory type as the ASUS PRIME Z690-P-CSM. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.

Start a build with thisOpens My setups with the ASUS PRIME Z690-P-CSM in place and checks each part you add
Every specification. With its source.

Full specifications

Suggest a correctionOur publishing standard

Exact configuration: Global manufacturer specification · PRIME Z690-P-CSM

13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.

Platform & board

3 items
CPU socket
LGA1700Source
Chipset
Intel® Z690 ChipsetSource
Form factor and dimensions
ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )Source

Memory

1 item
Memory type, slots and limit
4 x DIMM, Max. 192GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.Source

Expansion slots

1 item
Expansion slots and restrictions
Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slotSource

Storage

1 item
Storage interfaces and restrictions
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.Source

USB & rear connections

2 items
USB ports and headers
Rear USB (Total 6 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.Source
Rear-panel ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo portSource

Networking

1 item
Network interfaces and requirements
1 x Realtek 2.5Gb Ethernet; V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.Source

Audio

1 item
Audio interfaces
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layersSource

Power, cooling & lighting

1 item
Internal headers and connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ headerSource

BIOS, software & diagnostics

2 items
CPU support and BIOS requirements
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.

Source
Listed operating systems
Windows® 11 64-bit, Windows® 10 64-bitSource
