MOTHERBOARDS
ASUS PRIME H510M-A R2.0
UK manufacturer specification
- CPU socket
- LGA1200
- Chipset
- Intel® H470 Chipset
- Form factor and dimensions
- mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
PRIME H510M-A R2.0 motherboard, identified in the ASUS UK catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the ASUS PRIME H510M-A R2.0 gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with ASUS PRIME H510M-E
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the ASUS PRIME H510M-A R2.0. The first matches the Compare button above.
ASUS PRIME H510M-EUK manufacturer specification · PRIME H510M-E
ASUS PRIME H510M-K R2.0UK manufacturer specification · PRIME H510M-K R2.0- Form factor and dimensions
- micro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )This one: mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
ASUS PRIME H510M-R R2.0UK manufacturer specification · PRIME H510M-R R2.0- Form factor and dimensions
- mATX Form Factor 8.6 inch x 7.4 inch ( 21.8 cm x 18.8 cm )This one: mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
Key strengths
Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.
Before you buy
Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.
Works with
Products in this catalogue that list the same socket or memory type as the ASUS PRIME H510M-A R2.0. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
Start a build with thisOpens My setups with the ASUS PRIME H510M-A R2.0 in place and checks each part you addEvery specification. With its source.
Full specifications
Exact configuration: UK manufacturer specification · PRIME H510M-A R2.0
13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Platform & board
3 items
Memory
1 item
- Memory type, slots and limit
- 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. *11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.Source
Expansion slots
1 item
- Expansion slots and restrictions
- Intel® 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H470 Chipset 2 x PCIe 3.0 x1 slotsSource
Storage
1 item
- Storage interfaces and restrictions
- Total supports 1 x M.2 slot and 4 x SATA6Gb/s ports Intel® H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s portsSource
USB & rear connections
2 items
- USB ports and headers
- Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header support 1 additional USB 2.0 portSource
- Rear-panel ports
- 4 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 2 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) portSource
Networking
1 item
- Network interfaces and requirements
- 1 x Realtek 1Gb EthernetSource
Audio
1 item
- Audio interfaces
- Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Source
Power, cooling & lighting
1 item
- Internal headers and connectors
- Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header support 1 additional USB 2.0 port Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel headerSource
BIOS, software & diagnostics
2 items
- CPU support and BIOS requirements
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** *Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.
Source - Listed operating systems
- Windows® 10 64-bitSource
Compare with another motherboard
More of the nearest checked motherboards by key specifications, for a side-by-side comparison.
ASUS PRIME H510M-E R2.0UK manufacturer specification · PRIME H510M-E R2.0Compare the two

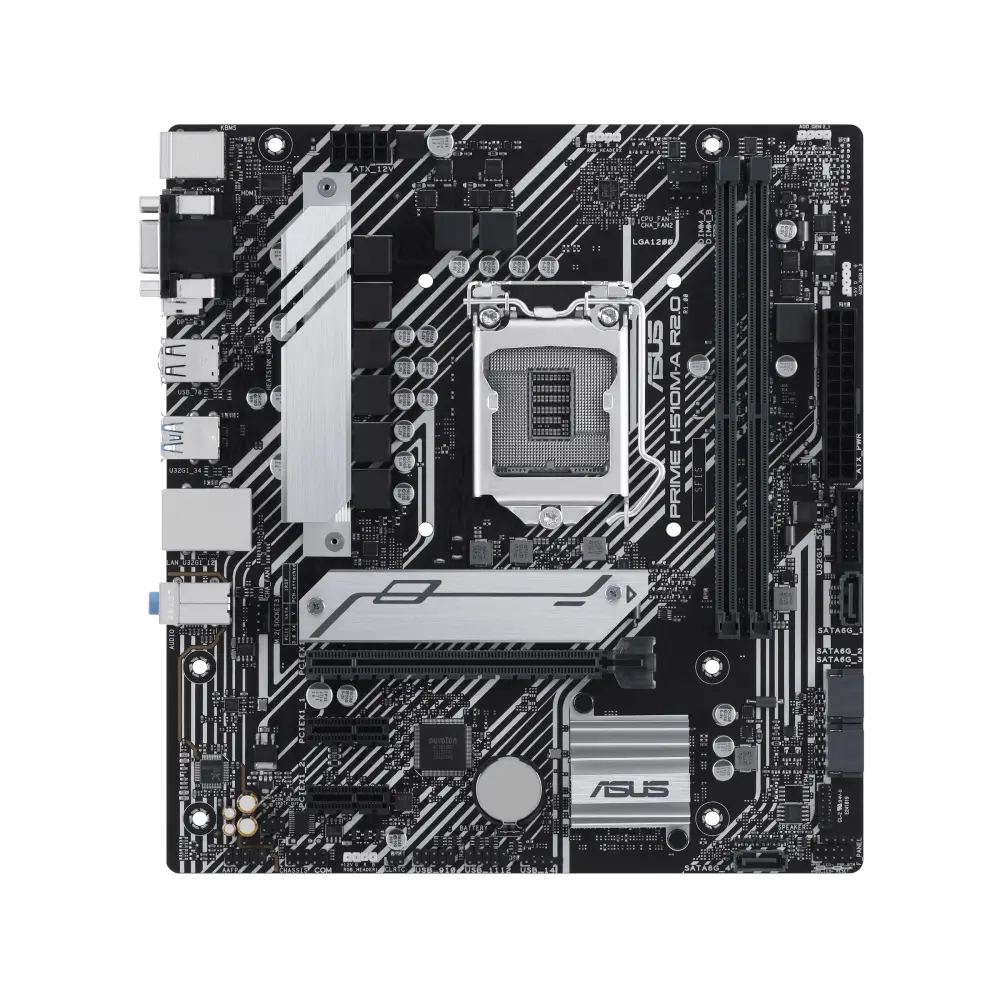

ASUS PRIME H510M-A R2.0-CSMGlobal manufacturer specification · PRIME H510M-A R2.0-CSMCompare the two
ASUS PRIME H510M-E R2.0-CSMGlobal manufacturer specification · PRIME H510M-E R2.0-CSMCompare the two

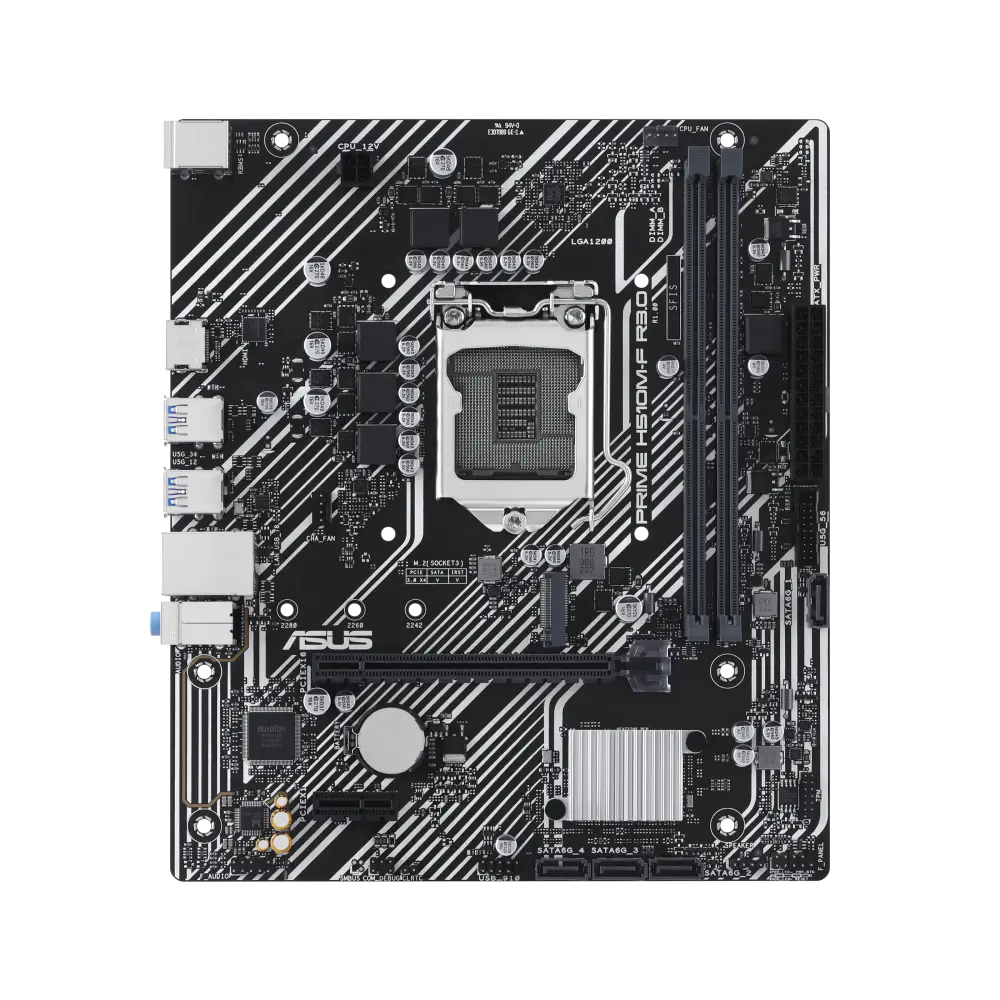

ASUS PRIME H510M-F R3.0-CSMGlobal manufacturer specification · PRIME H510M-F R3.0-CSMCompare the two
