MOTHERBOARDS
ASUS B760M-AYW PRO WIFI-CSM
Global manufacturer specification
- CPU socket
- LGA1700
- Chipset
- Intel® B760 Chipset
- Form factor and dimensions
- micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
B760M-AYW PRO WIFI-CSM motherboard, identified in the ASUS Global catalogue. Specifications below retain the manufacturer’s configuration and interface conditions.
Prices & buying options
As an Amazon Associate I earn from qualifying purchases.
Price alert
Email me when the ASUS B760M-AYW PRO WIFI-CSM gets cheaper on eBay. We check exact-model listings once a day at 12:00 UTC.
THE ACTUAL PRODUCT
Compare with ASUS B760M MAX GAMING WIFI
Specifications checked 17 Oct 2026Manufacturer specifications, not a hands-on test.
The nearest checked motherboards by key specifications, with what differs from the ASUS B760M-AYW PRO WIFI-CSM. The first matches the Compare button above.
ASUS B760M MAX GAMING WIFIUK manufacturer specification · B760M MAX GAMING WIFI
ASUS PRIME B760-PLUS D4UK manufacturer specification · PRIME B760-PLUS D4- Form factor and dimensions
- ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )This one: micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
ASUS PRIME B760-PLUSUK manufacturer specification · PRIME B760-PLUS- Form factor and dimensions
- ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )This one: micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
Key strengths
Published motherboard interfaces and configuration are available from the exact-model ASUS specification source.
Before you buy
Compatibility and maximum operating modes depend on the source’s stated hardware, firmware and connection requirements; manufacturer figures are not independent measurements.
Works with
Products in this catalogue that list the same socket or memory type as the ASUS B760M-AYW PRO WIFI-CSM. A shared socket or memory type is necessary but not sufficient: check the exact CPU and memory support lists, and the BIOS version, before buying.
- 2 LGA1700 processorsSocket LGA1700 on both, from cited specifications
- 50 DDR5 memory kitsMemory type DDR5 on both, from cited specifications
Every specification. With its source.
Full specifications
Exact configuration: Global manufacturer specification · B760M-AYW PRO WIFI-CSM
13 specifications in 9 groups. Values are manufacturer specifications unless a row says “Measured result” or “Calculated from cited specifications”.
Platform & board
3 items
Memory
1 item
- Memory type, slots and limit
- 2 x DIMM slots, max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Source
Expansion slots
1 item
- Expansion slots and restrictions
- Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.Source
Storage
1 item
- Storage interfaces and restrictions
- Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1.Source
USB & rear connections
2 items
- USB ports and headers
- Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 portsSource
- Rear-panel ports
- 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacksSource
Networking
1 item
- Network interfaces and requirements
- 1 x Realtek 2.5Gb Ethernet; Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.Source
Audio
1 item
- Audio interfaces
- Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Source
Power, cooling & lighting
1 item
- Internal headers and connectors
- Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin Front System Panel headerSource
BIOS, software & diagnostics
2 items
- CPU support and BIOS requirements
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Exact CPU support and BIOS revision depend on the processor and the current ASUS CPU support list; the family statement is not a guarantee for every processor.
Source - Listed operating systems
- Windows® 11, Windows® 10 64-bitSource
Compare with another motherboard
More of the nearest checked motherboards by key specifications, for a side-by-side comparison.
ASUS B760M-AYW PRO WIFIUK manufacturer specification · B760M-AYW PRO WIFICompare the two

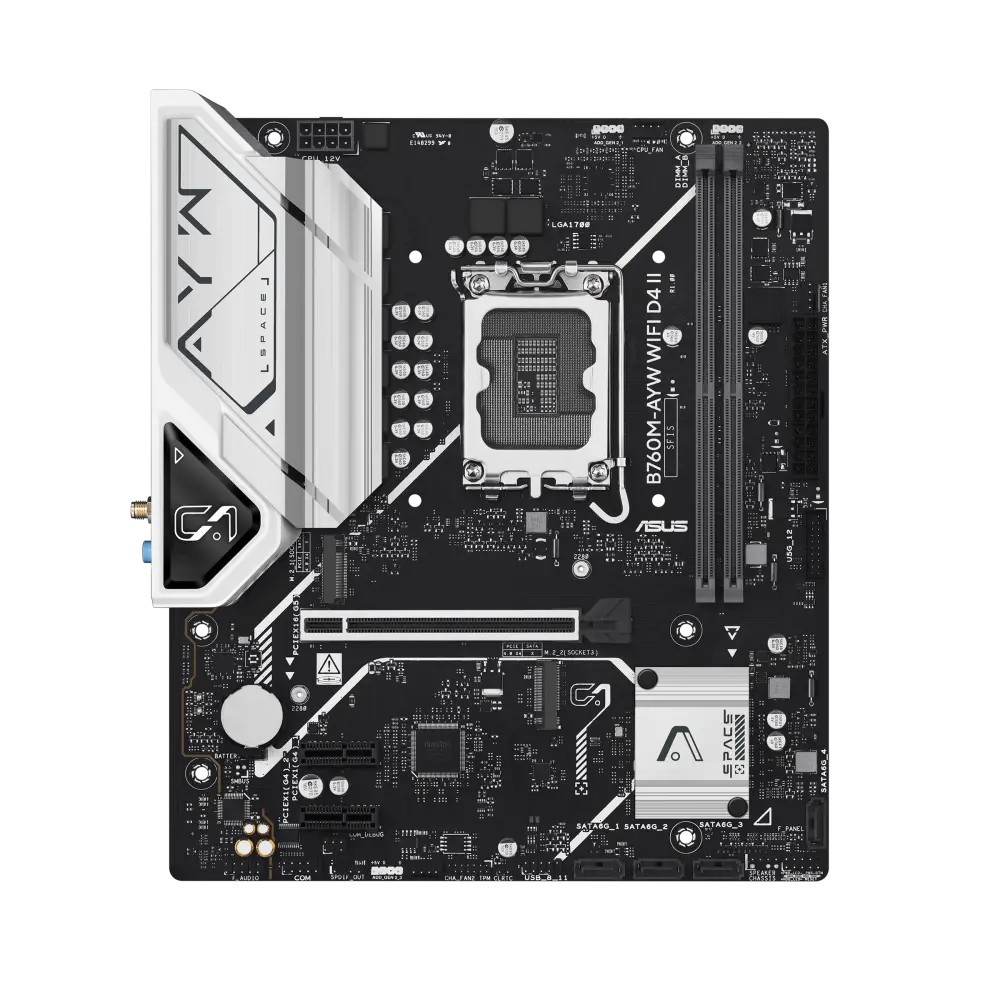

ASUS B760M-AYW WIFI D4 IIUK manufacturer specification · B760M-AYW WIFI D4 IICompare the two

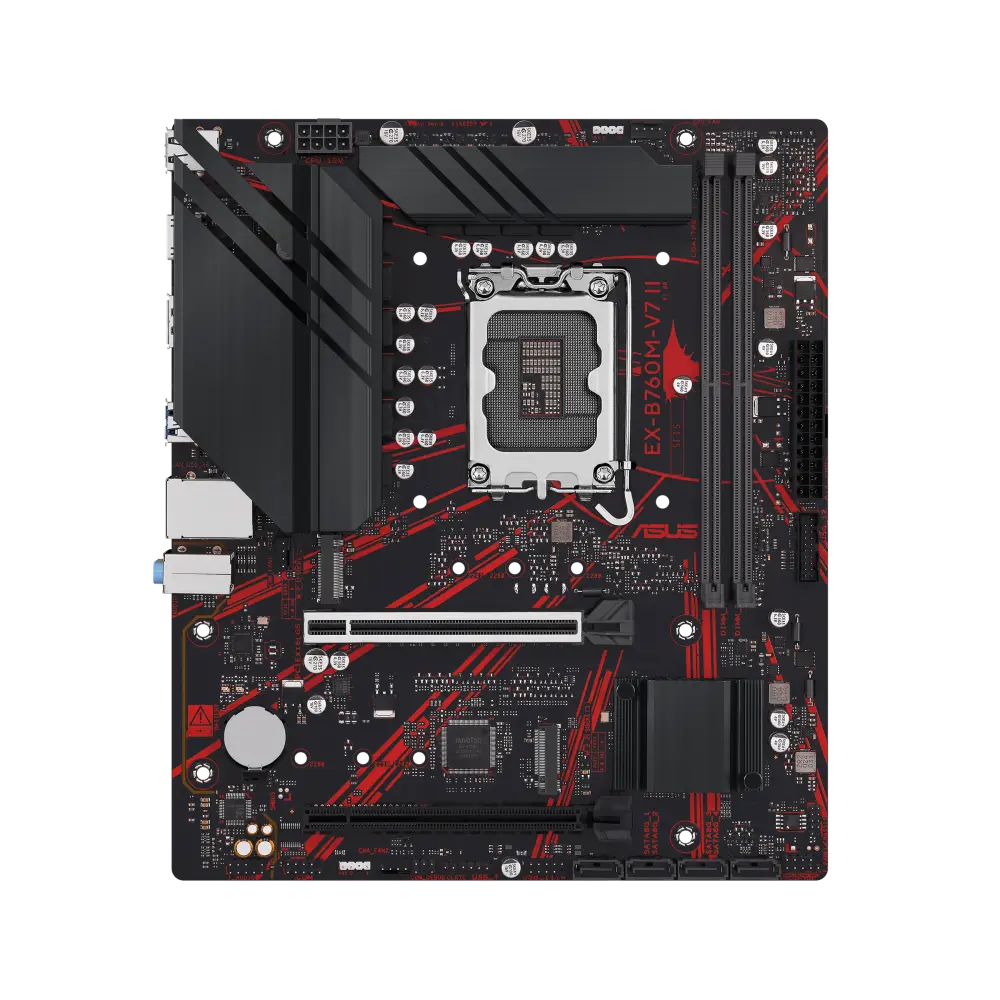

ASUS EX-B760M-V7 IIUK manufacturer specification · EX-B760M-V7 IICompare the two

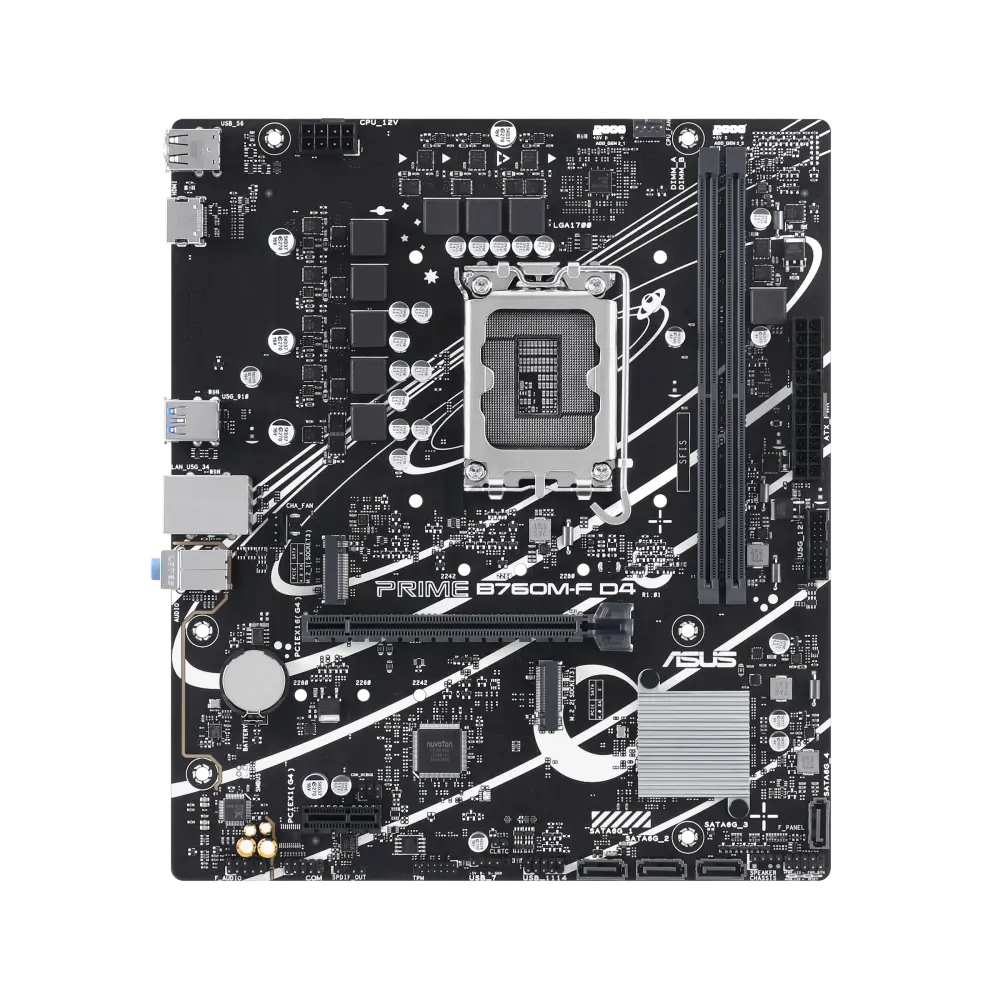

ASUS PRIME B760M-F D4UK manufacturer specification · PRIME B760M-F D4Compare the two
ASUS PRIME B760M-F WIFI-CSMUK manufacturer specification · PRIME B760M-F WIFI-CSMCompare the two
ASUS PRIME B760M-F WIFIUK manufacturer specification · PRIME B760M-F WIFICompare the two

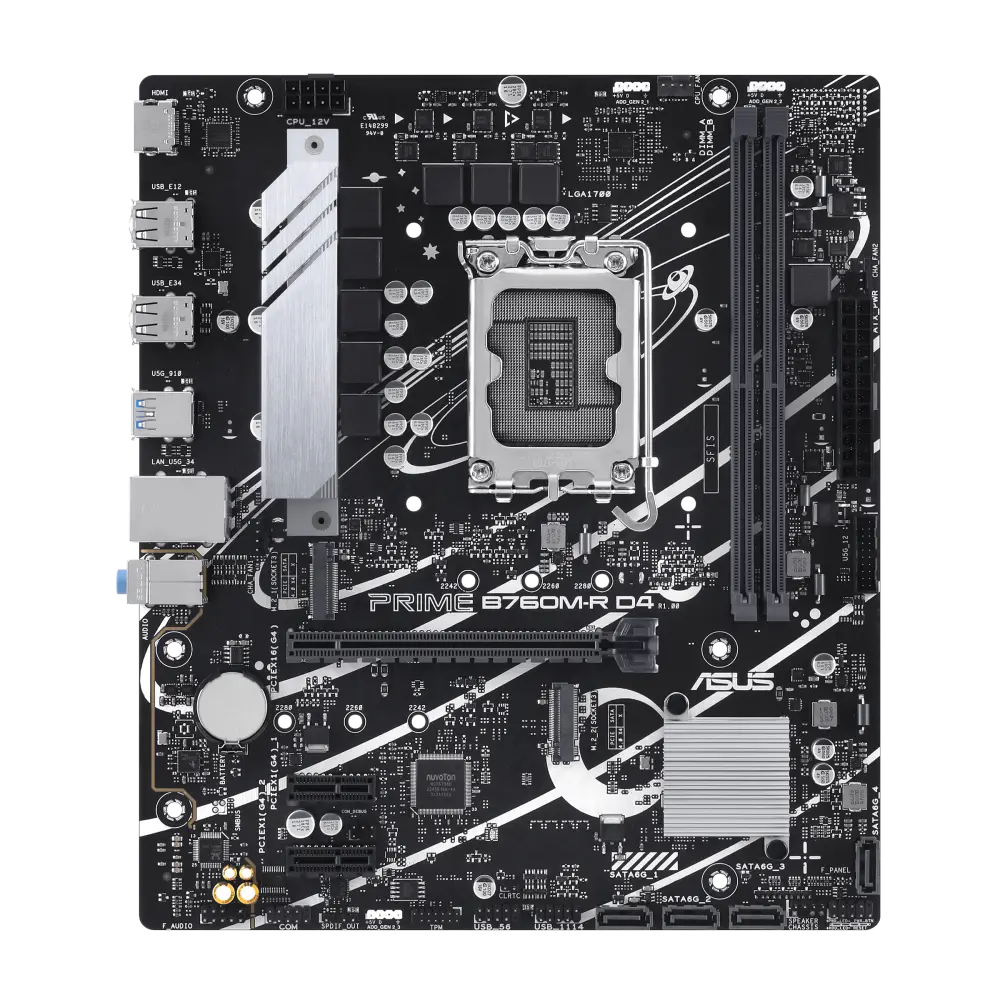

ASUS PRIME B760M-R D4UK manufacturer specification · PRIME B760M-R D4Compare the two

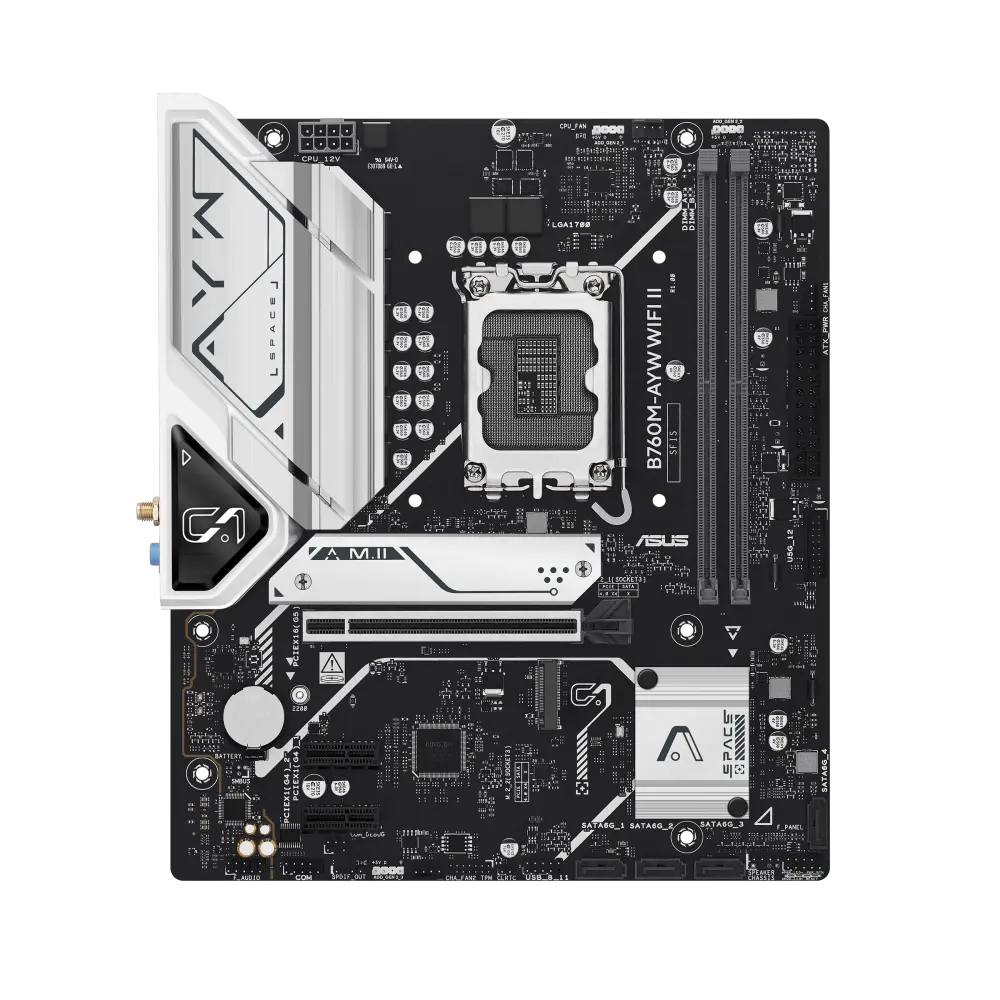

ASUS B760M-AYW WIFI IIGlobal manufacturer specification · B760M-AYW WIFI IICompare the two
