Home2 TB · bare M.2 2280 module · MZ-V9S2T0
A 2 TB NVMe module for a compatible M.2 slot, using host-memory caching.
Reviewed 06/09/2026.
Amazon links open search results. Check the exact variant, current price and availability with the retailer.
Manufacturer specificationsDifferent details.
A better fit for you.

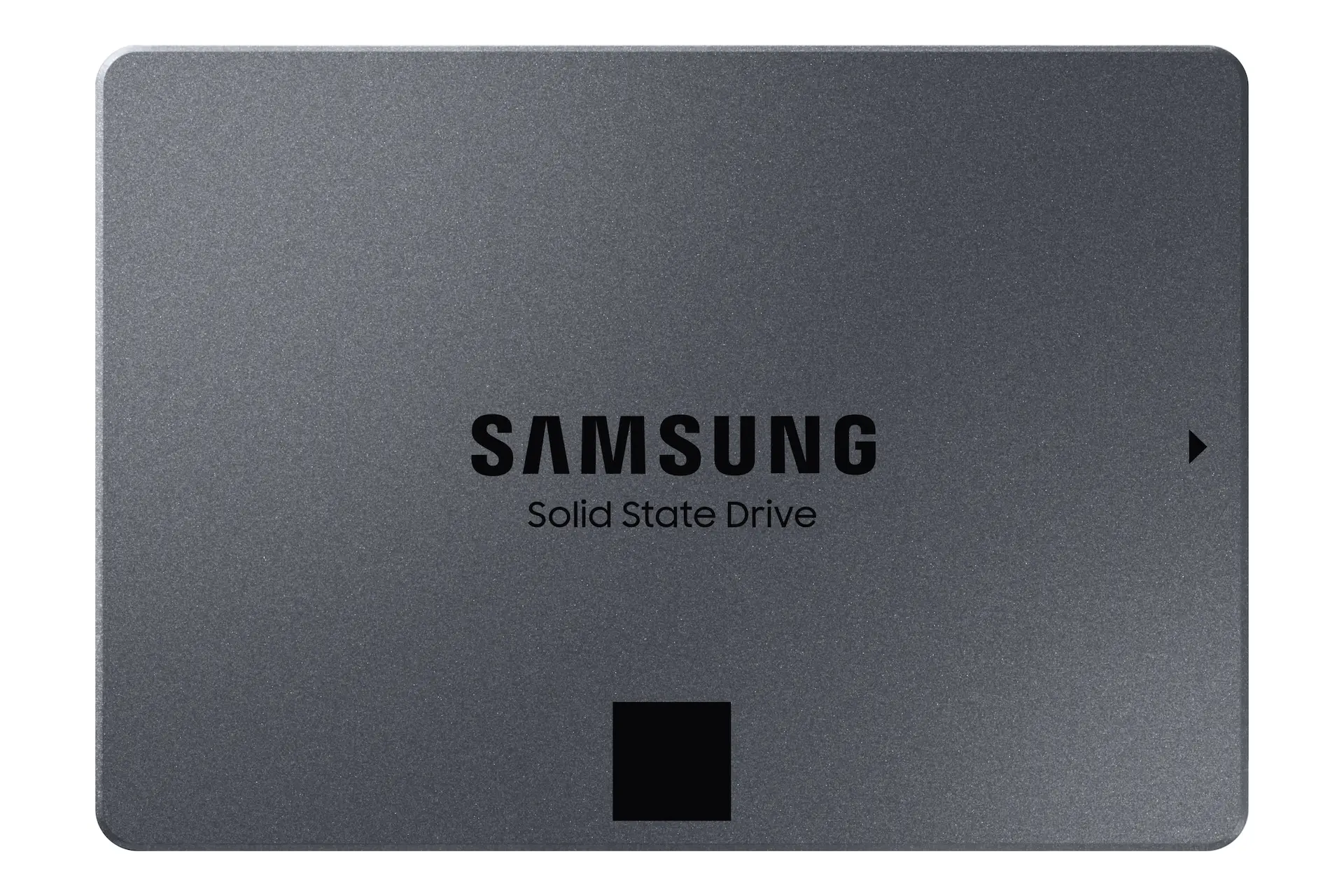

8 TB · 2.5-inch SATA drive · MZ-77Q8T0
An 8 TB SATA SSD for a compatible 2.5-inch bay, with separate data and power connectors.
Reviewed 06/09/2026.
Amazon links open search results. Check the exact variant, current price and availability with the retailer.
Manufacturer specificationsAs an Amazon Associate I earn from qualifying purchases.
6 TB apart
Decimal storage capacity: 1 TB = 1,000 GB. Formatting and system use reduce available space.
Samsung 990 EVO Plus: Manufacturer specification · Decimal capacity; formatted usable space is lower.
Samsung 870 QVO: Manufacturer specification · Decimal capacity; formatted usable space is lower.
2 years apart
The limited warranty ends at the time limit or write threshold, whichever comes first. This is not expected lifespan; eligibility and full terms apply.
Samsung 990 EVO Plus: Manufacturer specification · Time limit, not a lifespan prediction. Coverage also ends at the TBW threshold; eligibility and full terms apply.
Samsung 870 QVO: Manufacturer specification · Time limit, not a lifespan prediction. Coverage also ends at the TBW threshold; eligibility and full terms apply.
1,680 TB apart
Total data written under the stated warranty threshold. More capacity can raise this limit without extending the warranty period. It is not a predicted failure point.
Samsung 990 EVO Plus: Manufacturer specification · Warranty write threshold for this capacity; not a guaranteed failure point.
Samsung 870 QVO: Manufacturer specification · Warranty write threshold for this capacity; not a guaranteed failure point.
Check the connection before the capacity. M.2 NVMe modules and 2.5-inch SATA drives are not interchangeable. Check the host’s protocol, slot or bay, power connection and clearance. Rated speeds use different test systems; we do not turn them into a speed score or overall winner.
| Specification | Samsung 990 EVO Plus | Samsung 870 QVO |
|---|---|---|
| Capacity | 2000 GBManufacturer specification · Decimal capacity; formatted usable space is lower.Source | 8000 GBManufacturer specification · Decimal capacity; formatted usable space is lower.Source |
| SSD / HDD | SSDManufacturer specificationSource | SSDManufacturer specificationSource |
| Interface and version | PCIe 4.0 x4 / PCIe 5.0 x2; NVMe 2.0Manufacturer specificationSource | SATA 6 Gb/s; also supports SATA 3 Gb/s and 1.5 Gb/sManufacturer specificationSource |
| Form factor | M.2 2280Manufacturer specificationSource | 2.5-inchManufacturer specificationSource |
| Dimensions including heatsink | Maximum 80.15 × 22.15 × 2.38 mm; no factory heatsinkManufacturer specificationSource | 100 × 69.85 × 6.8 mmManufacturer specificationSource |
| Rated performance and conditions | Up to 7250 MB/s read; 6300 MB/s writeManufacturer specification · Samsung IOmeter 1.1.0 claims: Ryzen 9 7950X, X670E Taichi, Windows 11 Pro. Writes use Intelligent TurboWrite; results depend on firmware, workload and host.Source | Up to 560 MB/s read; 530 MB/s cached write; 160 MB/s after TurboWriteManufacturer specification · Samsung CrystalDiskMark 5.0.2 claims: Core i7-7700K, Z270-A, Windows 10 Pro. The 160 MB/s after-cache figure applies to 2/4/8 TB, not the 1 TB model.Source |
| Warranty terms and endurance if applicable | 5 years or 1200 TB written, whichever comes first; Samsung limited-warranty terms applyManufacturer specificationSource | 3 years or 2880 TB written, whichever comes first; Samsung limited-warranty terms applyManufacturer specification · Warranty eligibility depends on the purchased retail product and full terms.Source Source |
| Limited warranty time | 5 yearsManufacturer specification · Time limit, not a lifespan prediction. Coverage also ends at the TBW threshold; eligibility and full terms apply.Source | 3 yearsManufacturer specification · Time limit, not a lifespan prediction. Coverage also ends at the TBW threshold; eligibility and full terms apply.Source Source |
| Warranty write threshold | 1200 TBManufacturer specification · Warranty write threshold for this capacity; not a guaranteed failure point.Source | 2880 TBManufacturer specification · Warranty write threshold for this capacity; not a guaranteed failure point.Source |
| NAND type | Samsung V-NAND TLCManufacturer specificationSource | Samsung V-NAND QLC (4-bit MLC)Manufacturer specificationSource |
| Cache arrangement | Host Memory Buffer (HMB)Manufacturer specificationSource | 8 GB LPDDR4 DRAMManufacturer specificationSource |
Shading means different, not better. Missing fields are excluded from “differences only”. Specifications alone do not establish real-world performance or compatibility.
As an Amazon Associate I earn from qualifying purchases.
2 admitted products · source-backed specifications
2 TB · bare M.2 2280 module · MZ-V9S2T0
8 TB · 2.5-inch SATA drive · MZ-77Q8T0
Each record represents an explicitly checked model and configuration. Original import: 05/09/2026; this is not its verification date. This is not a list of current offers or a popularity ranking.
